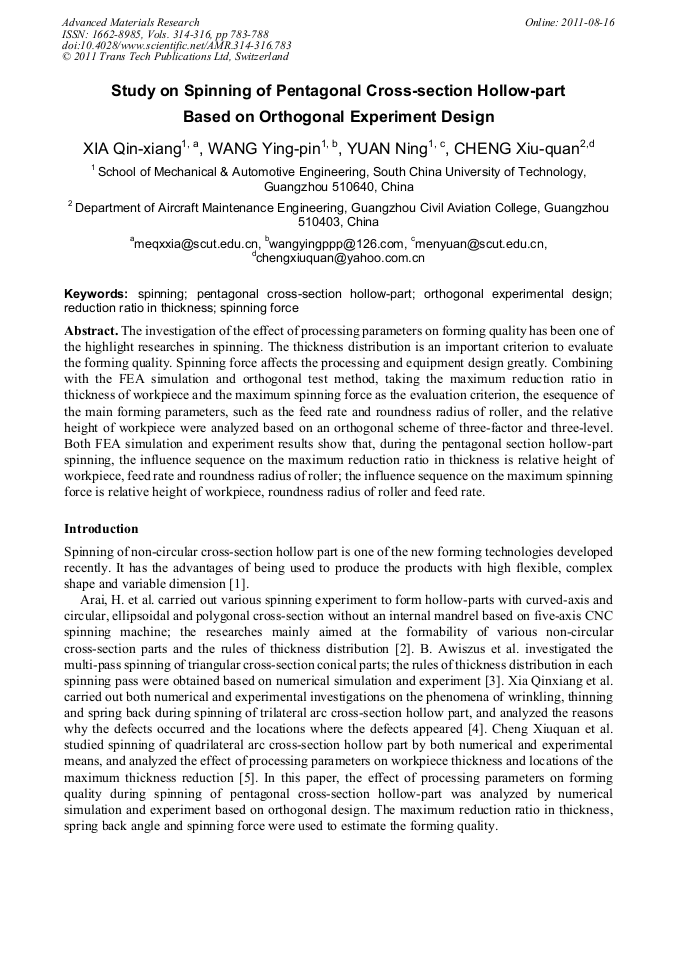

Study on Spinning of Pentagonal Cross-Section Hollow-Part Based on Orthogonal Experiment Design

Abstract:

The investigation of the effect of processing parameters on forming quality has been one of the highlight researches in spinning. The thickness distribution is an important criterion to evaluate the forming quality. Spinning force affects the processing and equipment design greatly. Combining with the FEA simulation and orthogonal test method, taking the maximum reduction ratio in thickness of workpiece and the maximum spinning force as the evaluation criterion, the esequence of the main forming parameters, such as the feed rate and roundness radius of roller, and the relative height of workpiece were analyzed based on an orthogonal scheme of three-factor and three-level. Both FEA simulation and experiment results show that, during the pentagonal section hollow-part spinning, the influence sequence on the maximum reduction ratio in thickness is relative height of workpiece, feed rate and roundness radius of roller; the influence sequence on the maximum spinning force is relative height of workpiece, roundness radius of roller and feed rate.

• Periodical: Advanced Materials Research (Volumes 314-316)
• Pages: 783-788
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.314-316.783
• Online since: August 2011
• Authors: Qin Xiang Xia, Ying Pin Wang, Ning Yuan, Xiu Quan Cheng
• Keywords: Orthogonal Experimental Design, Pentagonal Cross-Section Hollow-Part, Reduction Ratio in Thickness, Spinning, Spinning Force

References

[1] Q.X. Xia, S.B. Zhang, X.X. Zhan and X.Q. Cheng: Modern Manufacture Engineer, No.6 (2008): pp.8-11, 69 (in Chinese).

[2] A. Sekiguchi and H. Arai: International Journal of Steel Research. Vol. 81, No. 9 (2010), pp.1010-1013．

[3] S. Hartel and B. Awiszus: International Journal of Steel Research. Vol. 81, No. 9 (2010), pp.998-1001．

[4] Q.X. Xia, X.Y. Wu, X.B. Zhang and X.Q. Cheng: Journal of South China University of Technology. Vol. 38, No.6 (2010), pp.100-106 (in Chinese).

[5] X.Q. Cheng, X.Y. Wu and Q.X. Xia: The 5th conference on plasticity engineering of Pan-Pearl River Delta (2010.8, DeYang), pp.60-64 (in Chinese).

[6] Q.X. Xia, P. Zhang, X.Y. Wu and X.Q. Cheng: 2011 International Conference on Mechanical, Industrial, and Manufacturing Engineering (MIME 2011), Australia, Melbourne, 15-16, Jan, 2011: pp.17-20

[7] C.H. Wang and K.Z. Liu: spinning technology (Mechanical Industry Publications, Beijing 1986) (in Chinese).

[8] Q.X. Xia, W.L. Feng, Y. Hu and F. Ruan: The 3rd Chin-Japan Conference on Mechatronics, Sep.11, 2006, Fuzhou, FuJian Science & Technology Publishing House: P330-333

[9] X.Q. Cheng, J.H. Chen, Q.X. Xia and S.J. Zhang: Journal of Plasticity Engineering, 14 (2007), pp.38-42, 47 (in Chinese).
