Modeling, Fabrication, and Characterization of Planar Inductors on YIG Substrates

Abstract:

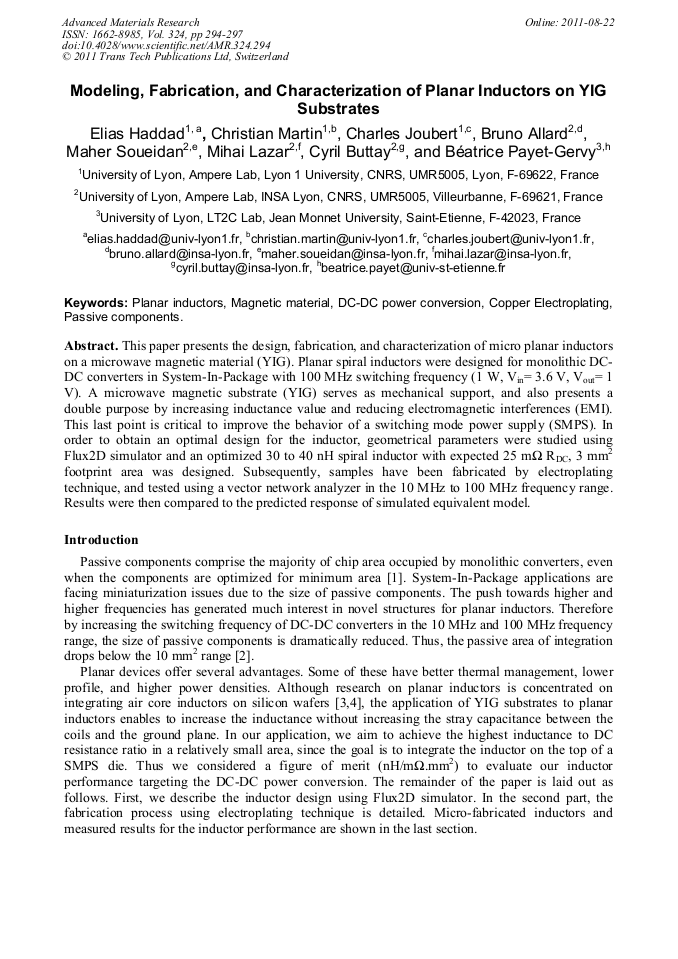

This paper presents the design, fabrication, and characterization of micro planar inductors on a microwave magnetic material (YIG). Planar spiral inductors were designed for monolithic DC-DC converters in System-In-Package with 100 MHz switching frequency (1 W, V_in= 3.6 V, V_out= 1 V). A microwave magnetic substrate (YIG) serves as mechanical support, and also presents a double purpose by increasing inductance value and reducing electromagnetic interferences (EMI). This last point is critical to improve the behavior of a switching mode power supply (SMPS). In order to obtain an optimal design for the inductor, geometrical parameters were studied using Flux2D simulator and an optimized 30 to 40 nH spiral inductor with expected 25 mΩ R_DC, 3 mm² footprint area was designed. Subsequently, samples have been fabricated by electroplating technique, and tested using a vector network analyzer in the 10 MHz to 100 MHz frequency range. Results were then compared to the predicted response of simulated equivalent model.
