ABS Fabrics Chemically Plated by Cu/Ni-P as Electromagnetic Shielding Material

Abstract:

In this paper, a novel composite material of Acrylonitrile-Butadlene-Styrene resin (ABS)-based fabric coated with Cu/Ni-P was prepared via chemical redox plating technique. A series of such composite materials with varying thickness of Cu and Ni-P showed remarkable electromagnetic shielding ability. With the increase of Cu thickness, the shielding effect (SE) was increased gradually, but leveled off after 1.5μm at a SE of about 70dB. Similarly, with the increase of the depth of Ni-P coats, the SE increased gradually, and leveled off after 1.0μm at a SE of about 45dB. The optimum ABS/Cu/Ni-P was Cu 1.5μm and Ni-P 1.0μm unilaterally. The ABS/Cu/Ni-P composite material possessed excellent shielding ability in the range of 0.001-1000MHz at a stable SE of >80dB, and it also possessed ideal shielding effect in the range of >36GHz. But in the range of 10-18GHz, the shielding effect is slightly decreased gradually to about 60dB. So the ABS/Cu/Ni-P fabric composite is an ideal candidate for electromagnetic shielding material at low and high frequency radiations.

You might also be interested in these eBooks

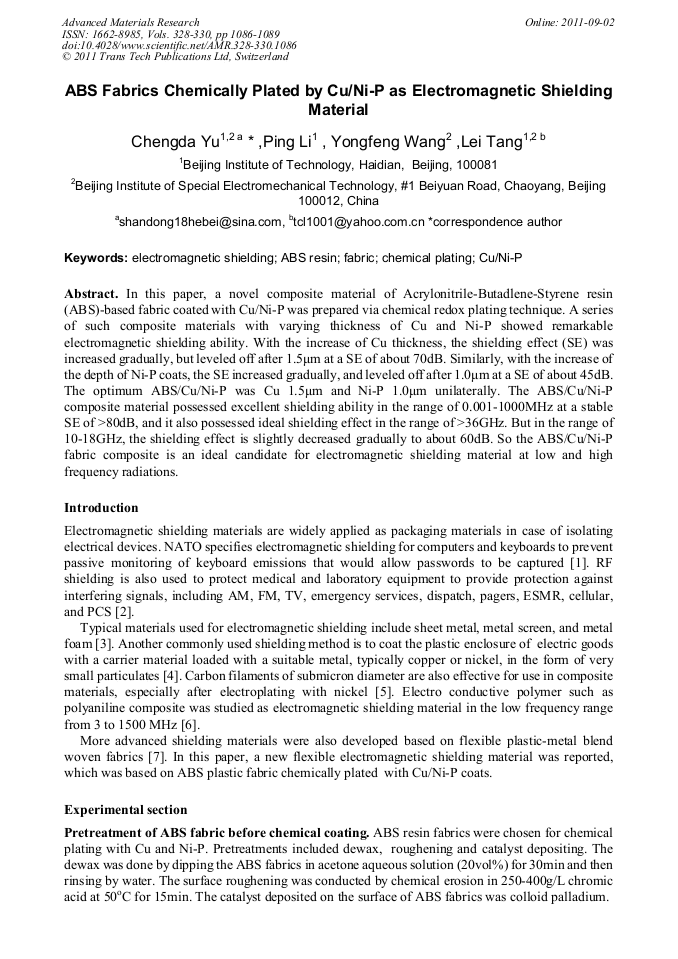

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 328-330)

Pages:

1086-1089

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.328-330.1086

Citation:

Cite this paper

Online since:

September 2011

Authors:

Cheng Da Yu, Ping Li, Yong Feng Wang, Lei Tang

Keywords:

ABS Resin, Chemical Plating, Cu/Ni-P, Electromagnetic Shielding, Fabric

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] M. Vuagnoux and Sylvain Pasini. Compromising Electromagnetic Emanations of Wired and Wireless Keyboards. Security and Cryptography Laboratory (Lausanne, 2009).

Google Scholar

[2] Information on http: /en. wikipedia. org/wiki/Electromagnetic_shielding.

Google Scholar

[3] V. K. Varadan, V. V. Varadan, N. R. Williams and J. W. Cresko, U. S. Patent 5, 366, 664. (1994).

Google Scholar

[4] J. Pittsford, W. Palmyra and C. Lima, U. S. Patent 5, 045, 635. (1991).

Google Scholar

[5] D.D.L. Chung: Carbon Vol. 39(2) (2001), p.279.

Google Scholar

[6] Y. Duan, S. Liu and H. Guan: Sci. Technol. Adv. Mater. Vol. 6 (2005), p.513.

Google Scholar

[7] K. B. Cheng, M. L. Lee, S. Ramakrishna and T. H. Ueng: Textile Research Journal Vol. 71 (2001), p.142.

Google Scholar
