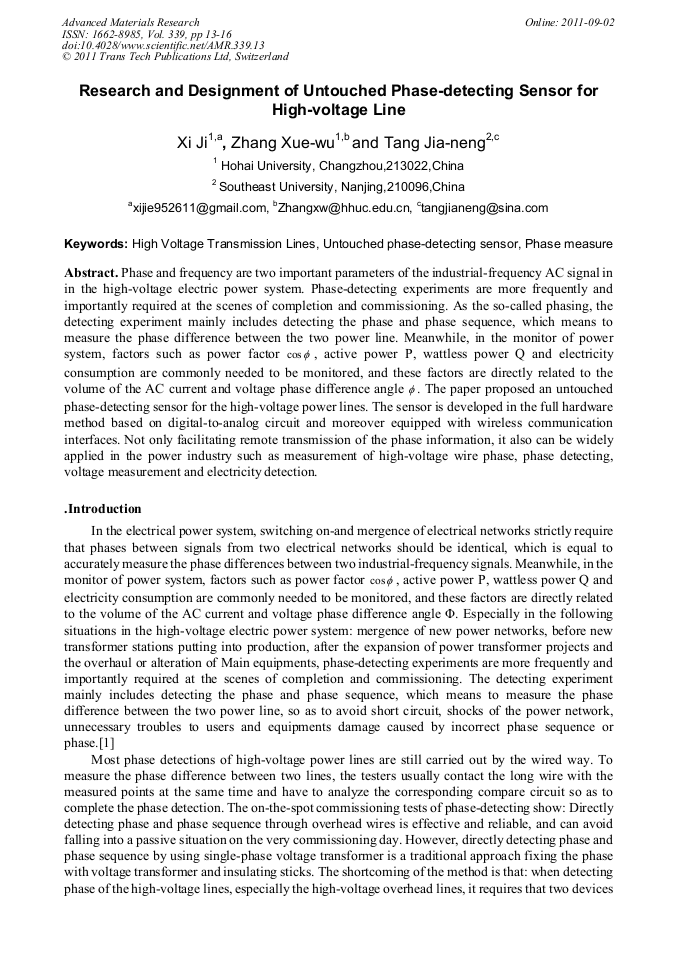

Research and Designment of Untouched Phase-Detecting Sensor for High-Voltage Line

Abstract:

Phase and frequency are two important parameters of the industrial-frequency AC signal in in the high-voltage electric power system. Phase-detecting experiments are more frequently and importantly required at the scenes of completion and commissioning. As the so-called phasing, the detecting experiment mainly includes detecting the phase and phase sequence, which means to measure the phase difference between the two power line. Meanwhile, in the monitor of power system, factors such as power factor , active power P, wattless power Q and electricity consumption are commonly needed to be monitored, and these factors are directly related to the volume of the AC current and voltage phase difference angle . The paper proposed an untouched phase-detecting sensor for the high-voltage power lines. The sensor is developed in the full hardware method based on digital-to-analog circuit and moreover equipped with wireless communication interfaces. Not only facilitating remote transmission of the phase information, it also can be widely applied in the power industry such as measurement of high-voltage wire phase, phase detecting, voltage measurement and electricity detection

• Periodical: Advanced Materials Research (Volume 339)
• Pages: 13-16
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.339.13
• Online since: September 2011
• Authors: Xi Ji, Xue Wu Zhang, Jia Neng Tang
• Keywords: High Voltage Transmission Line, Phase Measure, Untouched Phase-Detecting Sensor

References

[1] Jou H.L.，Wu J.C.. Fast response phase detector for phase locked loop[J]. International Journal of Electronics，1995，78:557~562.

DOI: 10.1080/00207219508926188

[2] Laopoulos T.L. Karybakas,C.. Sample-and-hold phase-frequency detector for phase locked motor control systems[J].International Journal of Electronics，1985，59:231~234.

DOI: 10.1080/00207218508920697

[3] Micheletti R.Phase angle measurement between two sinusoidal signal[J].IEEE Trans. Instrum.Meas.,1991,40(1).

DOI: 10.1109/19.69948

[4] A.G. Phadke etal.A New Measurement Technique FOR Tracking Voltagephsors[J].Local System Frequency,Vol.Pas－102,No.5,May 1983.

[6] M.S. Sachder,M M Giray.A Least Error Suares Technique for Determing Power System Frequency[J].Ieee Trans on Pas Vol.Pas－104,No 2,February 1985.

DOI: 10.1109/tpas.1985.319059

[7] ZhangJinBo, LiWei, WangJun. Study of Wireless Measurement of Phase of High Voltage Electric Power System[J]. Conference Proceeding of the Seventh International Conference on Electronic Measuremenl &Instruments，2005，5:384~387.

[8] R.W. Hamming.Coding and Information Theory[M].Rrentice-Hall,1980.
