Electrochemical Properties of Li-Riched Li[Li0.2Co0.4Mn 0.4]O2 Cathode Material for Lithium Ion Batteries

Zhe Li; Kai Zhu; Yu Hui Wang; Gang Li; Gang Chen; Hong Chen; Ying Jin Wei; Chun Zhong Wang

doi:10.4028/www.scientific.net/AMR.347-353.3658

Paper Titles

Activated Carbon Fiber Supported PtRu Hollow Nanospheres and PtRu Nanoparticles for Methanol Electrooxidation
p.3641

Activated Carbon Modified by Adhesion Promoter for Supercapacitor
p.3645

Activated Carbon Modified by Titanate Coupling Agent for Supercapacitor
p.3649

Study on the Variation of Fractal and Mutifractal Characteristics of Coal Particles in the Ultra-Fine Pulverizing Process
p.3653

Electrochemical Properties of Li-Riched Li[Li_0.2Co_0.4Mn _0.4]O₂ Cathode Material for Lithium Ion Batteries
p.3658

Low-Temperature Performance of the Li[Li_0.2Co_0.4Mn_0.4]O₂ Cathode Material Studied for Li-Ion Batteries
p.3662

A Study on Optical and Electrical Properties of Solar Cells of a-Si_1-XGe_X:H
p.3666

Alkylation of Benzene with Ethanol on Zeolites Modified with La₂O₃
p.3670

Study of Catalytic Reduction of Formic Acid to Methanol under Mild Hydrothermal Conditions
p.3677

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 347-353Electrochemical Properties of Li-Riched...

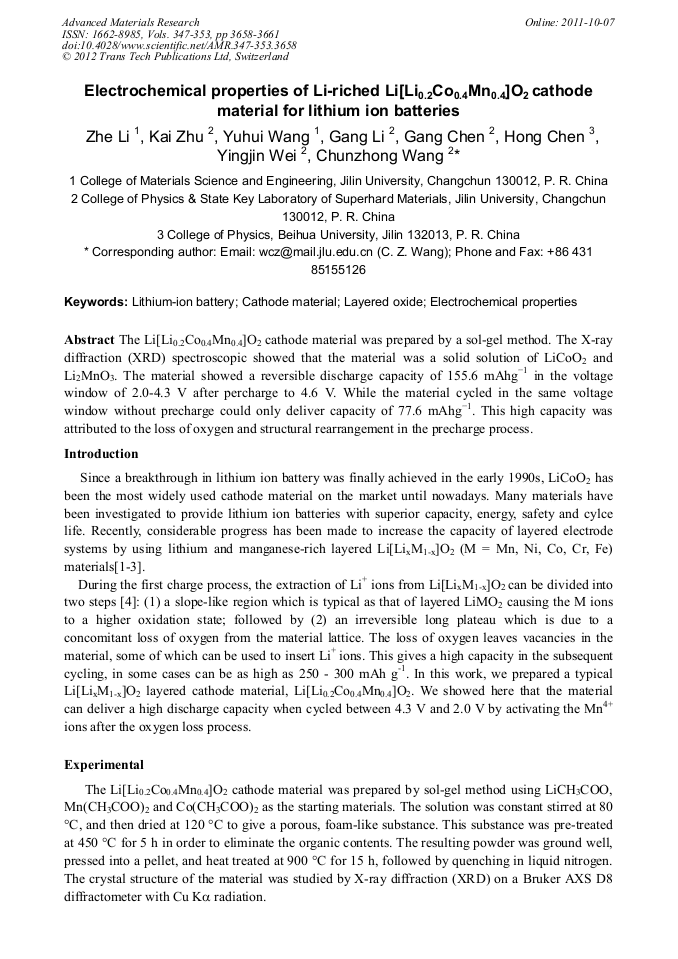

Electrochemical Properties of Li-Riched Li[Li_0.2Co_0.4Mn _0.4]O₂ Cathode Material for Lithium Ion Batteries

Abstract:

The Li[Li0.2Co0.4Mn0.4]O2 cathode material was prepared by a sol-gel method. The X-ray diffraction (XRD) spectroscopic showed that the material was a solid solution of LiCoO2 and Li2MnO3. The material showed a reversible discharge capacity of 155.6 mAhg−1 in the voltage window of 2.0-4.3 V after percharge to 4.6 V. While the material cycled in the same voltage window without precharge could only deliver capacity of 77.6 mAhg−1. This high capacity was attributed to the loss of oxygen and structural rearrangement in the precharge process.
