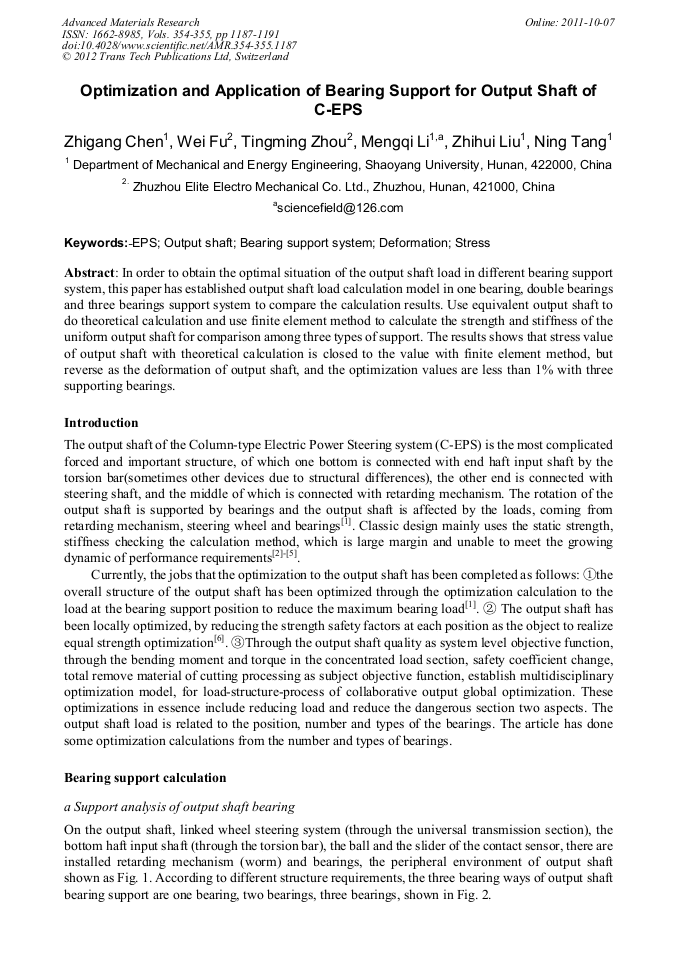

Optimization and Application of Bearing Support for Output Shaft of C-EPS

Abstract:

In order to obtain the optimal situation of the output shaft load in different bearing support system, this paper has established output shaft load calculation model in one bearing, double bearings and three bearings support system to compare the calculation results. Use equivalent output shaft to do theoretical calculation and use finite element method to calculate the strength and stiffness of the uniform output shaft for comparison among three types of support. The results shows that stress value of output shaft with theoretical calculation is closed to the value with finite element method, but reverse as the deformation of output shaft, and the optimization values are less than 1% with three supporting bearings.

• Periodical: Advanced Materials Research (Volumes 354-355)
• Pages: 1187-1191
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.354-355.1187
• Online since: October 2011
• Authors: Zhi Gang Chen, Wei Fu, Ting Ming Zhou, Meng Qi Li, Zhi Hui Liu, Ning Tang
• Keywords: Bearing Support System, Deformation, EPS, Output Shaft, Stress

References

[1] Chen Zhigang, Li Mengqi, Zhou Tingming, et al. Statically Indeterminate Optimization Analysis of Steering Column Load of EPS, Wuhan, APEE2011.

DOI: 10.1109/iceice.2011.5777144

[2] Deng Fei. Analysis and Research of Automobile Turning Pile Pillar Assembly Standard[J]. Standardization of Communications, 4, pp.9-13, 2008.

[3] Lu Xiaoyan. Dynamics Analysis of Electric Power Steering System. Chongqing: Chongqing Jiaotong University, 2010.

[4] Wang Qidong, Yang Xiaojian, Chen Wuwei, et al. Research on the Control of Electric Power Steering Considering the Dynamics and Inverse Dynamics. Chinese Journal Of Mechanical Engineering, Vol41,6, pp.108-112,2005.

DOI: 10.3901/jme.2005.06.108

[5] Liu Zhao. Research on Dynamic Analysis and Control Method of Electric Power Assisted Steering System for Vehicle. Wuhan: Huazhong University of Science and Technology, 2005.

[6] Chen Zhigang, Li Mengqi, Zhou Tingming, et al. Strength Optimization of the Output Shaft in EPS, Xianning, ICEICE2011.

[7] Chen Zhigang, Fu Wei, Zhou Tingming, et al. Multidisciplinary Design Optimization for output shaft in EPS Based on CO[J]. Journal of Central South University (Science and Technology), 2011.

[8] Liu Zejiu, He Shiquan, Liu Hui. The Application of Rolling Bearing[M].Beijing: China Machine Press,2007.

[9] Harri T.A., Kotzalas M.N. Advanced Concepts of Bearing Technology, Rolling Bearing Analysis(Fifth Edition). CRC Press, 2007.

DOI: 10.1201/9781420006582
