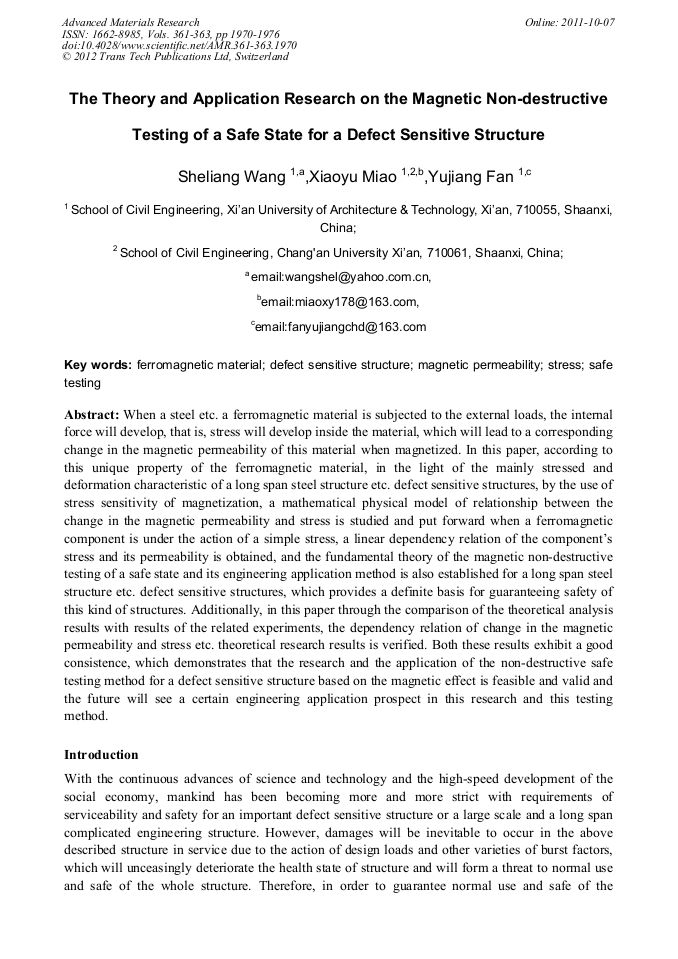

The Theory and Application Research on the Magnetic Non-Destructive Testing of a Safe State for a Defect Sensitive Structure

Abstract:

When a steel etc. a ferromagnetic material is subjected to the external loads, the internal force will develop, that is, stress will develop inside the material, which will lead to a corresponding change in the magnetic permeability of this material when magnetized. In this paper, according to this unique property of the ferromagnetic material, in the light of the mainly stressed and deformation characteristic of a long span steel structure etc. defect sensitive structures, by the use of stress sensitivity of magnetization, a mathematical physical model of relationship between the change in the magnetic permeability and stress is studied and put forward when a ferromagnetic component is under the action of a simple stress, a linear dependency relation of the component’s stress and its permeability is obtained, and the fundamental theory of the magnetic non-destructive testing of a safe state and its engineering application method is also established for a long span steel structure etc. defect sensitive structures, which provides a definite basis for guaranteeing safety of this kind of structures. Additionally, in this paper through the comparison of the theoretical analysis results with results of the related experiments, the dependency relation of change in the magnetic permeability and stress etc. theoretical research results is verified. Both these results exhibit a good consistence, which demonstrates that the research and the application of the non-destructive safe testing method for a defect sensitive structure based on the magnetic effect is feasible and valid and the future will see a certain engineering application prospect in this research and this testing method.

• Periodical: Advanced Materials Research (Volumes 361-363)
• Pages: 1970-1976
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.361-363.1970
• Online since: October 2011
• Authors: She Liang Wang, Xiao Yu Miao, Yu Jiang Fan
• Keywords: Defect Sensitive Structure, Ferromagnetic Material, Magnetic Permeability, Safe Testing, Stress

References

[1] L. Spigel, G.F. Limbrunner. Applied structural steel design. Prentice-Hall, New Jersey: 1997.

[2] H.S. Park, K.P. Hong, J.H. Seo. Drift design of steel-frame shear wall systems for tall buildings. Struct. Des. Tall Buildings, 2002, 11:35–49.

DOI: 10.1002/tal.187

[3] AISC, Manual of Steel Construction, Allowable Stress Design, American Institute of Steel Construction, Illinois, 1989.

[4] Vonsovskii, S.V. and Shur, Ya. S. Ferromagnetizm (Ferromagnetism), Moscow: OGIZ, (1948)

[5] Becker, R. and Döring, W. Ferromagnetismus (Ferromagnetism), Berlin: Springer, 1939.

[6] Bozorth, R. Ferromagnetism. Toronto: D. Van Nostrand, 1959.

[7] Tikazumi, S., Fizika ferromagnetizma. Magnitnye kharakteristiki i prakticheskie primeneniya (Physics of Ferro- magnetism.Magnetic Characteristics and Practical Applications), Moscow: Mir, (1987)

[8] L. Gros, G. Reyne, C. Body, G. Meunier. Strong coupling magneto mechanical methods applied to model heavy magneto-strictive actuators. Transactions on Magnetics, 1998, 34(5):3150-3153

DOI: 10.1109/20.717738

[9] G. Reyne(Sie), J.C. Sabonnadiere, et al. A survey of the main aspects of magnetic forces and mechanical behavior of ferromagneitc materials under magnetizaiton. IEEE Transactions on Magnetics, 1987, 23(5)

DOI: 10.1109/tmag.1987.1065518

[10] F.L iorzou, D.L. Atherton. Effects of compressive stress on a steel cube using tensor magnetization and magnetostriction analysis. Journal of Magnetism and Magnetic Matrials 1999, 195:174-181

DOI: 10.1016/s0304-8853(98)01156-1

[11] M. Besbes, Z. Ren and A. Razek. Finite element analysis of magneto-mechanical coupled phenomena in magnetostrictive materials. IEEE Transactions on Magnetics, 1996, 32(3):1058-1061

DOI: 10.1109/20.497423

[12] Jerzy Kaleta, Slawomir Tumanski, Jacek Zebracke. magnetoresistors as a tool for investigating the mechanical properties of ferromagnetic materials. Journal of Magnetism and Magnetic Materials, 1996, 160:199-200

DOI: 10.1016/0304-8853(96)00164-3

[13] Wang Sheliang , Wang Wei, Huang Xiangyun, Liu Ruijie. The research on the initial permeability and stress of ferromagnetic materials. Proc. of ISSEYE-8, Vol.1:463-468

[14] Wang Sheliang, Xi Kuantang, Zhao Xindong, Wang Zongrang. the research on the stress-sensing mechanism of magneto- strictive materials. Proc. of Third China-Japan-US Symposium, 159-162

[15] Wang Shaolin. Study on the on-line dectecting method of stress in ferromagnetic materials by using counter-magnetostriction effect. PH.D Thesis. Xuzhou: China University of Mining Industry, 1998(in Chinese)

[16] Wang Wei, Wang Sheliang, Su Sanqing. Experimental investigation on the effect of tension & compression stress on magnetic hysteresis loops for Q235 steel rods. Industrial Construction, 2005, 25(6):314-317(in Chinese)
