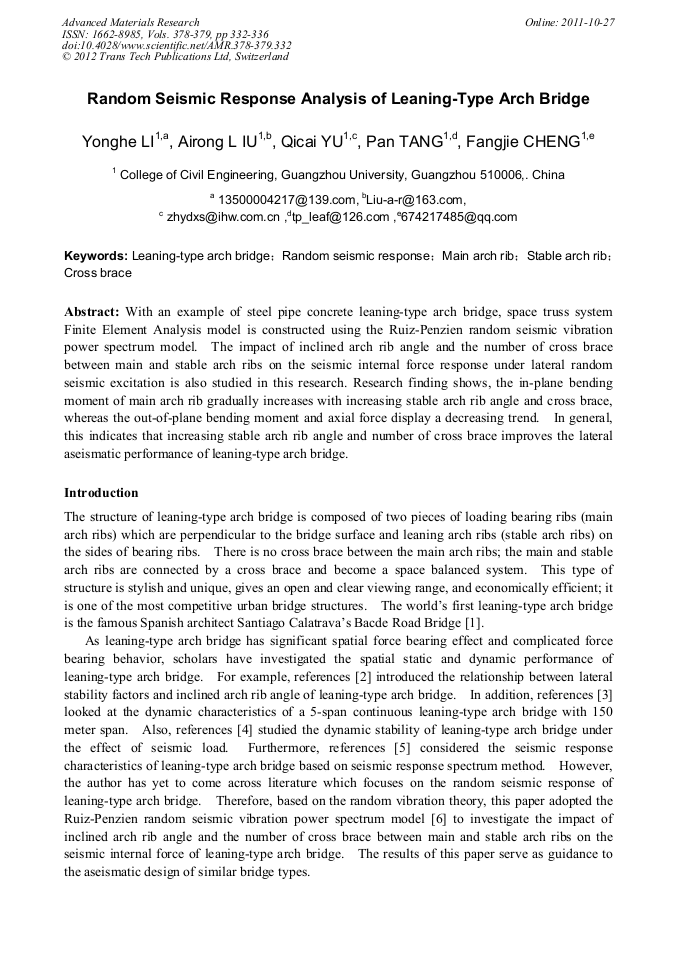

Random Seismic Response Analysis of Leaning-Type Arch Bridge

Abstract:

With an example of steel pipe concrete leaning-type arch bridge, space truss system Finite Element Analysis model is constructed using the Ruiz-Penzien random seismic vibration power spectrum model. The impact of inclined arch rib angle and the number of cross brace between main and stable arch ribs on the seismic internal force response under lateral random seismic excitation is also studied in this research. Research finding shows, the in-plane bending moment of main arch rib gradually increases with increasing stable arch rib angle and cross brace, whereas the out-of-plane bending moment and axial force display a decreasing trend. In general, this indicates that increasing stable arch rib angle and number of cross brace improves the lateral aseismatic performance of leaning-type arch bridge.

• Periodical: Advanced Materials Research (Volumes 378-379)
• Pages: 332-336
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.378-379.332
• Online since: October 2011
• Authors: Yong He Li, Ai Rong Liu, Qi Cai Yu, Pan Tang, Fang Jie Cheng
• Keywords: Cross Brace, Leaning-Type Arch Bridge, Main Arch Rib, Random Seismic Response, Stable Arch Rib

References

[1] Francisco,A. C. Acro colour thematic architecture. SA: Acro Editorial, 1989: 77-78.

[2] Chen Huai, Sun Yingtao. Variational sloping angle of arch rib influenced onthe stability of double X-shaped arch bridge [J]. China Journal of Railhway Science and Engineering, 2009, 6(1): 21~24.

[3] Chen Huai, Zhu Qian, LI Jing-bin. Influence of Structural Parameter Variation on Dynamic Characteristic of Leaning-type Arch Bridge [J]. China Journal of Highway and Transport, 2009, 22(1): 47-52.

[4] Liu Airong, Yu Qicai, Song Rui, Zhang Junping. Dynamic stability of leaning-type arch bridge under earthquake[J]. Journal of ShenZhen science and engineering, 2010, 27(3): 286~290.

[5] Liu Airong, Yu Qicai, Zhang Junping, Wang Dingwen,. Influence of variation of incline angle of inclined arch rib on the seismic response of leaning-type arch bridge[J]. Journal of Jinan university, 2010, 31(3): 268 ~ 272.

[6] RUIZ P, PENZIEN J. Probabilistic Study of the Behavior of Structures during Earthquakes [C]. Report No. EERC 69-03. California: Earthquake Engineering Center University of California, (1969).

[7] DING Yang, LIN Wei, LI Zhong-xian, Non-stationary random seismic analysis of long-span spatial structures under multi-support and multi-dimensional earthquake excitations[J]. Engineering Mechanics, 2007, 24(3): 6-14.
