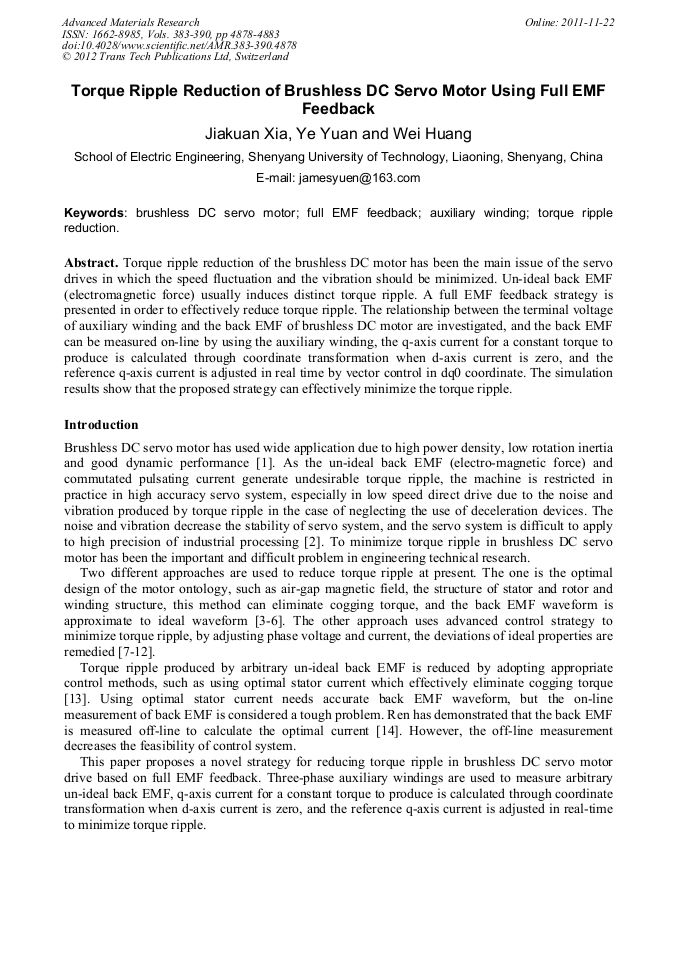

Torque Ripple Reduction of Brushless DC Servo Motor Using Full EMF Feedback

Abstract:

Torque ripple reduction of the brushless DC motor has been the main issue of the servo drives in which the speed fluctuation and the vibration should be minimized. Un-ideal back EMF (electromagnetic force) usually induces distinct torque ripple. A full EMF feedback strategy is presented in order to effectively reduce torque ripple. The relationship between the terminal voltage of auxiliary winding and the back EMF of brushless DC motor are investigated, and the back EMF can be measured on-line by using the auxiliary winding, the q-axis current for a constant torque to produce is calculated through coordinate transformation when d-axis current is zero, and the reference q-axis current is adjusted in real time by vector control in dq0 coordinate. The simulation results show that the proposed strategy can effectively minimize the torque ripple.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 4878-4883
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.4878
• Online since: November 2011
• Authors: Jia Kuan Xia, Ye Yuan, Wei Huang
• Keywords: Auxiliary Winding, Brushless DC Servo Motor, Full EMF Feedback, Torque Ripple Reduction

References

[1] Rubaai, A. Ofoli and M. Castro, dSPACE DSP-Based Rapid Prototyping of Fuzzy PID Controls for High Performance Brushless Servo Drives, The 41st IAS Annual Meeting of the IEEE Industry Applications Conference, IEEE Press, Oct. 2006, vol. 3, p.1360.

DOI: 10.1109/ias.2006.256707

[2] G. Mikerov Alexander, Brushless DC Torque Motors Quality Level Indexes for Servo Drive Applications, Proc. IEEE EUROCON 09, May. 2009, p.827–834.

DOI: 10.1109/eurcon.2009.5167730

[3] P. Upadhyay and K. R. Rajagopal, Torque Ripple Minimization of Interior Permanent Magnet Brushless DC Motor Using Rotor Pole Shaping, Proc. IEEE Power Electronics, Drives and Energy Systems (PEDES 06), IEEE Press, Dec. 2006, p.1–3.

DOI: 10.1109/pedes.2006.344369

[4] L. Parsa and H. Lei, Interior Permanent Magnet Motors with Reduced Torque Pulsation, IEEE Trans. Indusreial Electronics, Feb. 2008, vol. 55, no. 2, p.602–609.

DOI: 10.1109/tie.2007.911953

[5] D. H. Wang, X. H. Wang and T. T. Ding, Optimization for the Asymmetric Angles of Magnetic Pole to Reduce Cogging Torque in Inner-buried PM Brushless DC Motors, Proceedings of the CSEE, Mar. 2006, vol. 28, no. 9, p.66–70.

[6] M. S. Islam, S. Mir and T. Sebastian, Design Considerations of Sinusoidally Excited Permanent Magnet Machines for Low-torque-ripple Applications, IEEE Trans. Industry Applications, July-Aug. 2005, vol. 41, no. 4, p.955–962.

DOI: 10.1109/tia.2005.851026

[7] F. Song, B. Zhou and X. Q. Wu, Novel Compensation Method to Suppress Commutation Torque Ripple for Brushless DC Motor, Transactions of China Electrotechnical Society, Nov. 2008, vol. 23, no. 11, p.28–33.

[8] Y. Liu, Z. Q. Zhu and D. Howe, Commutation-Torque-Ripple Minimization in Direct-Torque-Controlled PM Brushless DC Drives, IEEE Trans. Industry Applications, July-Aug. 2007, vol. 43, no. 4, p.1012–1021.

DOI: 10.1109/tia.2007.900474

[9] S. S. Bharatkar, R. Yanamshetti and D. Chatterjee, Commutation Torque Ripple Analysis and Reduction Through Hybrid Switching for BLDC Motor Drives, IEEE Region 10 and the Third international Conference on Industrial and Information Systems (ICIIS 2008), IEEE Press, Dec. 2008, p.1.

DOI: 10.1109/iciinfs.2008.4798434

[10] P. Lin, K. Wei, Z.C. Zhang, A Novel Control Scheme to Suppress the Commutation Torque ripple in BLDCM, Proceedings of the CSEE, Feb. 2006, vol. 26, no. 3, p.153–158.

[11] K. Y. Nam, W. T. Lee and C. M. Lee, Reducing Torque Ripple of Brushless DC Motor by Varying Input Voltage, IEEE Trans. Magnetics, April. 2006, vol. 42, no. 4, p.1307–1310.

DOI: 10.1109/tmag.2006.871937

[12] H. F. Lu, L. Zhang and W. L. Qu, A New Torque Control Method for Torque Ripple Minimization of BLDC Motors With Un-Ideal Back EMF, IEEE Trans. Power Electronics, March. 2008, vol. 23, no. 2, p.950–958.

DOI: 10.1109/tpel.2007.915667

[13] W. Chen, C. L. Xia and M. Xue, A Torque Ripple Suppression Circuit for Brushless DC Motors Based on Power DC/DC Converters, IEEE the 3rd Industrial Electronics and Applications (ICIEA 2008), IEEE Press, June. 2008, p.1453–1457.

DOI: 10.1109/iciea.2008.4582760

[14] Z. B. Ren, Y. Ruan and Z. Li, Simulation and Research on Torque Ripple Reduction for BLDC Motors with Non-ideal Back EMF Waveforms, Electric Drive Automation, May. 2009, vol. 31, no. 5, p.1–5.
