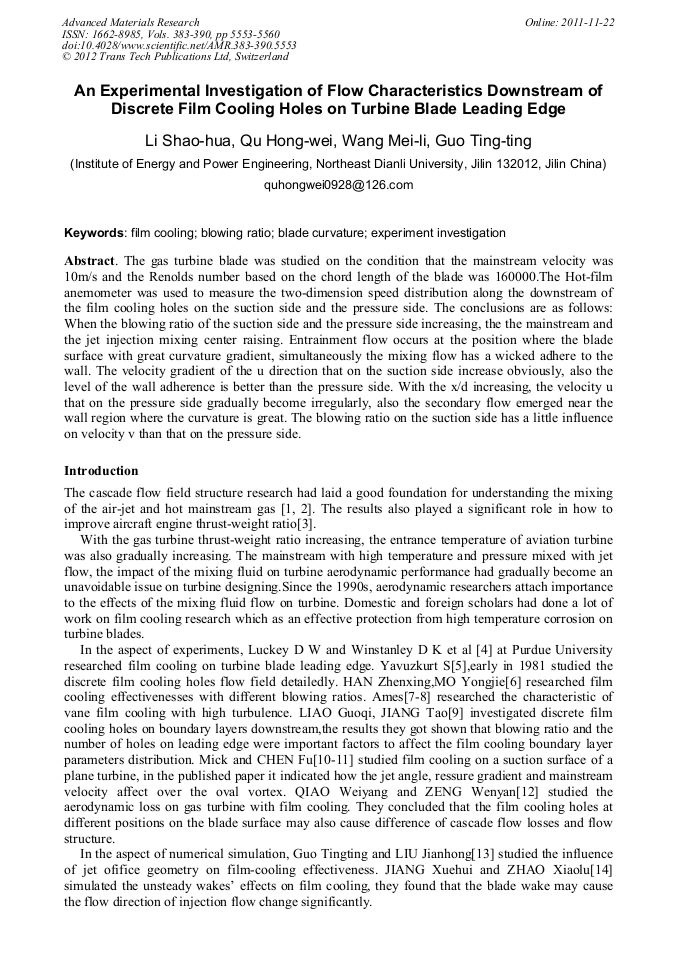

An Experimental Investigation of Flow Characteristics Downstream of Discrete Film Cooling Holes on Turbine Blade Leading Edge

Abstract:

The gas turbine blade was studied on the condition that the mainstream velocity was 10m/s and the Renolds number based on the chord length of the blade was 160000.The Hot-film anemometer was used to measure the two-dimension speed distribution along the downstream of the film cooling holes on the suction side and the pressure side. The conclusions are as follows: When the blowing ratio of the suction side and the pressure side increasing, the the mainstream and the jet injection mixing center raising. Entrainment flow occurs at the position where the blade surface with great curvature gradient, simultaneously the mixing flow has a wicked adhere to the wall. The velocity gradient of the u direction that on the suction side increase obviously, also the level of the wall adherence is better than the pressure side. With the x/d increasing, the velocity u that on the pressure side gradually become irregularly, also the secondary flow emerged near the wall region where the curvature is great. The blowing ratio on the suction side has a little influence on velocity v than that on the pressure side.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 5553-5560
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.5553
• Online since: November 2011
• Authors: Shao Hua Li, Hong Wei Qu, Mei Li Wang, Ting Ting Guo
• Keywords: Blade Curvature, Blowing Ratio, Experiment Investigation, Film Cooling

References

[1] Wilfert G, Fottner L. The Aerodynamic Mixing Effect of Discrete Cooling Jets With Mainstream Flow on a Highly Loaded Turbine Blade . ASME, 1994; 94-GT-235.

DOI: 10.1115/94-gt-235

[2] Goldstein R J, Chen H P. Film Cooling on a Gas Turbine Blade Near the End Wall. ASME Journal of Engineering for Gas Turbines and Power, 1985, 107; 117-122.

DOI: 10.1115/1.3239670

[3] ZHU Zhili, WANG Xiaobo. Performance optmization of high thrust-weight ratio turbo fan engine. Journal of Aerospace Power, 1999, 14(3): 260-264.

[4] Luckey D W, Winstanley D K, Hanus G J, et al. Stagnation region gas film cooling for turbine blade leading edge applications[C]. AIAA Propulsion Conference, 12th, Palo Alto, Calif, United States, 26-29 July (1976).

DOI: 10.2514/6.1976-728

[5] Yavuzkurt S. Full-coverage film cooling; three dimensional measurements of turbulence structure and prediction of recovery region hydrodynamics. NASA CR-3104, (1981).

[6] HAN Zhenxing, MO Yongjie. Experimental research on film cooling effectivenesses at different blowing ratios. ActaAeronautica et Astronautica Sinica, 2004, 25(16): 551-555.

[7] Ames F E. Aspects of vane film cooling with high turbulence: Part 1-Heat transfer [J]. ASME Journal of Turbomachinery, 1998, 120(4): 768-776.

DOI: 10.1115/1.2841788

[8] Ames F E. Aspects of vane film cooling with high turbulence: Part 2-Adiabatic effectiveness[J]. ASME Journal of Turbomachinery, 1998, 120(4): 777-784.

DOI: 10.1115/1.2841789

[9] LIAO Guoqi, JIANG Tao. An experimental investigation of boundary layers downstream of discrete film cooling holes. Acta Aeronautica et Astronautica Sinica, 1994, 15(6): 652-657.

[10] Mick W J, Mayle R E. Stagnation film cooling and heat transfer including its effect within the hole pattern[J]. ASME Journal of Turbomachinery, 1988, 110 (1): 66~72.

DOI: 10.1115/1.3262169

[11] CHEN Fu, SONG Yanping. Experimental study on film cooling on a suction surface of a plane turbine cascade. Journal of Aerospace Power, 1999, 14(2): 161-165.

[12] QIAO Weiyang, ZENG Wenyan. Experimental studies for aerodynamic loss in gas turbine with film cooling. Journal of Propulsion Technology, 2007, 28(1): 14-19.

[13] GUO Tingting, LIU Jianhong. Influence of jet ofifice geometry on film-cooling effectiveness. Journal of Power Engineering, 2006, 26(3): 333-336.

[14] JIANG Xuehui, ZHAO Xiaolu. Numerical simulation of the unsteady wakes' effects on film cooling, Journal of Engineering Thermophysics, 2005, 26(2): 322-324.

[15] L.D. Hylton M.S. Mihelc E.R. Turner. Analytical and Experimental Evaluation of the Heat Transfer Distribution Over the Surfaces of Turbine Vanes. NASA , CR -168015; DDA -EDR -11209.

[16] SHENG Shenzhi, XU Yueting, YU Huijing. Hot Film Anemometry, Bei jing: China Science and Technology Press, 2003. 8.

[17] Schwarz S G, Goldstein R J, Eckert E R G. The in-fluence of curvature on film cooling performance[J]. ASME J of Turbo-machinery, 1991, 113: 472-478.
