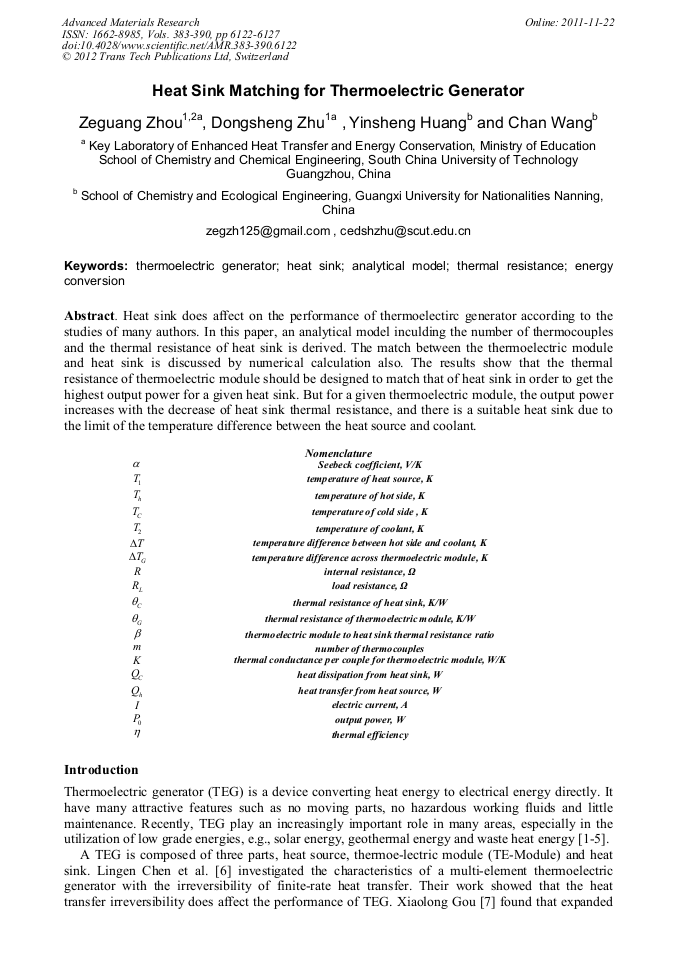

Heat Sink Matching for Thermoelectric Generator

Abstract:

Heat sink does affect on the performance of thermoelectirc generator according to the studies of many authors. In this paper, an analytical model inculding the number of thermocouples and the thermal resistance of heat sink is derived. The match between the thermoelectric module and heat sink is discussed by numerical calculation also. The results show that the thermal resistance of thermoelectric module should be designed to match that of heat sink in order to get the highest output power for a given heat sink. But for a given thermoelectric module, the output power increases with the decrease of heat sink thermal resistance, and there is a suitable heat sink due to the limit of the temperature difference between the heat source and coolant.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 6122-6127
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.6122
• Online since: November 2011
• Authors: Ze Guang Zhou, Dong Sheng Zhu, Yin Sheng Huang, Chan Wang
• Keywords: Analytical Model, Energy Conversion, Heat Sink, Thermal Resistance, Thermoelectric Generator

References

[1] M. Masahide, M. Michio, O. Masaru, Thermoelectric generator utilizing automobile engine exhaust gas, Thermal Science and Engineering, vol. 9, 2001, pp.17-18.

[2] T. Kyono, R. O. Suzuki, K. Ono, Conversion of unused heat energy to electricity by means of thermoelectric generation in condenser, IEEE Transactions on Energy Conversion, vol. 18, 2003, pp.330-334.

DOI: 10.1109/tec.2003.811721

[3] S. Maneewan, J. Khedari, B. Zeghmati, J. Hirunlabh and J. Eakburanawat, Investigation on generated power of thermoelectric roof solar collector, Renewable Energy, vol. 29, 2004, pp.743-752.

DOI: 10.1016/j.renene.2003.10.005

[4] Rida Y. Nuwayhid, Alan Shihadeh, Nesreen Ghaddar, Development and testing of a domestic wood stove thermoelectric generator with natural convection cooling, Energy Conversion and Management, vol. 46, 2005, pp.1631-1643.

DOI: 10.1016/j.enconman.2004.07.006

[5] M. Hasebe, Y. Kamikawa, S. Meiarashi, Thermoelectric generators using solar thermal energy in heated road pavement, International Conference on Thermoelectrics, 2006, pp.697-700.

DOI: 10.1109/ict.2006.331237

[6] Lingen Chen, Jiangzheng Gong, Fengrui Sun, Chih Wu, Effect of heat transfer on the performance of thermoelectric generators, International of Thermal Sciences, vol. 41, 2002, pp.95-99.

DOI: 10.1016/s1290-0729(01)01307-2

[7] Xiaolong Gou, Heng Xiao, Suwen Yang, Modeling, experimental study and optimization on low-temperature waste heat thermoelectric generator system, Applied Energy, vol. 87, 2010, pp.3131-3136.

DOI: 10.1016/j.apenergy.2010.02.013

[8] James W. Stevens, Optimal design of small △Т thermoelectric generation systems, Energy Conversion and Management, vol. 42, 2001, pp.709-720.

DOI: 10.1016/s0196-8904(00)00099-6

[9] Michael Freunek, Monika Muller, Tolgay Ungan, William Walker, Leonhard M. Reindl, New physical model for thermoelectric generator, Journal of Electronic Materials, vol. 38, 2009, pp.1214-1220.

DOI: 10.1007/s11664-009-0665-y

[10] Wulf Glatz, Simon Muntwyler, Christofer Hierold, Optimization and fabrication of thick flexible polymer based micro thermoelectric generator, Sensors and Actuators A: Physical, vol. 132, 2006, pp.337-345.

DOI: 10.1016/j.sna.2006.04.024

[11] Gao Min, Zhang Jing Shao, D. M. Rowe, Thermoelectric Conversion and Its Application, Weapon Industry Press, Bei Jing, 1996, pp.17-19.

[12] N.M. Khattab, E.T. El Shenawy, Optimal operation of thermoelectric cooler driven by solar thermoelectric generator, Energy Conversion and Management, vol. 47, 2007, pp.407-426.

DOI: 10.1016/j.enconman.2005.04.011
