Calculation on Thermal Field of a Doubly-Fed Induction Generator with Axial-Radial Ventilation Cooling System

Abstract:

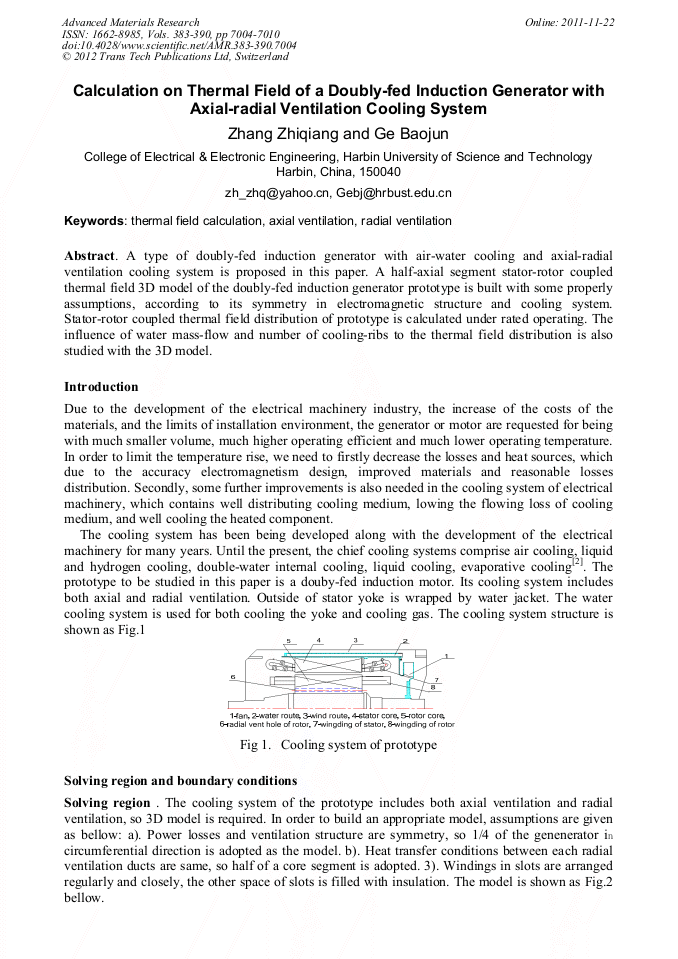

A type of doubly-fed induction generator with air-water cooling and axial-radial ventilation cooling system is proposed in this paper. A half-axial segment stator-rotor coupled thermal field 3D model of the doubly-fed induction generator prototype is built with some properly assumptions, according to its symmetry in electromagnetic structure and cooling system. Stator-rotor coupled thermal field distribution of prototype is calculated under rated operating. The influence of water mass-flow and number of cooling-ribs to the thermal field distribution is also studied with the 3D model.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 7004-7010
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.7004
• Online since: November 2011
• Authors: Zhi Qiang Zhang, Bao Jun Ge
• Keywords: Axial Ventilation, Radial Ventilation, Thermal Field Calculation
