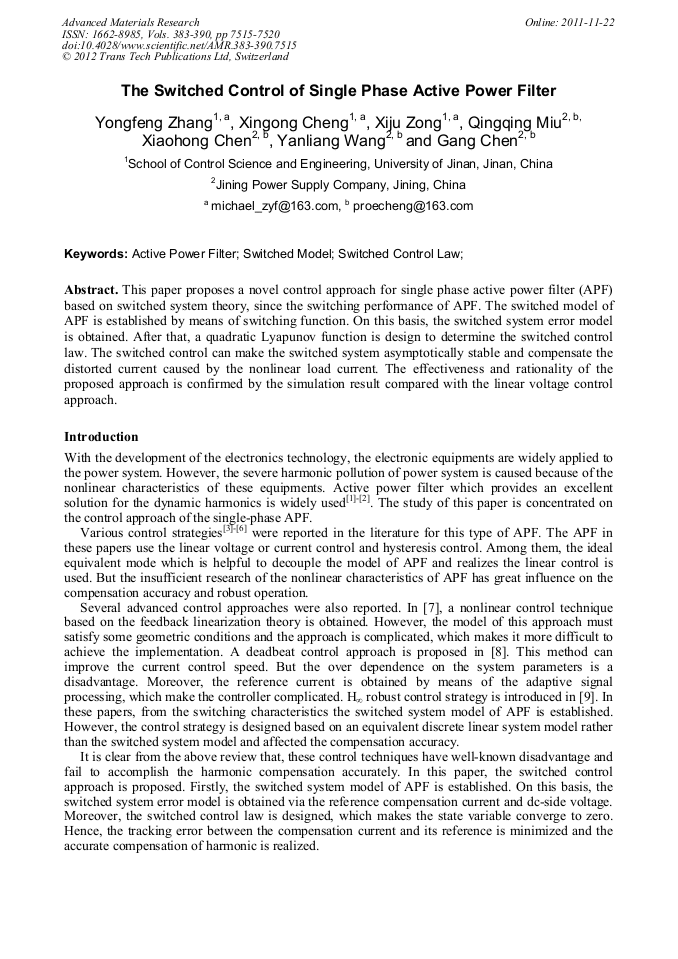

The Switched Control of Single Phase Active Power Filter

Abstract:

This paper proposes a novel control approach for single phase active power filter (APF) based on switched system theory, since the switching performance of APF. The switched model of APF is established by means of switching function. On this basis, the switched system error model is obtained. After that, a quadratic Lyapunov function is design to determine the switched control law. The switched control can make the switched system asymptotically stable and compensate the distorted current caused by the nonlinear load current. The effectiveness and rationality of the proposed approach is confirmed by the simulation result compared with the linear voltage control approach.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 7515-7520
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.7515
• Online since: November 2011
• Authors: Yong Feng Zhang, Xin Gong Cheng, Xi Ju Zong, Qing Qing Miu, Xiao Hong Chen, Yan Liang Wang, Gang Chen
• Keywords: Active Power Filter (APF), Switched Control Law, Switching Model

References

[1] Akagi H, Fujita H, Wada K. A shunt active filter based on voltage detection for harmonic termination of a radial power distribution line,. IEEE Trans. on Ind. Appl., vol. 35, no. 3, pp.638-645, May/Jun. (1999).

DOI: 10.1109/28.767015

[2] Akagi H. New trends in active filters for power conditioning,. IEEE Trans. on Ind. Appl., vol. 32, no. 6, pp.1312-1322, Nov. -Dec. (1996).

DOI: 10.1109/28.556633

[3] M I M Montero, E R Cadaval, and F. B. Gonzalez, Comparison of control strategies for shunt active power filters in three-phase four-wire systems, IEEE Trans. Power Electronics., vol. 22, no. 1, p.229–236, Jan. (2007).

DOI: 10.1109/tpel.2006.886616

[4] L P Kunjumuhammed and M K Mishra, A control algorithm for single-phase active power filter under non-stiff voltage source, IEEE Trans. on Power Electronics., vol. 21, no. 3, p.822–825, May (2006).

DOI: 10.1109/tpel.2006.874939

[5] Telmo Santos, J G Pinto, P Neves, et al. Comparison of Three Control Theories for Single-Phase Active Power Filters. Industrial Electronics, " IECON , 09. 35th Annual Conference of IEEE, pp.3637-3642.

DOI: 10.1109/iecon.2009.5415144

[6] A García-Cerrada, O Pinzón-Ardila and et al, Application of a repetitive controller for a three-phase active power filter, IEEE Trans. Power Electron., vol. 22, no. 1, p.237–246, Jan. (2007).

DOI: 10.1109/tpel.2006.886609

[7] N. Mendalek, F. Fnaiech, K. Al-Haddad, and L. A. Dessaint, Inputstate feedback control of a shunt active power filter, in Proc. Canad. Conf. Electrical Computer Eng., 2001, p.771–773.

DOI: 10.1109/ccece.2001.933539

[8] K. Nishida, M. Rukonuzzman, and M. Nakaoka, Advanced current control implementation with robust deadbeat algorithm for shunt single-phase voltage-source type active power filter, Proc. Inst. Elect. Eng. —Electr. Power Appl., vol. 151, no. 3, p.283–288, May (2004).

DOI: 10.1049/ip-epa:20040317

[9] TANG Hong-mei, LI Chun-wen, ZHENG Xue-sheng, Modeling of Switched Linear System with Single-phase APF and H∞ Control,. High Voltage Engineering, vol. 33, no. 11, pp.128-131, Nov. (2007).

[10] JOSE C GEROMEL, PATRIZIO COLANERI, Stability and Stabilization of Continuous-Time Switched Linear Systems,. SIAM J CONTROL OPTIM, vol. 45, no. 5, pp.1915-1930, May, (2006).

DOI: 10.1137/050646366

[11] Daniel Liberzon, Switching in Systems and Control, Birkhäuser, Boston, (2003).

[12] Liberzon D, Morse A S, Basic problems in stability and design of switched systems,. IEEE Control Systems Magazine, vol. 19, no. 5, pp.59-70. May, (1999).
