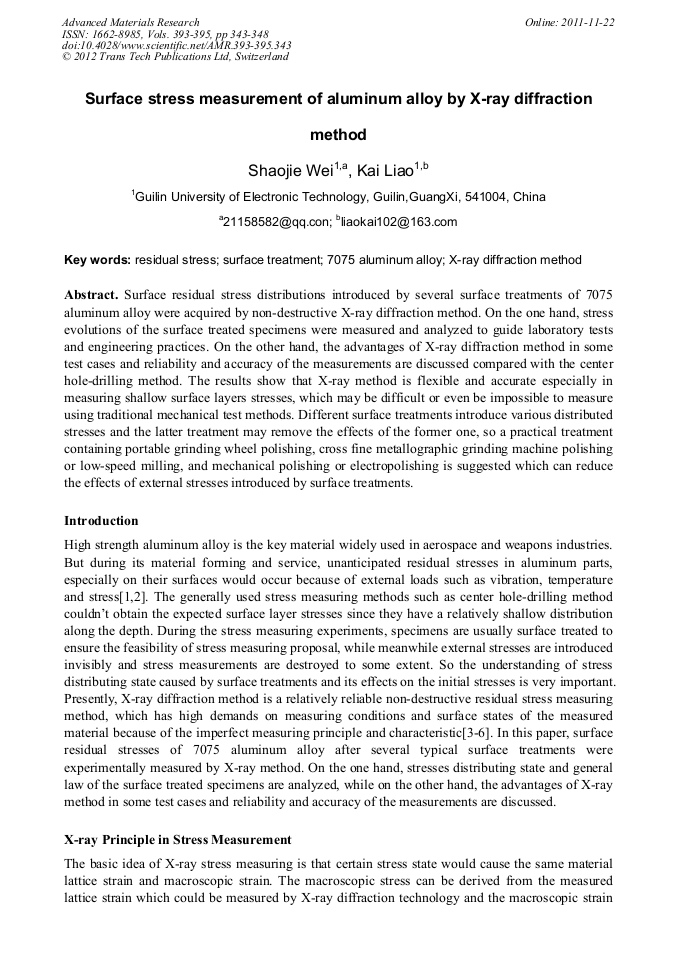

Surface Stress Measurement of Aluminum Alloy by X-Ray Diffraction Method

Abstract:

Surface residual stress distributions introduced by several surface treatments of 7075 aluminum alloy were acquired by non-destructive X-ray diffraction method. On the one hand, stress evolutions of the surface treated specimens were measured and analyzed to guide laboratory tests and engineering practices. On the other hand, the advantages of X-ray diffraction method in some test cases and reliability and accuracy of the measurements are discussed compared with the center hole-drilling method. The results show that X-ray method is flexible and accurate especially in measuring shallow surface layers stresses, which may be difficult or even be impossible to measure using traditional mechanical test methods. Different surface treatments introduce various distributed stresses and the latter treatment may remove the effects of the former one, so a practical treatment containing portable grinding wheel polishing, cross fine metallographic grinding machine polishing or low-speed milling, and mechanical polishing or electropolishing is suggested which can reduce the effects of external stresses introduced by surface treatments.

• Periodical: Advanced Materials Research (Volumes 393-395)
• Pages: 343-348
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.393-395.343
• Online since: November 2011
• Authors: Shao Jie Wei, Kai Liao
• Keywords: 7075 Aluminum Alloy, Residual Stress, Surface Treatment, X-Ray Diffraction Method

References

[1] Kang Xiaoming, Sun Jie, Su Caimao, et al. Sources and Control of Machining Distortions in Large Integral Structure. China Mechanical Engineering Vol. 15(2004), p.1140.

[2] Mi Gumao. Cause of Residual Stress and Countermeasures. (China Machine Press, Beijing 1983).

[3] Chen Yu'an, Zhou Shangqi. The-State-of-the-Art of the Study on Residual Stress Measurement by X-ray Analysis. Non-destructive testing Vol. 23(2001), p.19.

[4] V. K. Sinha, V. S. Godaba. Residual stress measurement in worked and heat treated steel by X-ray diffractometry. Materials Science & Engineering A Vol. 248 (2008), p.491.

DOI: 10.1016/j.msea.2007.11.026

[5] Hu Yonghui, Wu Yunxin, Chen Lei, et al. Experimental measurement of surface residual stresses of quenched aluminum alloy thick plate by X-ray method. Materials China Vol. 30 (2011), p.51.

[6] Yonghui Hu, Yunxin Wu, Guangyu Wang, et al. Surface yield strength gradient versus residual stress relaxation of 7075 aluminum alloy. Advanced Materials Research Vol. 160-162 (2010), p.241.

DOI: 10.4028/www.scientific.net/amr.160-162.241

[7] Guo Junkang, Wu Yunxin, Hu Yonghui. The application of X-ray measurement of near surface residual stress in aluminum alloy thick plate. Light Alloy Fabrication Technology Vol. 38(2010), p.31.

[8] Zhang Dingquan. Basic Knowledge of Residual Stress Determination. PART A: PHYS. TEST Vol. 43(2007), p.263.

[9] Zhang Dingquan, He Jiawen. Analysis and role of X-ray diffraction in material residual stress. (Xi'an Jiaotong University Press, Xi'an 1999).

[10] Liu Guowei, Huang Wenlong, Wang Minge. Study of surface treatment technology of measuring residual stress with X-ray. Chemical Engineering & Machinery Vol. 21(1994), p.324.
