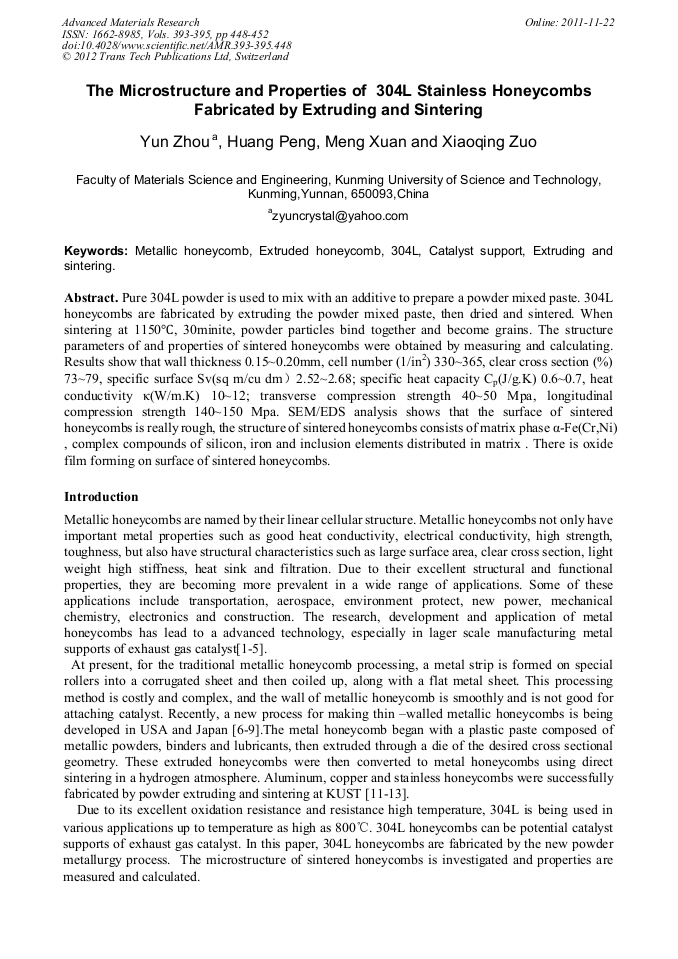

The Microstructure and Properties of 304L Stainless Honeycombs Fabricated by Extruding and Sintering

Abstract:

Pure 304L powder is used to mix with an additive to prepare a powder mixed paste. 304L honeycombs are fabricated by extruding the powder mixed paste, then dried and sintered. When sintering at 1150°C, 30minite, powder particles bind together and become grains. The structure parameters of and properties of sintered honeycombs were obtained by measuring and calculating. Results show that wall thickness 0.15~0.20mm, cell number (1/in2) 330~365, clear cross section (%) 73~79, specific surface Sv(sq m/cu dm）2.52~2.68; specific heat capacity Cp(J/g.K) 0.6~0.7, heat conductivity κ(W/m.K) 10~12; transverse compression strength 40~50 Mpa, longitudinal compression strength 140~150 Mpa. SEM/EDS analysis shows that the surface of sintered honeycombs is really rough, the structure of sintered honeycombs consists of matrix phase α-Fe(Cr,Ni) , complex compounds of silicon, iron and inclusion elements distributed in matrix . There is oxide film forming on surface of sintered honeycombs.

• Periodical: Advanced Materials Research (Volumes 393-395)
• Pages: 448-452
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.393-395.448
• Online since: November 2011
• Authors: Yun Zhou, Huang Peng, Meng Xuan, Xiao Qing Zuo
• Keywords: 304L, Catalyst Support, Extruded Honeycomb, Extruding, Metallic Honeycomb, Sintering

References

[1] B.M. Dempsey, S. Eisele, D.L. McDowell: Int. J. Heat Mass Transfer. Vol. 48 (2005), p.527.

[2] A. M. Hayes, A.J. Wang, B. M. Dempsey, D. L. McDowell: Mech. Mater. Vol. 36 (2004), p.691.

[3] T. Uda, M. Tanaka, K. Munakata: Fusion Engineering and Design, Vol. 83 (2008), p.1715.

[4] C. G. Visconti, E. Tronconi, L. Lietti, et al: Applied Catalysis A: General, Vol. 370( 2009), p.93.

[5] Seely, Richard L. Honeycomb extrusion die. US Patent. No 6302679, (2003).

[6] Cutler, Willard A. Thermally conductive honeycombs for chemical reactors. US Patent. No 6881703 , (2005).

[7] J. Cochran, K.J. Lee, , D. McDowell, T. Sanders, H, Multifunctional Metallic Honeycombs by thermal chemical processing. In: Processing and Properties of Lightweight Cellular Metals and Structures, edited by A. Ghosh,T. Sanders,D. Claar , TMS，2002, p.127.

[8] J. L. Clark，J Cochran，H. Thomas，K. J. Lee, Metal Honeycomb from Oxide paste: Maraging Steel and Super Invar structure and properties, In: Processing and Properties of Lightweight Cellular Metals and Structures, edited by A. Ghosh,T. Sanders,D. Claar, TMS，2002, p.116.

[9] A. M. Hayes, D. McDowell, J. Cochran, Properties of Maraging Steel Honeycomb under Compressive Quasistatic and Dynamic Loading, In: Processing and Properties of Lightweight Cellular Metals and Structures , edited by A. Ghosh,T. Sanders,D. Claar , TMS 2002, p.137.

[10] K.M. Hurysz, J. Cochran, T. Sanders, Modeling Powder Extrusion Pastes for Forming Light Weight Multifunctional Structures, In: In: Processing and Properties of Lightweight Cellular Metals and Structures , edited by A. Ghosh,T. Sanders,D. Claar, TMS 2002, p.167.

[11] Y. Zhou, X.Q. Zuo, J.H. Sun, J. Mei, J.L. Sun: Materials Science and Engineering A, Vol. 457 (2007), p.329.

[12] Y. Zhou, X.Q. Zuo, X.Q. Zhang, J. Mei, J.L. Sun: Journal of Materials Science & Engineering (in Chinese), Vol. 23(2005), p.504.

[13] Y. Zhou, X.Q. Zuo, T. Zhang: 316L Stainless Honeycombs Fabricated by Extruding and Sintering, Advanced Materials Research, Vols. 146-147 (2011), p.1921.

DOI: 10.4028/www.scientific.net/amr.146-147.1921
