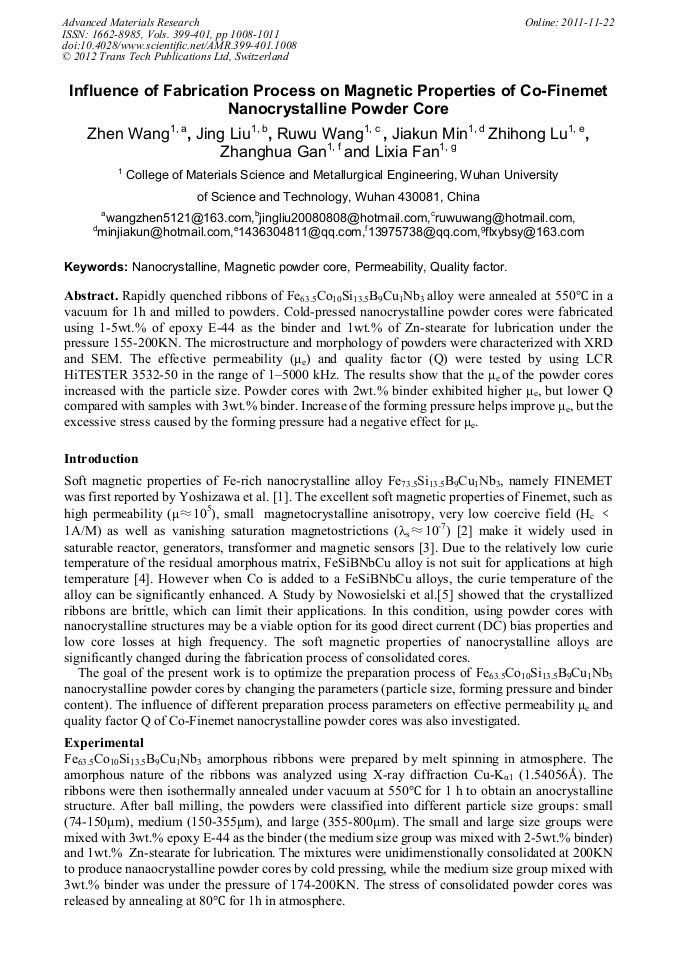

Influence of Fabrication Process on Magnetic Properties of Co-Finemet Nanocrystalline Powder Core

Abstract:

Abstract. Rapidly quenched ribbons of Fe_63.5Co₁₀Si_13.5B₉Cu₁Nb₃ alloy were annealed at 550°C in a vacuum for 1h and milled to powders. Cold-pressed nanocrystalline powder cores were fabricated using 1-5wt.% of epoxy E-44 as the binder and 1wt.% of Zn-stearate for lubrication under the pressure 155-200KN. The microstructure and morphology of powders were characterized with XRD and SEM. The effective permeability (μe) and quality factor (Q) were tested by using LCR HiTESTER 3532-50 in the range of 1–5000 kHz. The results show that the μe of the powder cores increased with the particle size. Powder cores with 2wt.% binder exhibited higher μe, but lower Q compared with samples with 3wt.% binder. Increase of the forming pressure helps improve μe, but the excessive stress caused by the forming pressure had a negative effect for μe.

• Periodical: Advanced Materials Research (Volumes 399-401)
• Pages: 1008-1011
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.399-401.1008
• Online since: November 2011
• Authors: Zhen Wang, Jing Liu, Ru Wu Wang, Jia Kun Min, Zhi Hong Lu, Zhang Hua Gan, Li Xia Fan
• Keywords: Magnetic Powder Core, Nanocrystalline, Permeability, Quality Factor

References

[1] Y. Yoshizawa, S. Oguma and K. Yamauchi: J. Appl. Phys. Vol. 64 (1988), p.6044.

[2] M. E. McHenry, M. A. Willard and D. E. Laughlin: Prog. Mater. Sci. Vol. 44 (1999), p.291.

[3] D.C. Jiles: Acta. Master. Vol. 51 (2003), p.5907.

[4] M. Muller: J. Magn. Magn. Mater. Vol. 160 (1996), p.284.

[5] Nowosielski R, Wysłocki JJ, Wnuk I and Gramatyka P: J Mater Process Technol. Vol. 175(2006), p.324.

[6] .P. Klug, L.E. Aleksander: Willey, New York, 1974.

[7] G. Herzer: Handbook of Magnetic Materials. Vol. 10(1997), p.415–462.

[8] J. Zhou, Y. F. Cui, H. S. Liu, W. Wang, K. Peng and Y. D. Xiao: Mater Sci, 2011.

[9] Legg VE: Bell Syst Tech J. Vol. 15(1936), p.39
