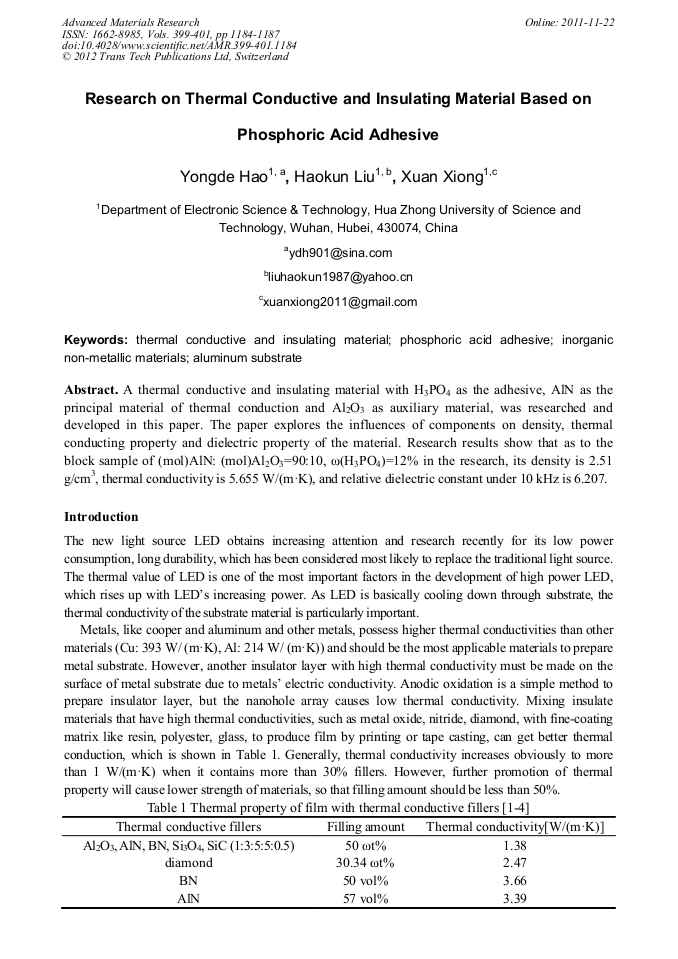

Research on Thermal Conductive and Insulating Material Based on Phosphoric Acid Adhesive

Abstract:

A thermal conductive and insulating material with H₃PO₄ as the adhesive, AlN as the principal material of thermal conduction and Al₂O₃ as auxiliary material, was researched and developed in this paper. The paper explores the influences of components on density, thermal conducting property and dielectric property of the material. Research results show that as to the block sample of (mol)AlN: (mol)Al₂O₃=90:10, ω(H₃PO₄)=12% in the research, its density is 2.51 g/cm³, thermal conductivity is 5.655 W/(m•K), and relative dielectric constant under 10 kHz is 6.207.

You might also be interested in these eBooks

New Materials, Applications and Processes

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 399-401)

Pages:

1184-1187

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.399-401.1184

Citation:

Cite this paper

Online since:

November 2011

Authors:

Yong De Hao, Hao Kun Liu, Xuan Xiong

Keywords:

Aluminum Substrate, Inorganic Non-Metallic Materials, Insulating Material, Phosphoric Acid Adhesive, Thermal Conductive

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Wenying Zhou, Shuhua Qi, Ke Wu, Caifeng Wang, Jingli Kou: Materials Science and Technology Vol. 17(2009), pp.360-363. In Chinese.

Google Scholar

[2] Yong Lü, Meng Chen, Shiyong Luo, Wencai Xu: Electronic Components and Materials Vol. 28(2009), pp.37-39. In Chinese.

Google Scholar

[3] Geon-Woong Lee, Min Park, Junkyung Kim, Jae Ik Lee, Ho Gyu Yoon: Composites Part A: Applied Science and Manufacturing Vol. 37(2006), pp.727-734.

Google Scholar

[4] Eun-Sung Lee, Sang-Mock Lee: Journal of the American Ceramic Society Vol. 91(2008), pp.1169-1174.

Google Scholar

[5] Meiling Wei, Xiaobo Zhao: Advanced Ceramics Vol. 1(2007), pp.28-31. In Chinese.

Google Scholar

[6] M. Oliveira, S. Olhero, J. Rocha, J.M.F. Ferreira: Journal of Colloid and Interface Science Vol. 261(2003), pp.456-463.

Google Scholar

[7] J. A. Fernando, D. D. L. Chung.: Journal of Materials Science Vol. 36(2011),pp.5079-5085

Google Scholar
