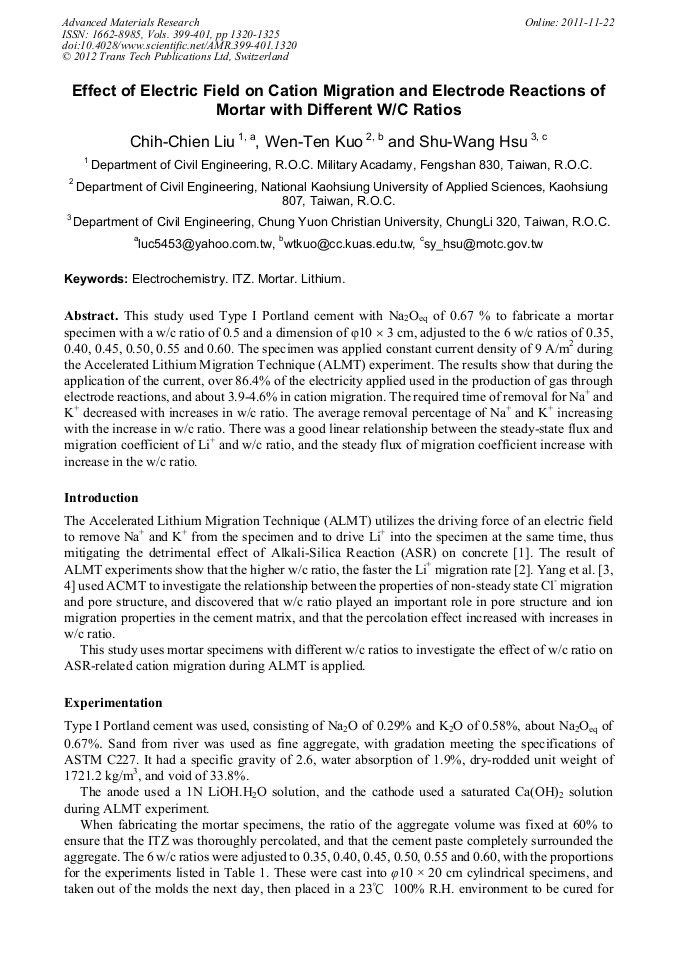

Effect of Electric Field on Cation Migration and Electrode Reactions of Mortar with Different W/C Ratios

Abstract:

This study used Type I Portland cement with Na2Oeq of 0.67 % to fabricate a mortar specimen with a w/c ratio of 0.5 and a dimension of φ10 × 3 cm, adjusted to the 6 w/c ratios of 0.35, 0.40, 0.45, 0.50, 0.55 and 0.60. The specimen was applied constant current density of 9 A/m² during the Accelerated Lithium Migration Technique (ALMT) experiment. The results show that during the application of the current, over 86.4% of the electricity applied used in the production of gas through electrode reactions, and about 3.9-4.6% in cation migration. The required time of removal for Na+ and K+ decreased with increases in w/c ratio. The average removal percentage of Na⁺ and K⁺ increasing with the increase in w/c ratio. There was a good linear relationship between the ste^{Superscript textSuperscript text}ady-state flux and migration coefficient of Li⁺ and w/c ratio, and the steady flux of migration coefficient increase with increase in the w/c ratio.

• Periodical: Advanced Materials Research (Volumes 399-401)
• Pages: 1320-1325
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.399-401.1320
• Online since: November 2011
• Authors: Chih Chien Liu, Wen Ten Kuo, Shu Wang Hsu
• Keywords: Electrochemistry, ITZ, Lithium, Mortar

References

[1] C.C. Liu: Identify the reactivity of aggregates in Taiwan and using electrochemical techniques to mitigate expansion due to alkali-aggregate reaction in concrete, Ph.D. Thesis, Department of Civil Engineering, National Central University, Taiwan, (2003). (in Chinese)

[2] W.C. Wang: A Study of using one dimensional electrochemical cation migration technique to inhibit concrete ASR, Ph.D. Dissertation, Department of Civil Engineering, National Central University, ChungLi, Taiwan, (2010). (in Chinese)

[3] C.C. Yang: Mater. Chem. Phys. Vol. 91 (2005), p.538

[4] C.C. Yang and S.W. Cho: Cem. Concr. Res. Vol. 35 (2005), p.344

[5] S.C. Wu: Accelerate Lithium Migration Technique on the rebar and the bond strength between rebar and concrete,investigate accelerate Lithium Migration Technique engineering application, Master thesis, Department of Civil Engineering, National Central University, Taiwan, 2010. (in Chinese)

[6] C.C. Yang and S.W. Cho: Mater. Chem. Phys. Vol. 81 (2003), p.116

[7] F.Z. Tian: Electrochemistry: basic principle and application, Five Continents Publishing House, Taipei, p.23 (1999). (in Chinese)

[8] C.Y. Hsu: Effect of aggregate amount on lithium migration in cement mortar, Master thesis, Institute of Civil Engineering and Disaster Prevention Technology, National Kaohsiung University of Applied Sciences, Taiwan, 2009. (in Chinese)
