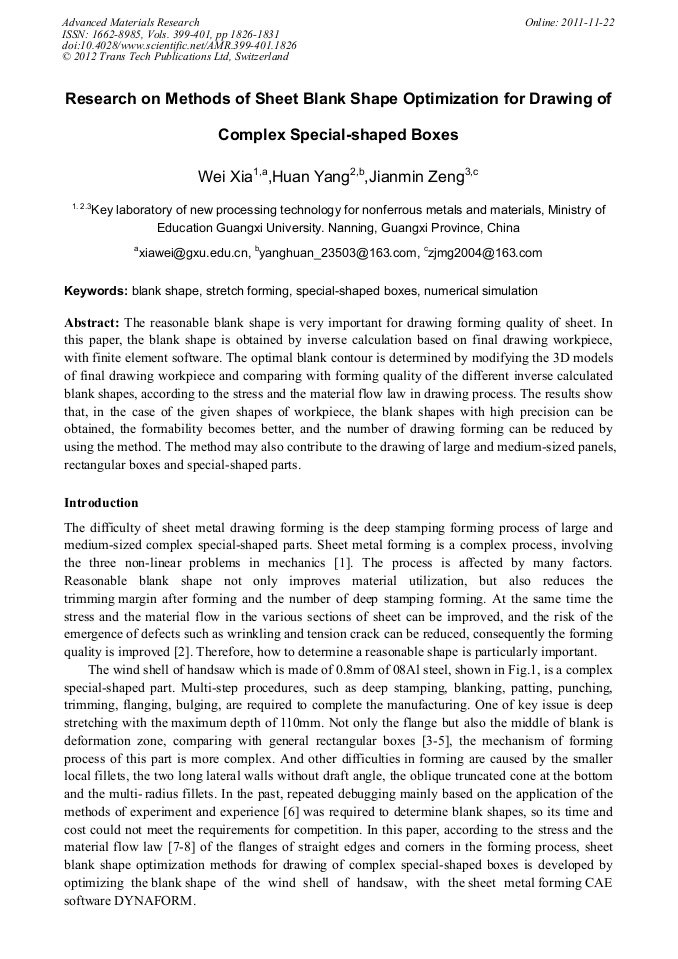

Research on Methods of Sheet Blank Shape Optimization for Drawing of Complex Special-Shaped Boxes

Abstract:

The reasonable blank shape is very important for drawing forming quality of sheet. In this paper, the blank shape is obtained by inverse calculation based on final drawing workpiece, with finite element software. The optimal blank contour is determined by modifying the 3D models of final drawing workpiece and comparing with forming quality of the different inverse calculated blank shapes, according to the stress and the material flow law in drawing process. The results show that, in the case of the given shapes of workpiece, the blank shapes with high precision can be obtained, the formability becomes better, and the number of drawing forming can be reduced by using the method. The method may also contribute to the drawing of large and medium-sized panels, rectangular boxes and special-shaped parts.
