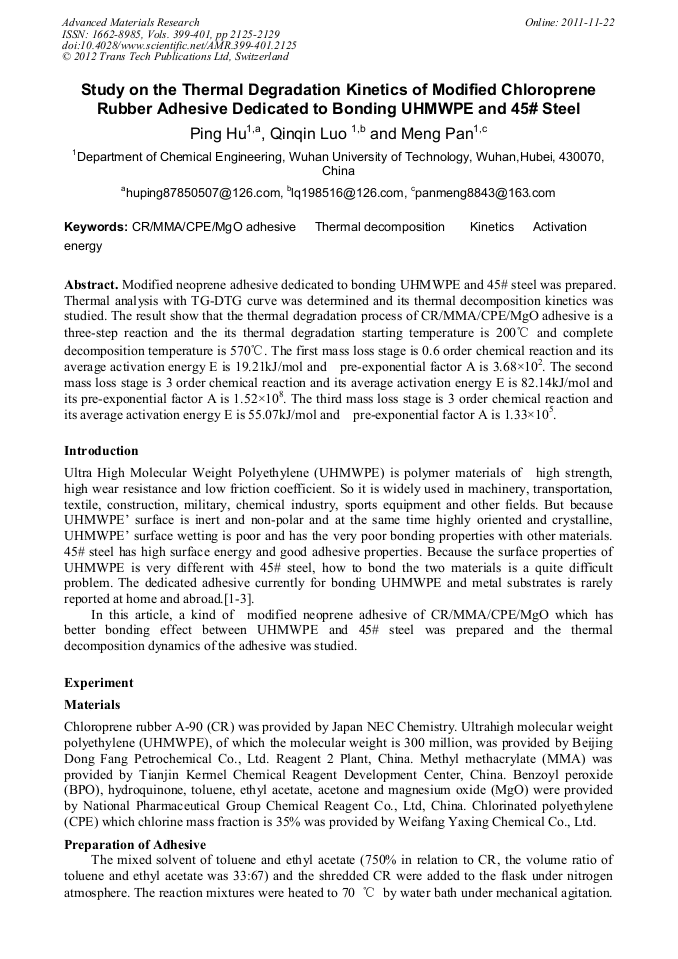

Study on the Thermal Degradation Kinetics of Modified Chloroprene Rubber Adhesive Dedicated to Bonding UHMWPE and 45# Steel

Abstract:

Modified neoprene adhesive dedicated to bonding UHMWPE and 45# steel was prepared. Thermal analysis with TG-DTG curve was determined and its thermal decomposition kinetics was studied. The result show that the thermal degradation process of CR/MMA/CPE/MgO adhesive is a three-step reaction and the its thermal degradation starting temperature is 200°C and complete decomposition temperature is 570°C. The first mass loss stage is 0.6 order chemical reaction and its average activation energy E is 19.21kJ/mol and pre-exponential factor A is 3.68×10². The second mass loss stage is 3 order chemical reaction and its average activation energy E is 82.14kJ/mol and its pre-exponential factor A is 1.52×10⁸. The third mass loss stage is 3 order chemical reaction and its average activation energy E is 55.07kJ/mol and pre-exponential factor A is 1.33×10⁵.

• Periodical: Advanced Materials Research (Volumes 399-401)
• Pages: 2125-2129
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.399-401.2125
• Online since: November 2011
• Authors: Ping Hu, Qin Qin Luo, Meng Pan
• Keywords: Activation Energy, CR/MMA/CPE/MgO Adhesive, Kinetic, Thermal Decomposition

References

[1] Guangjian Liu, in: Ultra High Molecular Weight Polyethylene, edited by Chemical Industry Press, Beijing(2001).

[2] Jin Jun,Ping Hui,Xiong Yan: submitted to Technical Textiles (2010).

[3] Njuguna J, Pielichowskiand s k: submitted to Polymer Advanced Technology (2008).

[4] Fuxin Hu,Li Song,Zhiqiang Xu: submitted to Journal of Xinyang Teachers College(Natural Science Edition) (2003).

[5] Fuxin Hu ,Yongping Zhang: submitted to China Elastomerics (2006).
