A Micro-Machined Silicon Vibrating Ring Gyroscope

Abstract:

The presented work focuses on the design, fabrication and frequency characteristics of a multi-mass MEMS vibrating ring gyroscope. After modal and harmonic simulation in ANSYS, the first 12 modes’ resonant frequencies and impacts on the sense-axis displacement are obtained. This gyroscope is fabricated through the silicon-on-glass process and deep etching bulk silicon MEMS technology. With a view to obtain the frequency characteristics, the authors attempt set of frequency sweeping experiment, whose record agrees well with ANSYS simulation results. The preliminary experimental data present the relationship between drive voltage and resonant characteristics and indicate that the structural design of vibrating ring and multi-mass can effectively depart the operational modes away from the interfering modes with a higher Q of sense axis at atmospheric pressure.

You might also be interested in these eBooks

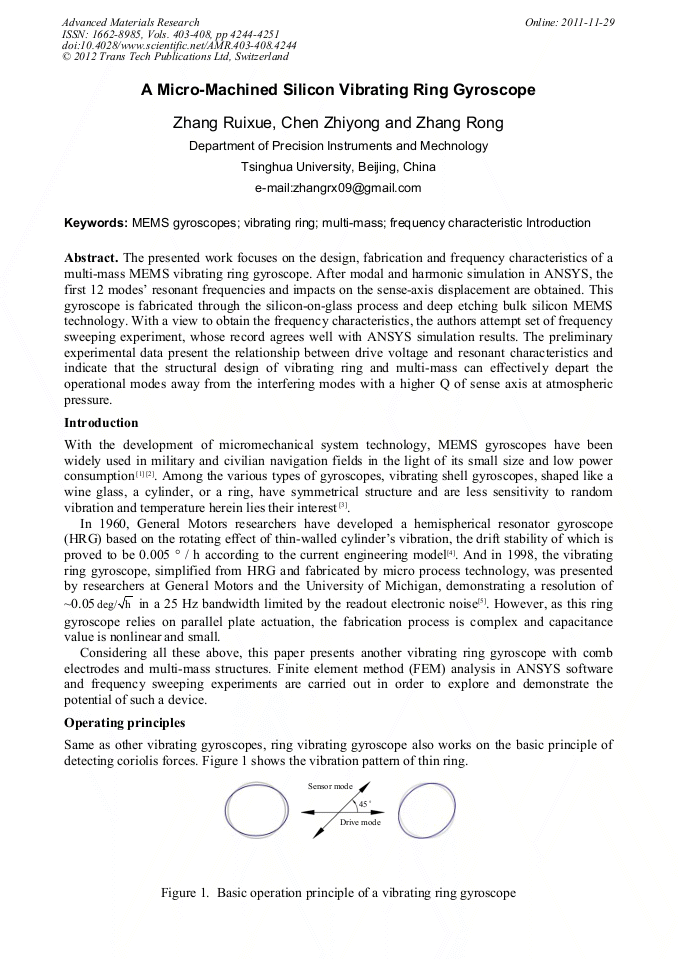

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 403-408)

Pages:

4244-4251

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.403-408.4244

Citation:

Cite this paper

Online since:

November 2011

Authors:

Rui Xue Zhang, Zhi Yong Chen, Rong Zhang

Keywords:

Frequency Characteristic Introduction, MEMS Gyroscopes, Multi-Mass, Vibrating Ring

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Damrongrit Piyabongkarn, The Development of a MEMS Gyroscope for Absolute Angle Measurement . IEEE Transactions on Control Systems Technology, March 2005, Vol. 13, pp.185-195.

DOI: 10.1109/tcst.2004.839568

Google Scholar

[2] Tanaka, Masako, An industrial and applied review of new MEMS devices features. Microelectronic Engineering, 2007, p.1341–1344.

DOI: 10.1016/j.mee.2007.01.232

Google Scholar

[3] Farrokh Ayazi, and Khalil Najafi, A HARPSS Polysilicon Vibrating Ring Gyroscope. Journal of Microelectromechanical Systems, June 2001, no. 2, vol. 10 pp., 169-179.

DOI: 10.1109/84.925732

Google Scholar

[4] Lv Zhiqing, Research and develolpment of hemi- gyroscope (HRG),. Inertial development workshop. (2003).

Google Scholar

[5] Farrokh Ayazi, and Khalil Najafi, Design and Fabrication of A High-Performance Polysilicon Vibrating Ring GyroscopeProc. IEEE Micro Electro Mechamical Systems(MEMS)Workshop, Feb. 1998, pp.621-626.

DOI: 10.1109/memsys.1998.659829

Google Scholar

[6] Najafi, Guohong He and Khalil, A Single-Crystal Silicon Vibrating Ring Gyroscope . IEEE Sensors 2002 Conference, 2002, pp.718-721.

DOI: 10.1109/memsys.2002.984371

Google Scholar

[7] Najafi, Guohong He and Khalil, In-plane free vibration of a single-crystal silicon ring. International Journal of Solids and Structures, 2008, pp.6115-6132.

Google Scholar
