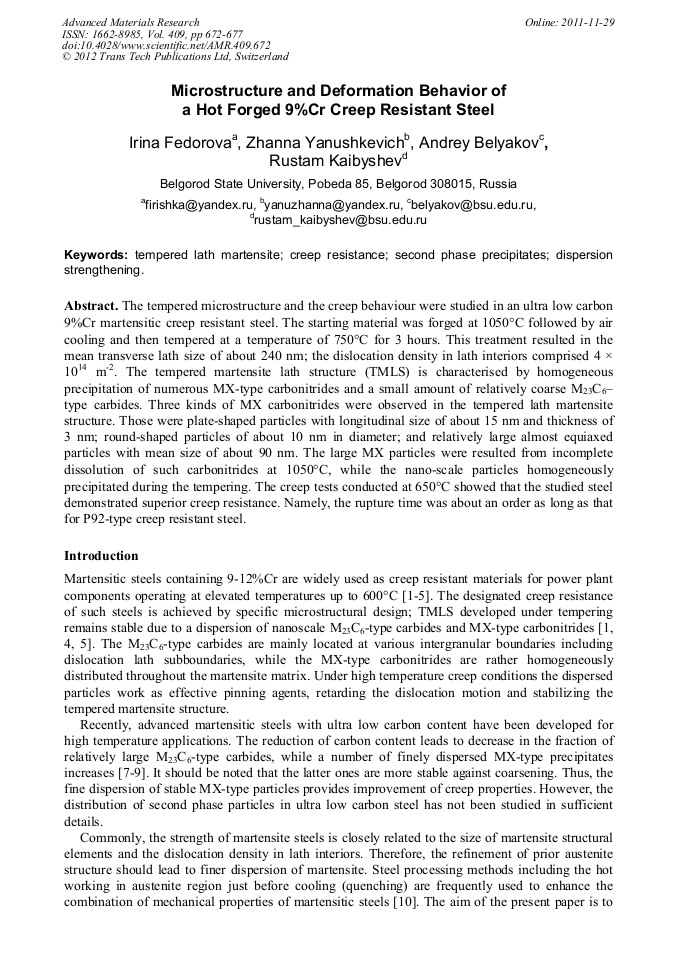

Microstructure and Deformation Behavior of a Hot Forged 9%Cr Creep Resistant Steel

Abstract:

The tempered microstructure and the creep behaviour were studied in an ultra low carbon 9%Cr martensitic creep resistant steel. The starting material was forged at 1050°C followed by air cooling and then tempered at a temperature of 750°C for 3 hours. This treatment resulted in the mean transverse lath size of about 240 nm; the dislocation density in lath interiors comprised 4 × 10¹⁴ m^-2. The tempered martensite lath structure (TMLS) is characterised by homogeneous precipitation of numerous MX-type carbonitrides and a small amount of relatively coarse M₂₃C₆–type carbides. Three kinds of MX carbonitrides were observed in the tempered lath martensite structure. Those were plate-shaped particles with longitudinal size of about 15 nm and thickness of 3 nm; round-shaped particles of about 10 nm in diameter; and relatively large almost equiaxed particles with mean size of about 90 nm. The large MX particles were resulted from incomplete dissolution of such carbonitrides at 1050°C, while the nanoscale particles homogeneously precipitated during the tempering. The creep tests conducted at 650°C showed that the studied steel demonstrated superior creep resistance. Namely, the rupture time was about an order as long as that for P92-type creep resistant steel.

• Periodical: Advanced Materials Research (Volume 409)
• Pages: 672-677
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.409.672
• Online since: November 2011
• Authors: Irina Fedorova, Zhanna Yanushkevich, Andrey Belyakov, Rustam Kaibyshev
• Keywords: Creep Resistance, Dispersion Strengthening, Second Phase Precipitates, Tempered Lath Martensite

References

[1] P.J. Ennis and A. Czyrska-Filemonowicz: Sadhana, Vol. 28 (2003), p.709.

[2] K. Kimura, K. Sawada, H. Kushima and K. Kubo: Int. J. Mat. Res. Vol. 99 (2008), p.395.

[3] J.C. Vaillant, B. Vandenberghe, B. Hahn, H. Heuser and C. Jochum: Int. J. Pressure Vessels and Piping Vol. 85 (2008), p.38.

DOI: 10.1016/j.ijpvp.2007.06.011

[4] R.O. Kaybyshev, V.N. Skorobogatykh and I.A. Shchenkova: Phys. Met. Metallogr. Vol. 109 (2010), p.186.

[5] A. Kipelova, R. Kaibyshev, A. Belyakov and D. Molodov: Mater. Sci. Eng. A Vol. A528 (2011), p.1280.

[6] J.M. Vitek and R.L. Klueh: Metall. Mater. Trans. Vol. 14A (1983), p.1047.

[7] M. Taneike, F. Abe and K. Sawada: Nature Vol. 424 (2003), p.294.

[8] F. Abe, M. Taneike and K. Sawada: Int. J. Press. Vess. Pip. Vol. 84 (2007), p.3.

[9] F. -S. Yin and W. -S. Jung: Metall. Mater. Trans. Vol. 40A (2009), p.302.

[10] Y. Furuya, S. Matsuoka: Metall. Mater. Trans. Vol. 35A (2004), p.1715.

[11] F. Abe: Mater. Sci. Eng. A Vol. A387-389 (2004), p.565.

[12] H. G. Armaki, R. Chen, K. Maruyama and M. Igarashi: Mater. Sci. Eng. A Vol. A527 (2010), p.6581.

[13] M. Taneike, K. Sawada and F. Abe: Metall. Mater. Trans. Vol. 35A (2004), p.1255.

[14] F. -G. Wei, T. Hara and K. Tsuzaki: Phil. Mag. Vol. 84 (2004), p.1735.

[15] NIMS Creep Data Sheet, No. 48, National Institute for Materials Science, Japan, (2002).
