Effects of Hot-Forging Process on Combination of Strength and Toughness in Ultra High-Strength TRIP-Aided Martensitic Steels

Abstract:

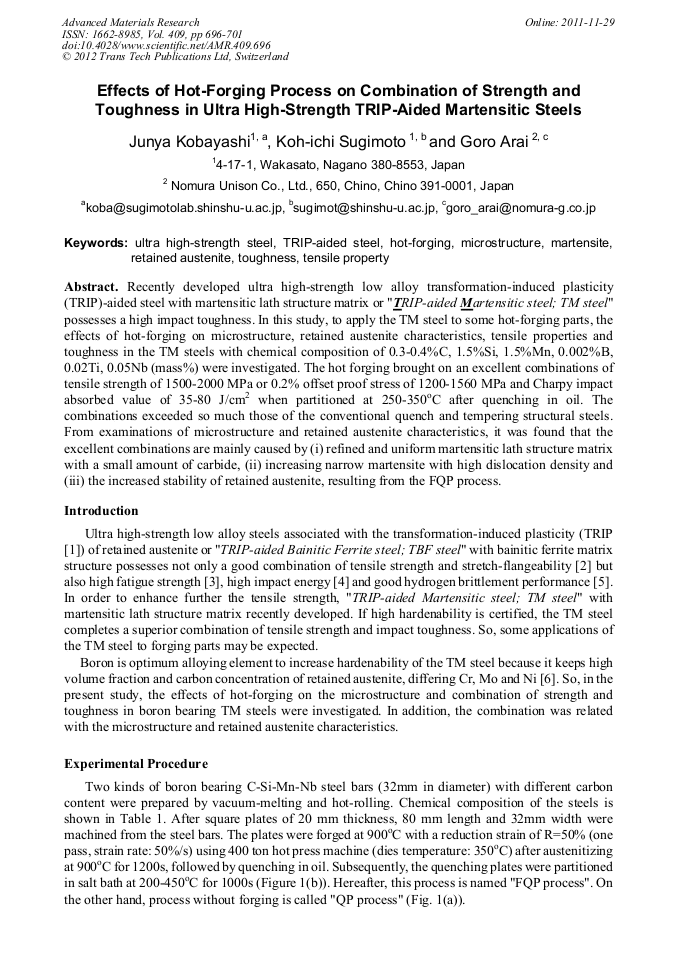

Recently developed ultra high-strength low alloy transformation-induced plasticity (TRIP)-aided steel with martensitic lath structure matrix or "TRIP-aided Martensitic steel; TM steel" possesses a high impact toughness. In this study, to apply the TM steel to some hot-forging parts, the effects of hot-forging on microstructure, retained austenite characteristics, tensile properties and toughness in the TM steels with chemical composition of 0.3-0.4%C, 1.5%Si, 1.5%Mn, 0.002%B, 0.02Ti, 0.05Nb (mass%) were investigated. The hot forging brought on an excellent combinations of tensile strength of 1500-2000 MPa or 0.2% offset proof stress of 1200-1560 MPa and Charpy impact absorbed value of 35-80 J/cm² when partitioned at 250-350°C after quenching in oil. The combinations exceeded so much those of the conventional quench and tempering structural steels. From examinations of microstructure and retained austenite characteristics, it was found that the excellent combinations are mainly caused by (i) refined and uniform martensitic lath structure matrix with a small amount of carbide, (ii) increasing narrow martensite with high dislocation density and (iii) the increased stability of retained austenite, resulting from the FQP process.

• Periodical: Advanced Materials Research (Volume 409)
• Pages: 696-701
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.409.696
• Online since: November 2011
• Authors: Junya Kobayashi, Koh Ichi Sugimoto, Goro Arai
• Keywords: Hot-Forging, Martensite, Microstructure, Retained Austenite, Tensile Properties, Toughness, TRIP-Aided Steel, Ultra High-Strength Steel

References

[1] V. F. Zackay, E. R. Parker, D. Fahr and R. Bush: Trans. Amer. Soc. Met., Vol. 60 (1967), p.252.

[2] K. Sugimoto, J. Sakaguchi, T. Iida and T. Kashima: ISIJ Int., Vol. 40 (2000), p.920.

[3] K. Sugimoto, S. Hashimoto and S. Ikeda: Int. Conf. on Advanced High Strength Sheet Steels for Automotive Applications Proc., AIST, Warrendale, PA, (2004), p.63.

[4] T. Hojo, K. Sugimoto, Y. Mukai and S. Ikeda: ISIJ Int., Vol. 48 (2008), p.824.

[5] K. Sugimoto, M. Kobayashi, K. Inoue and Y. Masuda: Tetsu-to-Hagane, Vol. 85 (1999), p.856.

[6] S. Song, K. Sugimoto, M. Kobayashi, H. Matsubara and T. Kashima: Tetsu-to-Hagane, Vol. 86 (2000), p.563.

[7] J. Kobayashi and K. Sugimoto: unpublised data.

[8] H. Maruyama: J. Jpn. Soc. Heat Treat., Vol. 17 (1977), p.198.

[9] D. J. Dyson and B. Holmes: J. Iron Steel Inst., Vol. 208 (1970), p.469.

[10] J. H. Wu, P. J. Wray, C. I. Garcia, M. J. Hua and A. J. DeArdo: ISIJ Int., Vol. 45 (2005), p.254.

[11] K. Sugimoto, S. Sato and G. Arai: Mat. Sci. Forum, Vol. 638-642 (2010), p.3074.

[12] K. Sugimoto, J. Kobayashi and G. Arai, Steel Res. Int., Vol. 81 (2010), p.254.

[13] K. Sugimoto, M. Kobayashi and S. Hashimoto: Metall. Trans. A, Vol. 23A (1992), p.3085.
