Precipitation of Si and its Influence on Mechanical Properties of Type 441 Stainless Steel

Timo J. Juuti; L. Pentti Karjalainen; Eetu Pekka Heikkinen

doi:10.4028/www.scientific.net/AMR.409.690

Paper Titles

Deformation Induced Pearlite Transformation and Spheroidization: Effect of Alloying Additions
p.666

Microstructure and Deformation Behavior of a Hot Forged 9%Cr Creep Resistant Steel
p.672

Effect of Microstructure on Formation of Ductile Fracture Surface in Steel Plate
p.678

Microstructure Characterization of White Layer Formed by Hard Turning and Wire Electric Discharge Machining in High Carbon Steel (AISI 52100)
p.684

Precipitation of Si and its Influence on Mechanical Properties of Type 441 Stainless Steel
p.690

Effects of Hot-Forging Process on Combination of Strength and Toughness in Ultra High-Strength TRIP-Aided Martensitic Steels
p.696

Carbon Distribution and the Influence on the Tempering Behaviour in a Hot-Work Tool Steel Aisi H11
p.702

Systematic Approach to Clarify the Mechanism of Dynamic Transformation in Fe-6Ni-0.1C Alloy
p.707

’Quenching and Partitioning’ - An In Situ Approach to Characterize the Process Kinetics and the Final Microstructure of TRIP-Assisted Steel
p.713

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 409Precipitation of Si and its Influence on...

Precipitation of Si and its Influence on Mechanical Properties of Type 441 Stainless Steel

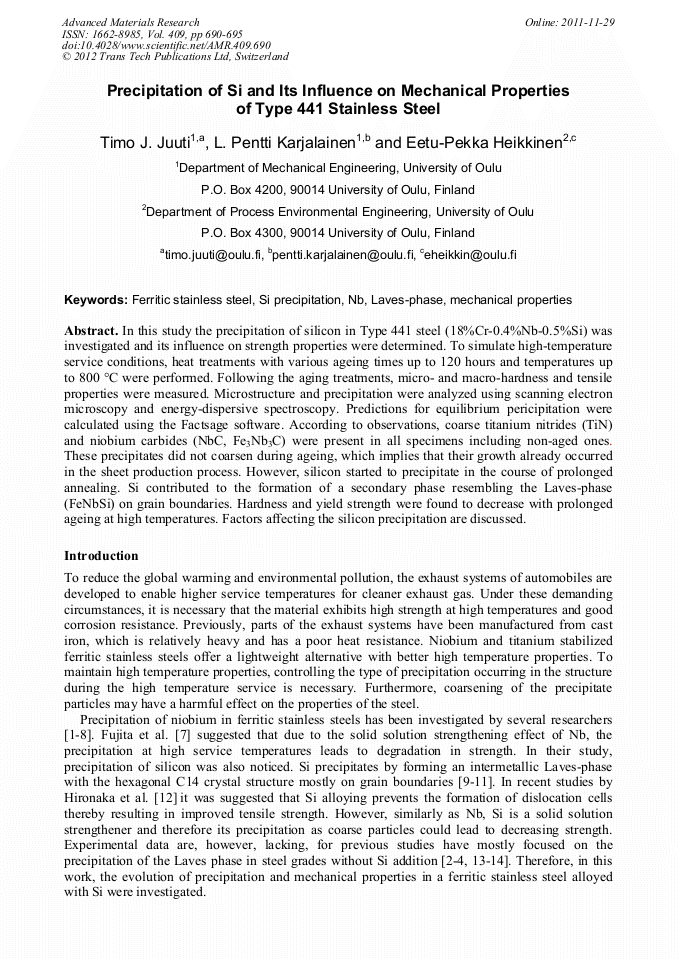

Abstract:

In this study the precipitation of silicon in Type 441 steel (18%Cr-0.4%Nb-0.5%Si) was investigated and its influence on strength properties were determined. To simulate high-temperature service conditions, heat treatments with various ageing times up to 120 hours and temperatures up to 800 °C were performed. Following the aging treatments, micro-and macro-hardness and tensile properties were measured. Microstructure and precipitation were analyzed using scanning electron microscopy and energy-dispersive spectroscopy. Predictions for equilibrium pericipitation were calculated using the Factsage software. According to observations, coarse titanium nitrides (TiN) and niobium carbides (NbC, Fe₃Nb₃C) were present in all specimens including non-aged ones. These precipitates did not coarsen during ageing, which implies that their growth already occurred in the sheet production process. However, silicon started to precipitate in the course of prolonged annealing. Si contributed to the formation of a secondary phase resembling the Laves-phase (FeNbSi) on grain boundaries. Hardness and yield strength were found to decrease with prolonged ageing at high temperatures. Factors affecting the silicon precipitation are discussed.
