Systematic Approach to Clarify the Mechanism of Dynamic Transformation in Fe-6Ni-0.1C Alloy

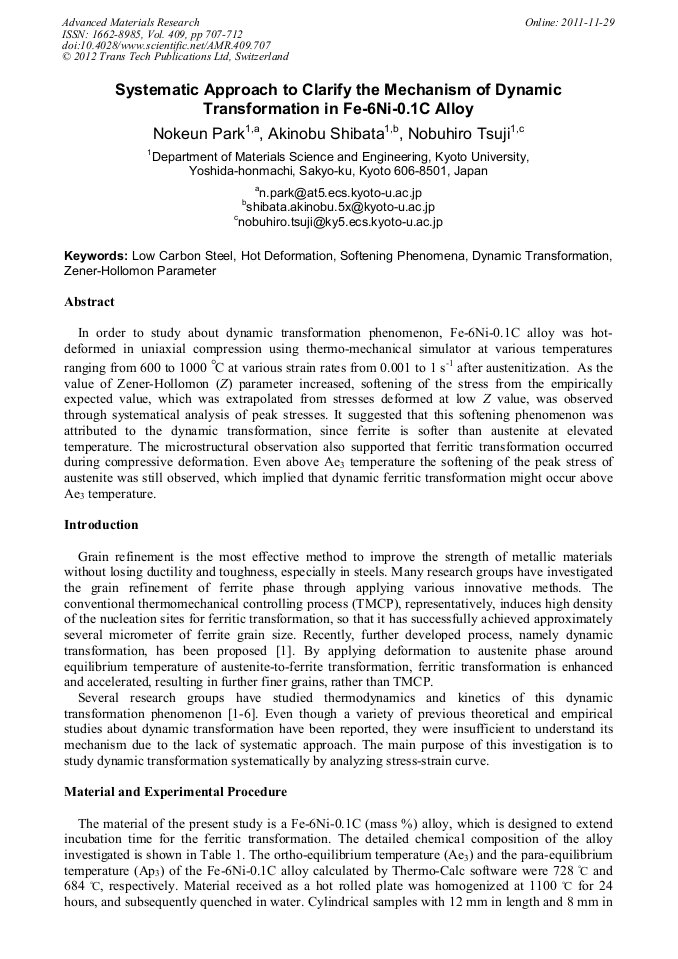

Abstract:

In order to study about dynamic transformation phenomenon, Fe-6Ni-0.1C alloy was hot-deformed in uniaxial compression using thermo-mechanical simulator at various temperatures ranging from 600 to 1000 °C at various strain rates from 0.001 to 1 s^-1 after austenitization. As the value of Zener-Hollomon (Z) parameter increased, softening of the stress from the empirically expected value, which was extrapolated from stresses deformed at low Z value, was observed through systematical analysis of peak stresses. It suggested that this softening phenomenon was attributed to the dynamic transformation, since ferrite is softer than austenite at elevated temperature. The microstructural observation also supported that ferritic transformation occurred during compressive deformation. Even above Ae₃ temperature the softening of the peak stress of austenite was still observed, which implied that dynamic ferritic transformation might occur above Ae₃ temperature.

• Periodical: Advanced Materials Research (Volume 409)
• Pages: 707-712
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.409.707
• Online since: November 2011
• Authors: Nokeun Park, Akinobu Shibata, Nobuhiro Tsuji
• Keywords: Dynamic Transformation, Hot Deformation, Low Carbon Steel, Softening Phenomena, Zener-Hollomon Parameter

References

[1] H. Yada, C. -M. Li and H. Yamagata: ISIJ Int., Vol. 40 (2000), p.200.

[2] M. R. Hickson, P. J. Hurley, R. K. Gibbs, G. L. Kelly and P. D. Hodgson: Met. Mat. Trans. A, Vol. 33A (2002), p.1019.

[3] J. -K. Choi, D. -H. Seo, J. -S. Lee, K. -K Um, and W. -Y. Choo: ISIJ Int. Vol. 43 (2003), p.746.

[4] Y. Adachi, P.G. Xu and Y. Tomota: ISIJ Int., Vol. 48 (2008), p.1056.

[5] H. Beladi, G. L. Kelly and P. D. Hodgson: Int. Mater. Rev., Vol. 52 (2007), p.14.

[6] Z. -D. Li, Z. -G. Yang, C. Zhang and Z. -Q. Liu: Mat. Sci. Eng. A, Vol. 527 (2010), p.4406.

[7] S. -I. Kim, Y. Lee, D. -L. Lee and Y. -C. Yoo: Mat. Sci. Eng. A, Vol. 355 (2003), p.384.

[8] M. J. Luton and C. M. Shellars: Acta Metall., Vol. 17 (1969), p.1033.

[9] E. I. Poliak and J. J. Jonas: Acta Mater., Vol. 44 (1996), p.127.

[10] C. Zener and J. H. Hollomon: J. Appl. Phys., Vol. 15 (1944), p.22.

[11] H. Y. Kim and S. H. Hong: Scripta Mater., Vol. 38 (1998), p.1517.

[12] T. Heumann et al, J. Phys. Chem. Solids, Vol. 29 (1968), p.1613.

[13] A. Heiming et al, J. Phys. F: Metal Physics: Vol. 18 (1988), p.1491.
