Investigation of the Substructure Evolution within Grains of Different Orientations during Recrystallization in a Commercial Al Alloy

Olga Sukhopar; M. Kuzmina; Günter Gottstein

doi:10.4028/www.scientific.net/AMR.409.71

Paper Titles

The Ca-Rich Corner of the Al-Ca-Zn System
p.51

Rheo-Extrusion of Hypereutectic Al-14.8Si-4.5Cu-1.1Mg Alloy
p.57

Aging Behavior of Al-Mg-Ge Alloys with Different Mg₂Ge Contents
p.63

The Crystal Structure of the β’-Phase Including Ag in Al-Mg-Si-Ag Alloy
p.67

Investigation of the Substructure Evolution within Grains of Different Orientations during Recrystallization in a Commercial Al Alloy
p.71

Microstructural Control of a Zn-Al Eutectoid Alloy by Hot-Rolling
p.77

TEM Observation of Cu and Ag Addition Al-Mg-Si Alloys
p.81

Behavior of Hydrogen in Electrolytically Charged Aluminum
p.84

Variation of Aging Behaviour for TM-Addition Al-Mg-Si Alloys
p.88

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 409Investigation of the Substructure Evolution within...

Investigation of the Substructure Evolution within Grains of Different Orientations during Recrystallization in a Commercial Al Alloy

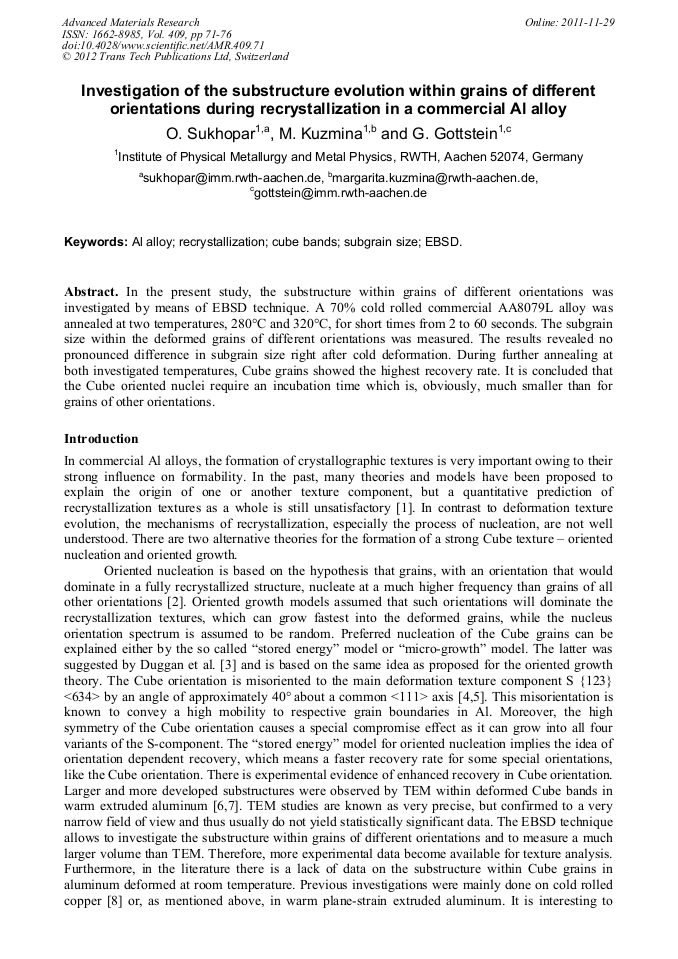

Abstract:

In the present study, the substructure within grains of different orientations was investigated by means of EBSD technique. A 70% cold rolled commercial AA8079L alloy was annealed at two temperatures, 280°C and 320°C, for short times from 2 to 60 seconds. The subgrain size within the deformed grains of different orientations was measured. The results revealed no pronounced difference in subgrain size right after cold deformation. During further annealing at both investigated temperatures, Cube grains showed the highest recovery rate. It is concluded that the Cube oriented nuclei require an incubation time which is, obviously, much smaller than for grains of other orientations.
