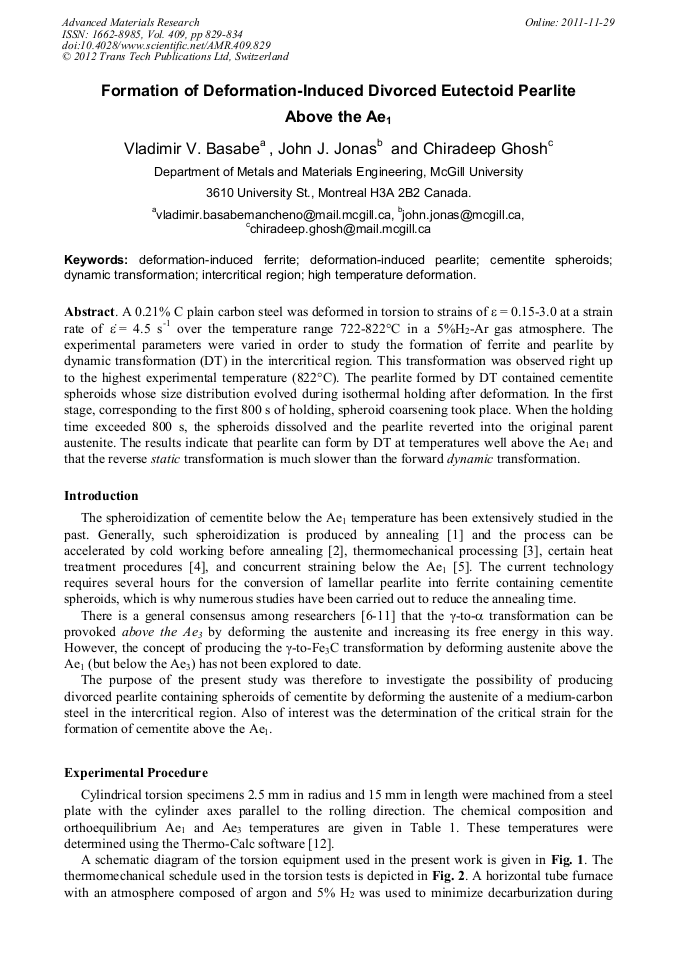

Formation of Deformation-Induced Divorced Eutectoid Pearlite above the Ae₁

Abstract:

A 0.21% C plain carbon steel was deformed in torsion to strains of ε = 0.15-3.0 at a strain rate of ε ̇= 4.5 s^-1 over the temperature range 722-822°C in a 5%H₂-Ar gas atmosphere. The experimental parameters were varied in order to study the formation of ferrite and pearlite by dynamic transformation (DT) in the intercritical region. This transformation was observed right up to the highest experimental temperature (822°C). The pearlite formed by DT contained cementite spheroids whose size distribution evolved during isothermal holding after deformation. In the first stage, corresponding to the first 800 s of holding, spheroid coarsening took place. When the holding time exceeded 800 s, the spheroids dissolved and the pearlite reverted into the original parent austenite. The results indicate that pearlite can form by DT at temperatures well above the Ae₁ and that the reverse static transformation is much slower than the forward dynamic transformation.

• Periodical: Advanced Materials Research (Volume 409)
• Pages: 829-834
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.409.829
• Online since: November 2011
• Authors: Vladimir V. Basabe, John J. Jonas, Chiradeep Ghosh
• Keywords: Cementite Spheroids, Deformation-Induced Ferrite, Deformation-Induced Pearlite, Dynamic Transformation, High Temperature Deformation, Intercritical Region

References

[1] C. M. Sellars, Quantitative Measurements of Pearlite Spheroidization, Metallography, 10 (1977) 89-105.

DOI: 10.1016/0026-0800(77)90044-1

[2] A. H. Holtzman, J. C. Danko and R. D. Stout, Spheroidization of Cold-Worked Pearlite, Trans. Met. Soc. AIME, 212 (1958) 475-478.

[3] H. Paqueton, A. Pineau, Acceleration of Pearlite Spheroidization by Thermomechanical Treatment, J. Iron Steel Inst., 209 (1971) 991-998.

[4] P. Payson, W. L. Hodapp and J. Leedor, The Spheroidization of Steel by Isothermal Transformation, Tram. Am. Soc. Metals, 28 (1940) 306-332.

[5] M. J. Harrigan and O. D. Sherby, Kinetics of Spheroidization of a Eutectoid Composition Steel as Influenced by Concurrent Straining, Mater. Sci. Eng., 7 (197l) 177-189.

DOI: 10.1016/0025-5416(71)90144-3

[6] Matsumura Y. and Yada H., Evolution of Ultrafine-grained Ferrite in Hot Successive Deformation, Transactions ISIJ, 27 (1987) 492-498.

DOI: 10.2355/isijinternational1966.27.492

[7] H. Yada, Y. Matsumura and T. Senuma, A New Thermomechanical Heat Treatment for Grain Refining in Low Carbon Steels, Proc. 1st Conf. Physical Metallurgy of Thermomechanical Processing of Steels and Other Metals (THERMEC-88), ed. by I. Tamura, ISIJ, Tokyo, (1988).

[8] Chen Y. and Chen Q., Dilatometric Investigation on Isothermal Transformation after Hot Deformation, J. Iron & Steel Res. Int., 10 (2003) 46-47.

[9] Sun X., Luo H., Dong H., Liu Q. and Weng Y., Microstructural Evolution and Kinetics for Post-dynamic Transformation in a Plain Low Carbon Steel, ISIJ Int., 48 (2008) 994-1000.

DOI: 10.2355/isijinternational.48.994

[10] V. V. Basabe and J. J. Jonas, The Ferrite Transformation in Hot Deformed 0. 036% Nb Austenite at Temperatures Above the Ae3, ISIJ Int., 50 (2010) 1185-1192.

DOI: 10.2355/isijinternational.50.1185

[11] V. V. Basabe, J. J. Jonas and H. Mahjoubi, Dynamic Transformation of a Low Carbon Steel at Temperatures above the Ae3, ISIJ Int., 51 (2011), 612-618.

DOI: 10.2355/isijinternational.51.612

[12] Thermo-Calc Software, http: www. thermocalc. se.

[13] C. W. Bale, E. Bélisle, P. Chartrand, S. A. Decterov, G. Eriksson, K. Hack, I. -H. Jung, Y. -B. Kang, J. Melançon, A. D. Pelton, C. Robelin and S. Petersen, FactSage Thermochemical Software and Databases – Recent Developments, Calphad, 33 (2009).

DOI: 10.1016/j.calphad.2008.09.009
