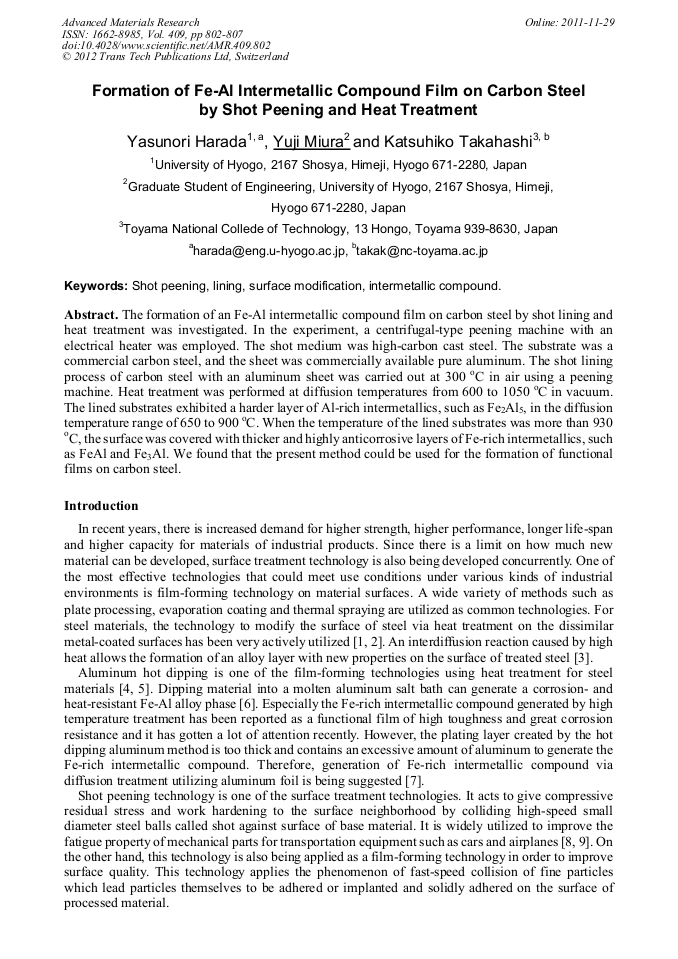

Formation of Fe-Al Intermetallic Compound Film on Carbon Steel by Shot Peening and Heat Treatment

Abstract:

The formation of an Fe-Al intermetallic compound film on carbon steel by shot lining and heat treatment was investigated. In the experiment, a centrifugal-type peening machine with an electrical heater was employed. The shot medium was high-carbon cast steel. The substrate was a commercial carbon steel, and the sheet was commercially available pure aluminum. The shot lining process of carbon steel with an aluminum sheet was carried out at 300 °C in air using a peening machine. Heat treatment was performed at diffusion temperatures from 600 to 1050 °C in vacuum. The lined substrates exhibited a harder layer of Al-rich intermetallics, such as Fe₂Al₅, in the diffusion temperature range of 650 to 900 °C. When the temperature of the lined substrates was more than 930 °C, the surface was covered with thicker and highly anticorrosive layers of Fe-rich intermetallics, such as FeAl and Fe₃Al. We found that the present method could be used for the formation of functional films on carbon steel.

• Periodical: Advanced Materials Research (Volume 409)
• Pages: 802-807
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.409.802
• Online since: November 2011
• Authors: Yasunori Harada, Yuji Miura, Katsuhiko Takahashi
• Keywords: Intermetallic Compound (IMC), Lining, Shot Peening, Surface Modification

References

[1] T. Noguchi, J. Kano, K. Noguchi, N. Horikawa and T. Nakamura: Int. J. Cast. Met. Res. Vol. 13 (2001), p.363.

[2] G.H. Awan and F. ul Hasan: Mater. Sci. Eng. AVol. 472 (2008), p.157.

[3] A.I. Kostrzhitskii, T.V. Cheban and R.A. Podolyan: Prot. Met. Vol. 44 (2008), p.603.

[4] V. Sivan: Met. Finish Vol. 78 (1980), p.21.

[5] W.F. Gale and J.E. King: Surf. Coat. Technol. Vol. 54/55 (1992), p.8.

[6] W-J. Cheng and C-J. Wang Chaur-jeng: Surf. Coat. Technol. Vol. 204 (2009), p.824.

[7] T. Sasaki and Y. Takao: Surf. Coat. Technol. Vol. 201 (2006), p.2131.

[8] M. Ramlakhan, C.Y. Wu, S. Watano R.N. Dave and R. Pfeffer: Powder Technol. Vol. 112 (2000), p.137.

[9] T. H. Van Steenkiste, J. R. Smith and R. E. Teets: Surface and Coatings Techno. Vol. 154 (2002), p.237.

[10] Y. Harada, K. Mori and S. Maki: J. Mater. Process. Technol. Vols. 80-81 (1998), p.309.

[11] Y. Harada and K. Fukaura: Key Eng. Mater. Vols. 340-341 (2007), p.865.

[12] T. Yakou, T. Sasaki and S. Kobayashi: Tetsu-to-Hagane Vol. 89 (2003), p.1178 (in Japanease).

[13] L.N. Larikov, V.M. Falchenko, D.F. Polishchuk, V.R. Ryabov and A.V. Lozovovskaya, in: Protective Coatings on Metals, ed. By G.V. Samsonov, vol. 3 (1971), p.66.
