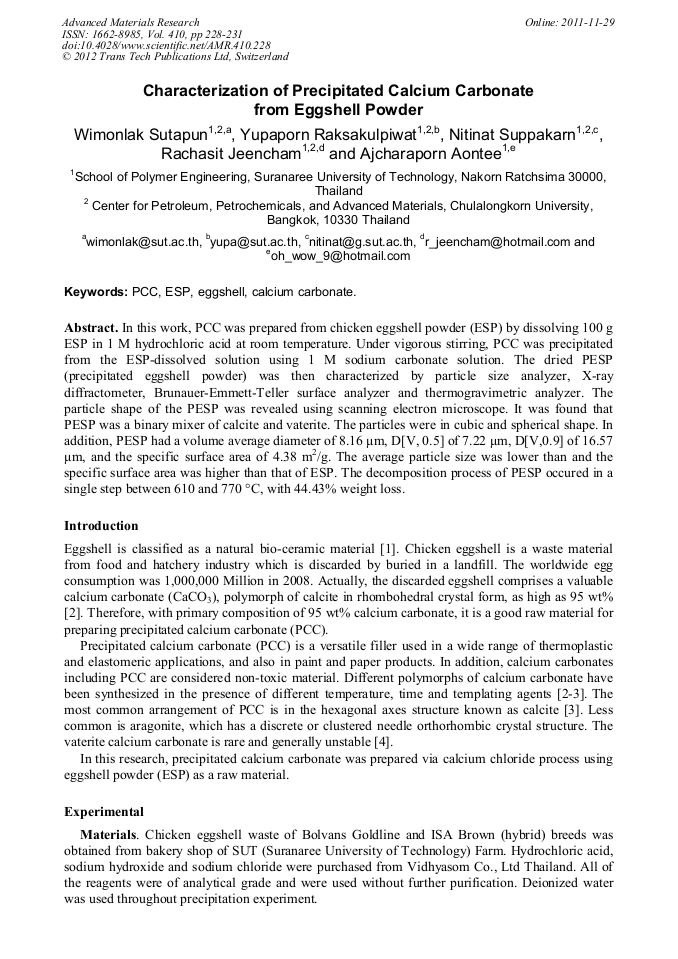

Characterization of Precipitated Calcium Carbonate from Eggshell Powder

Abstract:

In this work, PCC was prepared from chicken eggshell powder (ESP) by dissolving 100 g ESP in 1 M hydrochloric acid at room temperature. Under vigorous stirring, PCC was precipitated from the ESP-dissolved solution using 1 M sodium carbonate solution. The dried PESP (precipitated eggshell powder) was then characterized by particle size analyzer, X-ray diffractometer, Brunauer-Emmett-Teller surface analyzer and thermogravimetric analyzer. The particle shape of the PESP was revealed using scanning electron microscope. It was found that PESP was a binary mixer of calcite and vaterite. The particles were in cubic and spherical shape. In addition, PESP had a volume average diameter of 8.16 μm, D[V, 0.5] of 7.22 μm, D[V,0.9] of 16.57 μm, and the specific surface area of 4.38 m²/g. The average particle size was lower than and the specific surface area was higher than that of ESP. The decomposition process of PESP occured in a single step between 610 and 770 °C, with 44.43% weight loss.

• Periodical: Advanced Materials Research (Volume 410)
• Pages: 228-231
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.410.228
• Online since: November 2011
• Authors: Wimonlak Sutapun, Yupaporn Ruksakulpiwat, Nitinat Suppakarn, Rachasit Jeencham, Ajcharaporn Aontee
• Keywords: Calcium Carbonate, Eggshell, ESP, PCC

References

[1] P. Pakdeechote, Y. Ruksakulpiwat, N. Suppakarn, W. Sutapun, in: Proceedings of the 11th Pacific Polymer Conference (2009), P154.

[2] X. Xu, Y. Zhao, Q. Lai, Y. Hao: J. Appl. Polym. Sci. Vol. 119 (2011), p.319.

[3] F. S. Murakami, P. O. Rodrigues, C.M.T. Campos, M.A. S Silva: Ciênc. Tecnol. Aliment. Campinas. Vol. 27 (2007), p.658.

[4] Information on http: /www. specialtyminerals. com.

[5] S. Sanmuang, Y. Ruksakulpiwat, N. Suppakarn, W. Sutapun: Adv. Mater. Res. Vol. 47-50 (2008), p.490.

DOI: 10.4028/www.scientific.net/amr.47-50.490

[6] D. G. Dίaz, J. M. Navaza, B. Sanjurj: Chem. Eng. J. Vol. 116 (2006), p.203.

[7] J. W. Ahn, J. H. Kim, H. S. Park, J. A. Kim, C. Han, H. Kim: Korean J. Chem. Eng. Vol. 22 (2005), p.852.
