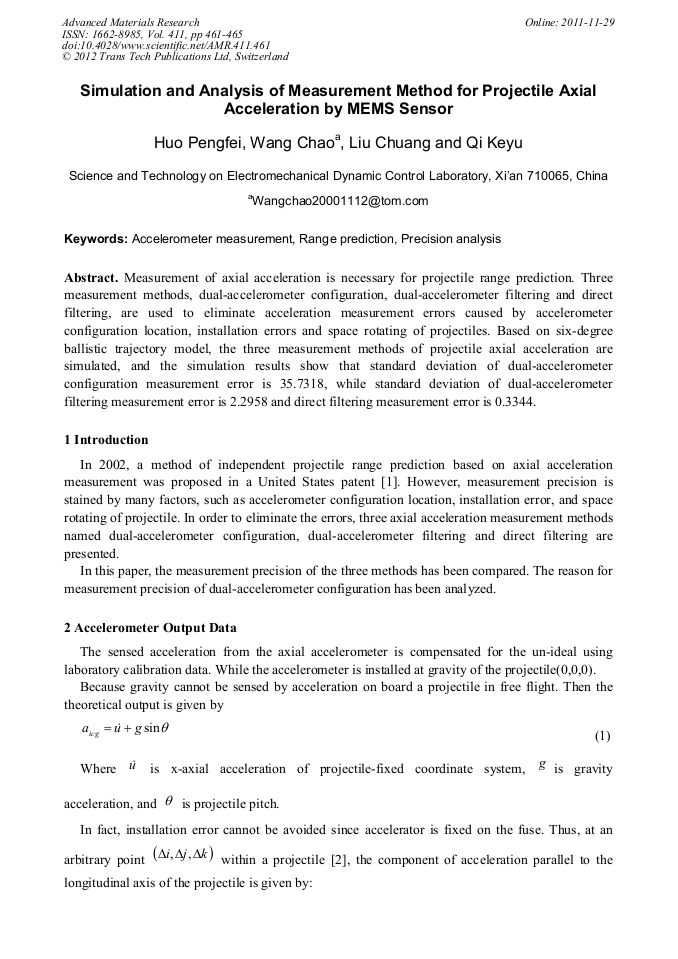

Simulation and Analysis of Measurement Method for Projectile Axial Acceleration by MEMS Sensor

Abstract:

Measurement of axial acceleration is necessary for projectile range prediction. Three measurement methods, dual-accelerometer configuration, dual-accelerometer filtering and direct filtering, are used to eliminate acceleration measurement errors caused by accelerometer configuration location, installation errors and space rotating of projectiles. Based on six-degree ballistic trajectory model, the three measurement methods of projectile axial acceleration are simulated, and the simulation results show that standard deviation of dual-accelerometer configuration measurement error is 35.7318, while standard deviation of dual-accelerometer filtering measurement error is 2.2958 and direct filtering measurement error is 0.3344.

• Periodical: Advanced Materials Research (Volume 411)
• Pages: 461-465
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.411.461
• Online since: November 2011
• Authors: Peng Fei Huo, Chao Wang, Ke Yu Qi
• Keywords: Accelerometer Measurement, Precision Analysis, Range Prediction

References

[1] Thomas E. Harkins, Joppa, Bradford S. Davis. Drag-brake Deployment Method and Apparatus for Range Error Correction of Spinning Gun-launched Artillery Projectiles. United States Patent, US 6345785 B1, (2002).

[2] Thomas E. Harkins. Understanding Body-fixed Sensor Output From Projectile Flight Experiments. ARL-TR-3029, September (2003).

DOI: 10.21236/ada418331

[3] Liu Chuang, Chen Chao, Huo Pengfei. Precision Analysis is of Projectile Range Prediction Method Based on Comparator Model. Proceedings of the 15th annual fuze conference China Ordnance Society.
