Design and Research of High-Speed CNC Platform Based on DCG

Abstract:

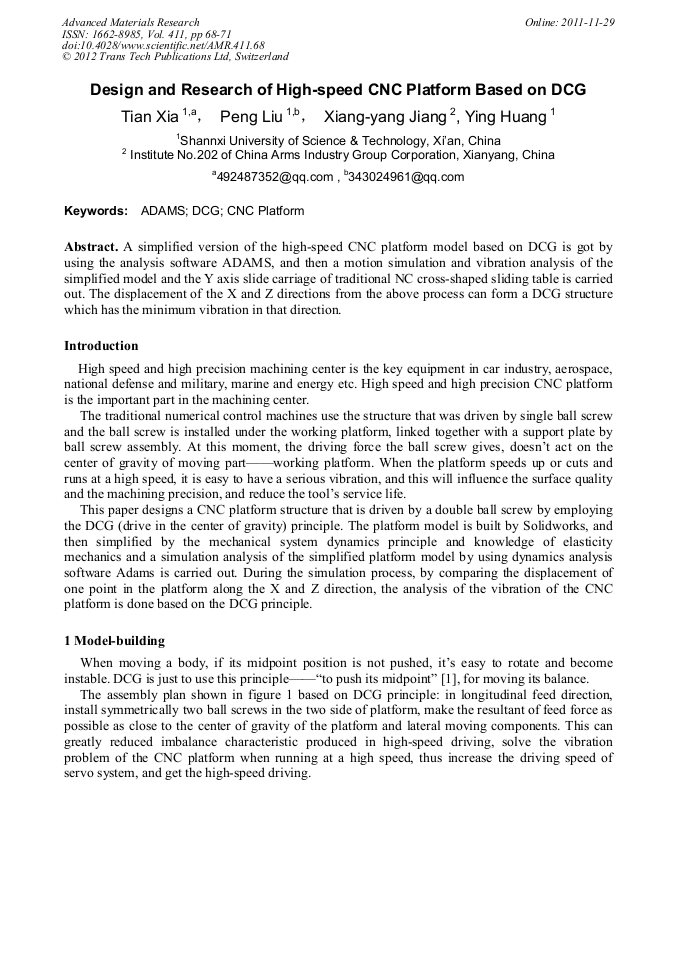

A simplified version of the high-speed CNC platform model based on DCG is got by using the analysis software ADAMS, and then a motion simulation and vibration analysis of the simplified model and the Y axis slide carriage of traditional NC cross-shaped sliding table is carried out. The displacement of the X and Z directions from the above process can form a DCG structure which has the minimum vibration in that direction.
