XPS Study on Barium Strontium Titanate (BST) Thin Films Etching in SF₆/Ar Plasma

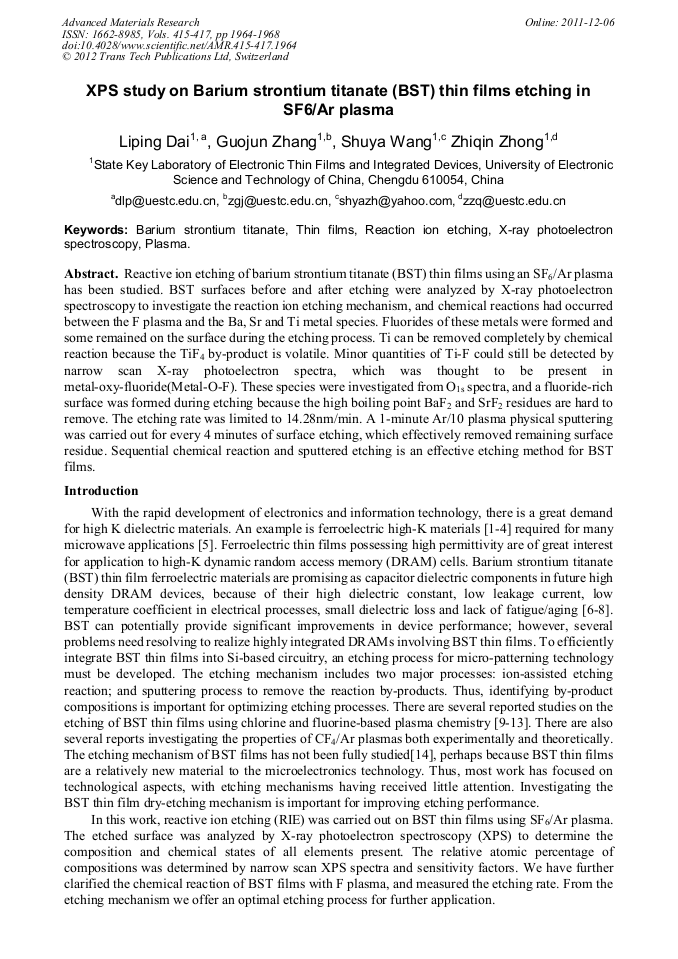

Abstract:

_{Subscript text}Reactive ion etching of barium strontium titanate (BST) thin films using an SF₆/Ar plasma has been studied. BST surfaces before and after etching were analyzed by X-ray photoelectron spectroscopy to investigate the reaction ion etching mechanism, and chemical reactions had occurred between the F plasma and the Ba, Sr and Ti metal species. Fluorides of these metals were formed and some remained on the surface during the etching process. Ti can be removed completely by chemical reaction because the TiF₄ by-product is volatile. Minor quantities of Ti-F could still be detected by narrow scan X-ray photoelectron spectra, which was thought to be present in metal-oxy-fluoride(Metal-O-F). These species were investigated from O_1s spectra, and a fluoride-rich surface was formed during etching because the high boiling point BaF₂ and SrF₂ residues are hard to remove. The etching rate was limited to 14.28nm/min. A 1-minute Ar/10 plasma physical sputtering was carried out for every 4 minutes of surface etching, which effectively removed remaining surface residue. Sequential chemical reaction and sputtered etching is an effective etching method for BST films.

• Periodical: Advanced Materials Research (Volumes 415-417)
• Pages: 1964-1968
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.415-417.1964
• Online since: December 2011
• Authors: Li Ping Dai, Guo Jun Zhang, Shu Ya Wang, Zhi Qin Zhong
• Keywords: Barium Strontium Titanate, Plasma, Reaction Ion Etching, Thin Film, X-Ray Photoelectron Spectroscopy (XPS)

References

[1] M. Gervais, F. Gervais , C. Champeaux,et al. Appl surf sci., Vol. 252(2006), p.3085

[2] D. P.Gaillot, Q. Zhao, F. L. Zhang;et al, Transparency cloak based on High-κ BST rods, Proceedings of the 38th, EuMC 2008, 869-872

DOI: 10.1109/eumc.2008.4751591

[3] M. Noda, K. Inoue, H. Zhu , et al. Chopperless-operated dielectric bolometer mode of infrared image sensor with ferroelectric BST film using improved operation. IEEE I SAF, 2000, 2, 783-786

DOI: 10.1109/isaf.2000.942436

[4] P.Belleville, J. Bigarre, P. Boy, Y. Montouillout, J Sol-Gel Sci Techn, Vol. 43 (2007), p.213

DOI: 10.1007/s10971-007-1580-4

[5] F.Ahamed, R. Bigger, A.Campbell, et al. Integr Ferroelectr, 66(2004), p.139

[6] F.Challali , M.P. Besland, D. Benzeggouta. et al, Thin Solid Films, 518(2010), 4619

[7] W.C. Hu, C.R. Yang, W. L. Zhang, et al. Integr Ferroelectr, Vol. 79(2006), p.131

[8] T. J. Palathinkal , H. F. Cheng, Y. C. Lee , et al, Integr Ferroelectr, Vol. 66(2004), p.213

[9] L.Stafford, J.Margot, O.Langlois, J Vac Sci Technol. A. 21(2003), p.1247

[10] S. K.Choi, D. P.Kim, C-II.Kim, et al. J Vac Sci Technol. A. Vol. 19(2001), 1063

[11] G. H. Kim, K. T.Kim, C-II.Kim, J. Vac. Sci. Technol. A. 23(2005), p.894

[12] B. Zhang, Z. C.Quan, T. J. Zhang, et al. J. Appl. Phys. Vol. 101(2007), 014107

[13] P. S.Kang, K. T.Kim, D.P. Kim, et al, J. Vac. Sci. Technol. A. Vol. 21(2003), 1469

[14] L. P.Dai, S. Y. Wang, P.Shu, et al, Chinese Sci Bull, 56(2011), p.4561
