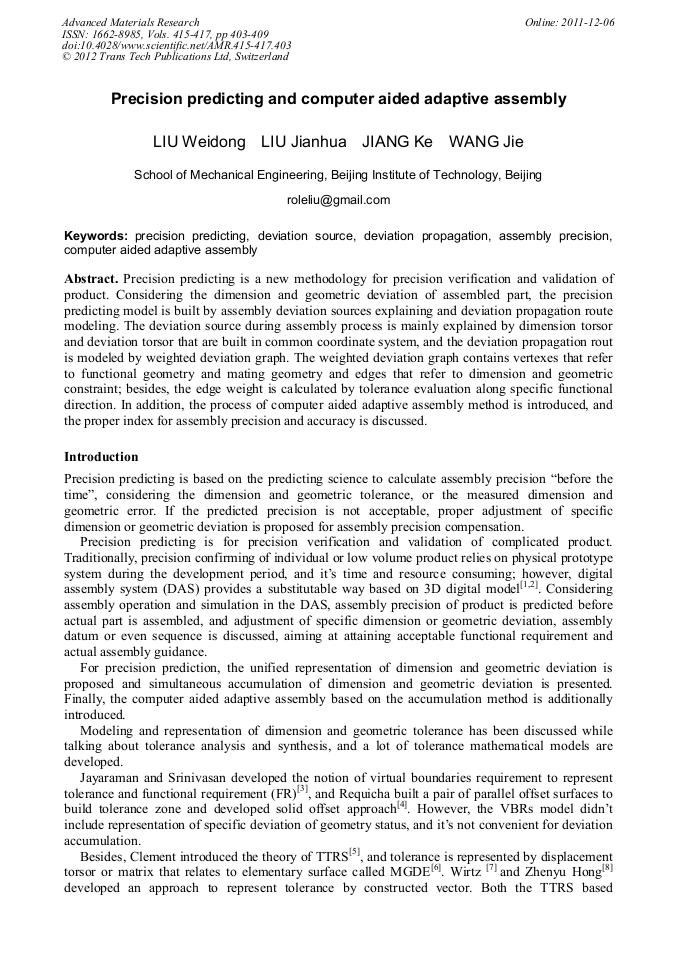

Precision Predicting and Computer Aided Adaptive Assembly

Abstract:

Precision predicting is a new methodology for precision verification and validation of product. Considering the dimension and geometric deviation of assembled part, the precision predicting model is built by assembly deviation sources explaining and deviation propagation route modeling. The deviation source during assembly process is mainly explained by dimension torsor and deviation torsor that are built in common coordinate system, and the deviation propagation rout is modeled by weighted deviation graph. The weighted deviation graph contains vertexes that refer to functional geometry and mating geometry and edges that refer to dimension and geometric constraint; besides, the edge weight is calculated by tolerance evaluation along specific functional direction. In addition, the process of computer aided adaptive assembly method is introduced, and the proper index for assembly precision and accuracy is discussed.

• Periodical: Advanced Materials Research (Volumes 415-417)
• Pages: 403-409
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.415-417.403
• Online since: December 2011
• Authors: Wei Dong Liu, Jian Hua Liu, Ke Jiang, Jie Wang
• Keywords: Assembly Precision, Computer Aided Adaptive Assembly, Deviation Propagation, Deviation Source, Precision Predicting

References

[1] Heng Wang. Pre-analysis technology of product assembly precision [D]. Beijing, Beijing institute of Technology, 2005. (in chinese)

[2] Heng Wang, Ruxin Ning, Chentong Tang. Chinese Journal of Mechanical Engineering, 41(6): 181-187, 2005. (in chinese)

[3] Srinivasan V. IBM Journal of Research Development, 33(2): 90- 104, 1989.

[4] Requieha AAG, Chan SC. Robotics and Automation, 2(3): 156- 166, 1986.

[5] Clement A, Riviere A, Serre P, Valade C. The TTRSs:13 constraints for dimensioning and tolerancing [C]. Proceedings of 5th CIRP Seminars on Computer Aided Tolerancing, 157-170, 1997.

DOI: 10.1007/978-1-4615-5797-5_9

[6] Clement A, Riviere A. A declarative information model for functional requirements [C], Proceedings of the 4th CIRP Seminar on Computer Aided Tolerancing, Tokyo: l-20,1995.

[7] A. Wirtz. Vectorial tolerancing a basic element for quality control[C]. Proceedings of the 3rd CIRP Seminar on Computer Aided Tolerancing, Cachan (F), 115-128,1993.

[8] Zhenyu Hong, Jiangping Mei, Xueman Zhao, Tian Huang. Chinese Journal of Mechanical Engineering, 42(12): 65-69,2006. (in chinese)

[9] Shiyu Zhou, Qiang Huang, Jianjun Shi. IEEE transactions on robotics and automation, 19( 2), 2003.

[10] Zhaoqin Tian, Xinming Lai, Zhongqin Lin. Chinese journal of mechanical engineering.43(2):202-209, 2007. (in Chinese)

[11] Whitney DE, Gilbert OL. IEEE International Conference on Robotics and Automation, 314-321, 1993.
