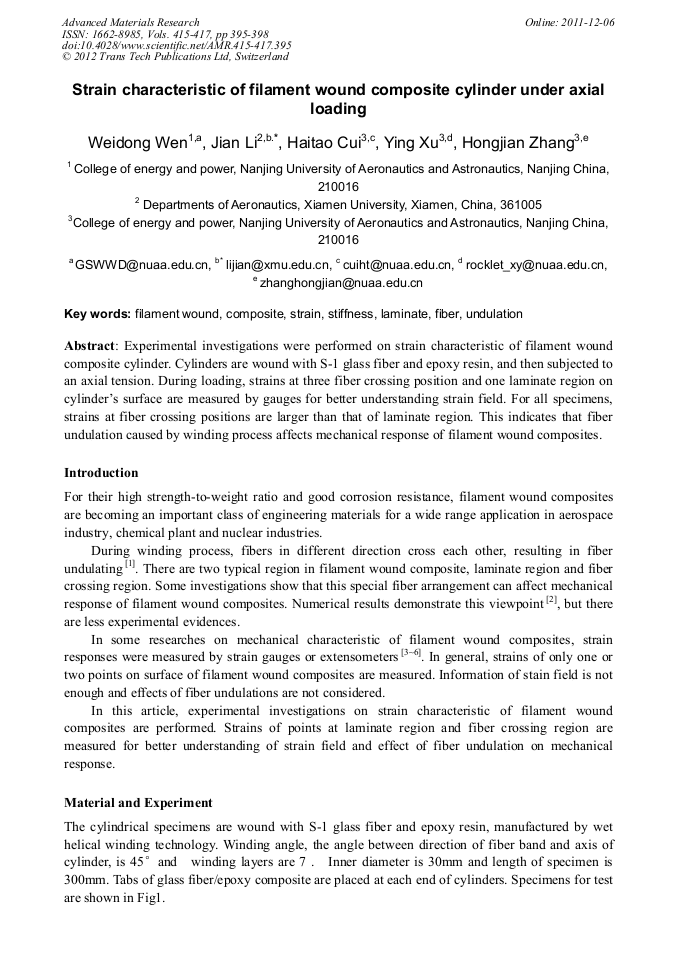

Strain Characteristic of Filament Wound Composite Cylinder under Axial Loading

Abstract:

Experimental investigations were performed on strain characteristic of filament wound composite cylinder. Cylinders are wound with S-1 glass fiber and epoxy resin, and then subjected to an axial tension. During loading, strains at three fiber crossing position and one laminate region on cylinder’s surface are measured by gauges for better understanding strain field. For all specimens, strains at fiber crossing positions are larger than that of laminate region. This indicates that fiber undulation caused by winding process affects mechanical response of filament wound composites.

• Periodical: Advanced Materials Research (Volumes 415-417)
• Pages: 395-398
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.415-417.395
• Online since: December 2011
• Authors: Wei Dong Wen, Jian Li, Hai Tao Cui, Ying Xu, Hong Jian Zhang
• Keywords: Composite, Fiber, Filament Wound, Laminates, Stiffness, Strain, Undulation

References

[1] Zhou, C W，Xia, Z Yong, X. Micro Mechanical Model of Filament Wound Composite Pipe with Damage Analysis[C]. Proceedings of 2006 ASME Pressure Vessels and Piping Division Conference July 23-27, 2006, Vancouver, BC, Canada PVP2006-ICPVT11-93298

DOI: 10.1115/pvp2006-icpvt-11-93298

[2] Morozov E V. The effect of filament-winding mosaic patterns on the strength of thin-walled composite shells . Composite Structure,2006,76(1-2):123-129

DOI: 10.1016/j.compstruct.2006.06.018

[3] Bai J, Seeleuthner P, Bormpard P. Mechanical behaviour of ±55°filament wound glass fibre/epoxy-resin tubes Ⅰ:microstructural analyses,mechanical behavior and damage mechanisms of composite tubes under pure tensie loading,pure internal pressure, and combined loading, Composite Science and Technology. 1997,57(2):141-153

DOI: 10.1016/s0266-3538(96)00124-8

[4] M.Caroll, F.Ellyin, D. Kujawski etc，The rate－dependent behavior of ±55°filament wound glass fiber/epoxy tubes under biaxial loading. Composite Science and technology. 1995 55(4):391-403

DOI: 10.1016/0266-3538(95)00119-0

[5] Martens M, Ellyin F. Biaxial monotonic behaviors of a multidirectional glass fiber epoxy pipes. Composite: Part A, 2000,31(9):1001-1014

DOI: 10.1016/s1359-835x(00)00041-5

[6] Mertiny P, Ellyin F, Hothan A, experimental investigation on the effect of multi-angle filament winding on the strength of tubular composite structures. Composite Science and Technology, 2004,64(1):1-9

DOI: 10.1016/s0266-3538(03)00198-2

[7] Hu G, Bai J, Demianouchko E, Bompard P. Mechanical behaviour of ±55° filament-wound glass-fibreepoxy-resin tubes III: Macro mechanical mode macroscopic behavior behaviour of tubular structures with damage and failure envelope prediction. Composite Science and Technology, 1998,58(1):19-29

DOI: 10.1016/s0266-3538(97)00078-x

[8] Rosenow M W K, Wind angle effect in glass fiber-reinforced polyest filament wound pipes, Composite, 1984, 15(2): 144-152

DOI: 10.1016/0010-4361(84)90727-4

[9] M.F.S.Al.Khalil, P.D. Soden. Theoretical through-thickness elastic constants for filament wound tubes. Internal Journal Mechanical Science, 1994,36(1):49-62

DOI: 10.1016/0020-7403(94)90006-x

[10] M. Xia, Takayanagi H,. Kemmochi K. Analysis of multi-layered filament-wound composite pipes under internal pressure. Composite Structures, 2001,53(4): 483-491

DOI: 10.1016/s0263-8223(01)00061-7

[11] Wild P M, Vickers G M. Analysis of filament-wound cylindrical shells under combined centrifugal, pressure and axial loading. Composite Part A 1997, 28(1): 47-55

DOI: 10.1016/s1359-835x(96)00093-0

[12] Park J S, Hong C S, King C G, Kim C U. Analysis of filament wound composite structure considering change of filament angles through thickness direction, Composite structure, 2002,50:63-71

DOI: 10.1016/s0263-8223(01)00137-4

[13] Demiaouchko E, Bai J. Stress state analyses of a ±55° filament-wound composite tube with damage effect. Composite Structure, 1997,37(2):233-239

DOI: 10.1016/s0263-8223(97)80015-3
