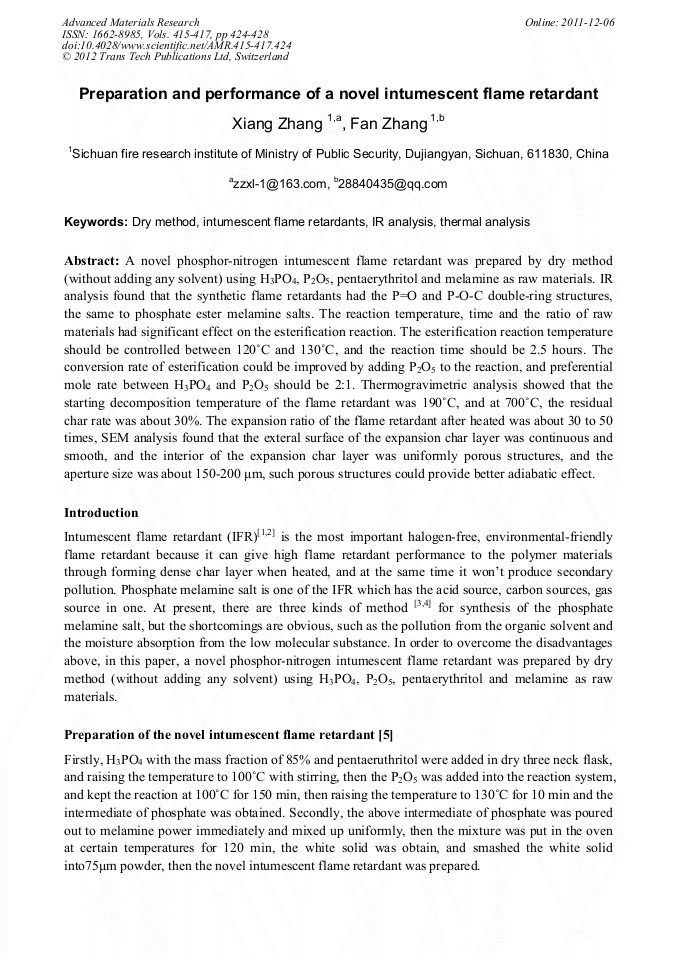

Preparation and Performance of a Novel Intumescent Flame Retardant

Abstract:

A novel phosphor-nitrogen intumescent flame retardant was prepared by dry method (without adding any solvent) using H₃PO₄, P₂O₅, pentaerythritol and melamine as raw materials. IR analysis found that the synthetic flame retardants had the P=O and P-O-C double-ring structures, the same to phosphate ester melamine salts. The reaction temperature, time and the ratio of raw materials had significant effect on the esterification reaction. The esterification reaction temperature should be controlled between 120°C and 130°C, and the reaction time should be 2.5 hours. The conversion rate of esterification could be improved by adding P₂O₅ to the reaction, and preferential mole rate between H₃PO₄ and P₂O₅ should be 2:1. Thermogravimetric analysis showed that the starting decomposition temperature of the flame retardant was 190°C, and at 700°C, the residual char rate was about 30%. The expansion ratio of the flame retardant after heated was about 30 to 50 times, SEM analysis found that the exteral surface of the expansion char layer was continuous and smooth, and the interior of the expansion char layer was uniformly porous structures, and the aperture size was about 150-200 μm, such porous structures could provide better adiabatic effect.

• Periodical: Advanced Materials Research (Volumes 415-417)
• Pages: 424-428
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.415-417.424
• Online since: December 2011
• Authors: Xiang Zhang, Fan Zhang
• Keywords: Dry Method, Intumescent Flame Retardant, IR Analysis, Thermal Analysis

References

[1] Xuefeng Wang, Rongliang Wu, Chunmei Sun, etc. Study on the Preparation and Application of Intumescent Flame Retardants Containing Various Phosphates Melamine Salt [J]. Journal of functional polymer, 2004, 17(4) : 630-634.

[2] Chunmei Sun, Zheng Gong, Rongliang Wu, etc. Study on the Preparation of Tripentaerythritol Phosphite Intumescent Flame Retardant and Its Application in Epoxy Resins [J]. Journal of polymer, 2005, 18(2): 260-264.

[3] Shengwen Wang, Feifei Li, Yinxiang Qiu. Progress of research trinity-intumescent flame retardant system [J]. Chemical intermediates, 2008, 05:23-29.

[4] Xingyi Wang, Yuan Li, Weiwei Liao, et al. A new intumescent flame-retardant: preparation, surface modification, and its application in polypropylene [J]. Polym. Adv. Technol. 2008, 19: 1055–1061.

DOI: 10.1002/pat.1077

[5] Xiang Zhang, Yong Tang, Feng Li, etc. Preparation of phosphate and borate melamine salt flame retardant by dry method [P]. Chinese patent, CN101143876A, 2008.
