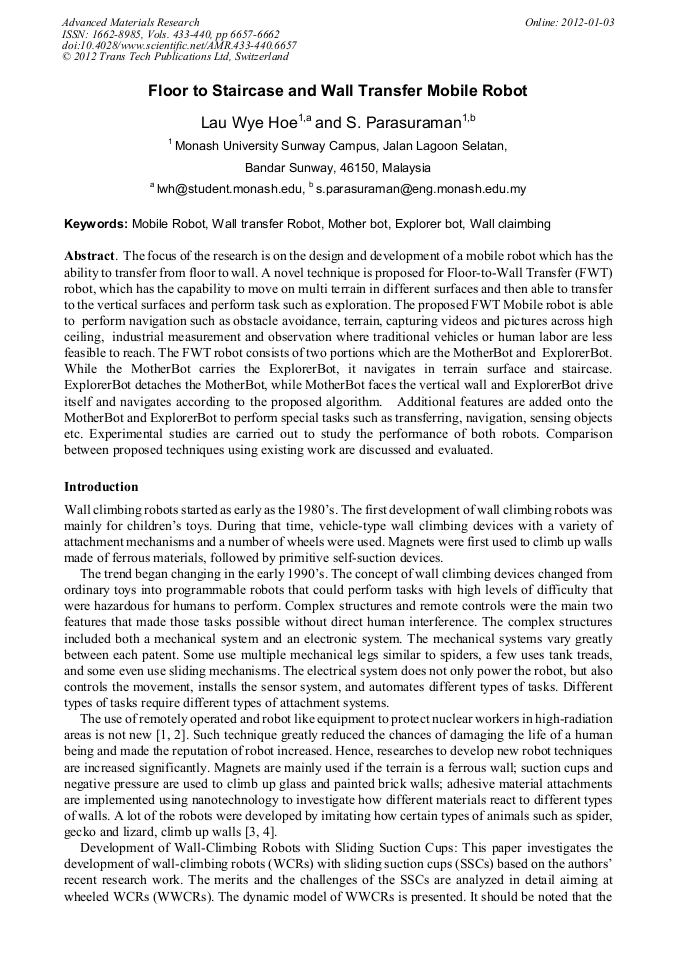

Floor to Staircase and Wall Transfer Mobile Robot

Abstract:

The focus of the research is on the design and development of a mobile robot which has the ability to transfer from floor to wall. A novel technique is proposed for Floor-to-Wall Transfer (FWT) robot, which has the capability to move on multi terrain in different surfaces and then able to transfer to the vertical surfaces and perform task such as exploration. The proposed FWT Mobile robot is able to perform navigation such as obstacle avoidance, terrain, capturing videos and pictures across high ceiling, industrial measurement and observation where traditional vehicles or human labor are less feasible to reach. The FWT robot consists of two portions which are the MotherBot and ExplorerBot. While the MotherBot carries the ExplorerBot, it navigates in terrain surface and staircase. ExplorerBot detaches the MotherBot, while MotherBot faces the vertical wall and ExplorerBot drive itself and navigates according to the proposed algorithm. Additional features are added onto the MotherBot and ExplorerBot to perform special tasks such as transferring, navigation, sensing objects etc. Experimental studies are carried out to study the performance of both robots. Comparison between proposed techniques using existing work are discussed and evaluated.

• Periodical: Advanced Materials Research (Volumes 433-440)
• Pages: 6657-6662
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.433-440.6657
• Online since: January 2012
• Authors: Lau Wye Hoe, S. Parasuraman
• Keywords: Explorer Bot, Mobile Robot, Mother Bot, Wall Transfer Robot, Wall-Climbing

References

[1] Taylor Moore. Robots for nuclear power plants pages 32, AUTUMN (1985).

[2] Robert Ayres and Steve Miller, Technology Review May/June (1982).

[3] United States Patent and Trademark Office. Wall-Climbing Robot. http: /www. uspto. gov (Accessed: April 13, 2010).

[4] Shigeo Hirose, Hiroshi Tsutsumitake, Ryousei Toyama, Kengo Kobayashi. Disk Rover: A Wall-Climbing Robot Using Permanent Magnet Disks. Proceedings of the 1992 IEEE/RSJ International Conference on Intelligent Robots and Systems, Raleigh, NC, pages 2074 – 2079, July 7 – 10, (1992).

DOI: 10.1109/iros.1992.601942

[5] Michael P. Murphy, William Tso, Michael Tanzini, MetinSitti. Wallbot: An Agile Small-Scale Wall Climbing Robot Utilizing Pressure Sensitive Adhesives. Proceedings of the 2006 EEE/RSJ International Conference on Intelligent Robots and Systems, Beijing, China, pages 3411 – 3416, October 9 – 15, (2006).

DOI: 10.1109/iros.2006.282578

[6] http: /www. newlaunches. com/archives/the_wallclimbing_robot. php (Accessed: April 13, 2010).

[7] S. W. Ryu, J. J. Park, S. M. Ryew, H. R. Choi. Self-Contained Wall-Climbing Robot with Closed Linked Mechanism. Proceedings of the 2001 IEEE/RSJ International Conference on Intelligent Robots and Systems, Maui, Hawaii, pages 839 – 844, October 29 – November 3, (2001).

DOI: 10.1109/iros.2001.976273

[8] Kagubibe, Inspection robot for tank wall in nuclear power plant, International Conference on Advanced Robot, Dearborn, MI, USA (1987) pp.177-180.

[9] T. Fukuda & F. Arai, Crawler Type wall surface mobile robot having multiple suckers, Japan/USA Symposium on Flexible Automation. ASME, San Francisco, CA, USA (1992) No. 1, pp.769-772.

[10] S. Hagen, Neptune: Above-Ground Storage Tank Inspection Robot System, Proc IEEE International Conf. on Robotic and Automation, San Diego, California (1994) p.2014-(2022).

DOI: 10.1109/robot.1994.351293

[11] M. Peisun & C. Jiaping, Wall Climbing for Measuring oil Tank's Volume, Shanghai Jinotong University Xueboo 30, No. 11. 159-164 (1996).

[12] O Khatib, Real-time obstacle avoidance for manipulators and mobile robots, International Journal of Robotics Research, v. 5 n. 1, pp.90-98, Spring, (1986).

DOI: 10.1177/027836498600500106
