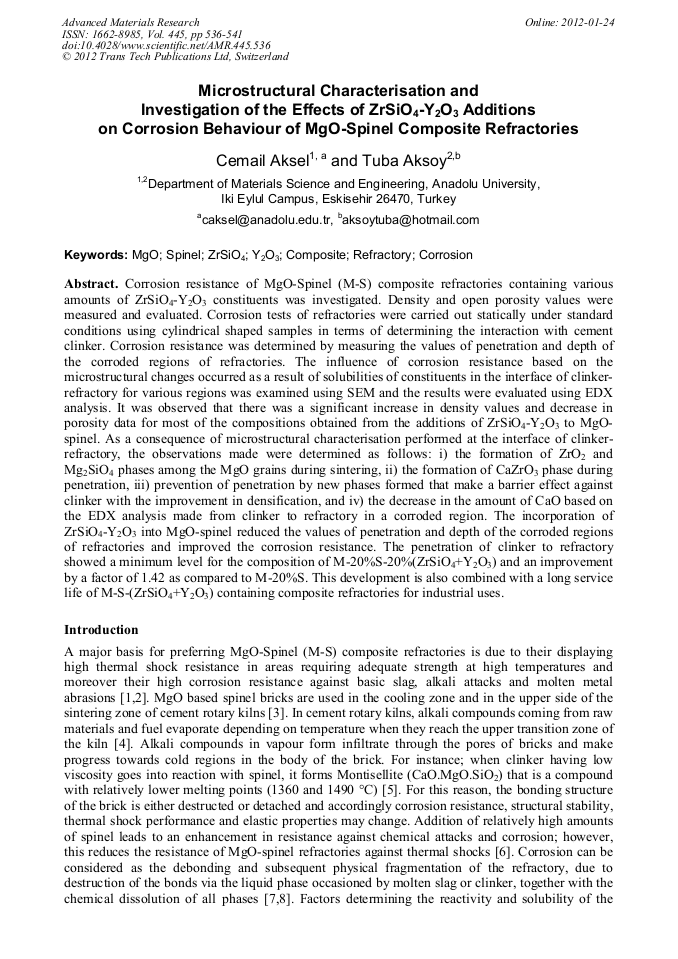

Microstructural Characterisation and Investigation of the Effects of ZrSiO₄-Y₂O₃ Additions on Corrosion Behaviour of MgO-Spinel Composite Refractories

Abstract:

Corrosion resistance of MgO-Spinel (M-S) composite refractories containing various amounts of ZrSiO₄-Y₂O₃ constituents was investigated. Density and open porosity values were measured and evaluated. Corrosion tests of refractories were carried out statically under standard conditions using cylindrical shaped samples in terms of determining the interaction with cement clinker. Corrosion resistance was determined by measuring the values of penetration and depth of the corroded regions of refractories. The influence of corrosion resistance based on the microstructural changes occurred as a result of solubilities of constituents in the interface of clinker-refractory for various regions was examined using SEM and the results were evaluated using EDX analysis. It was observed that there was a significant increase in density values and decrease in porosity data for most of the compositions obtained from the additions of ZrSiO₄-Y₂O₃ to MgO-spinel. As a consequence of microstructural characterisation performed at the interface of clinker-refractory, the observations made were determined as follows: i) the formation of ZrO₂ and Mg₂SiO₄ phases among the MgO grains during sintering, ii) the formation of CaZrO₃ phase during penetration, iii) prevention of penetration by new phases formed that make a barrier effect against clinker with the improvement in densification, and iv) the decrease in the amount of CaO based on the EDX analysis made from clinker to refractory in a corroded region. The incorporation of ZrSiO₄-Y₂O₃ into MgO-spinel reduced the values of penetration and depth of the corroded regions of refractories and improved the corrosion resistance. The penetration of clinker to refractory showed a minimum level for the composition of M-20%S-20%(ZrSiO₄+Y₂O₃) and an improvement by a factor of 1.42 as compared to M-20%S. This development is also combined with a long service life of M-S-(ZrSiO₄+Y₂O₃) containing composite refractories for industrial uses.

• Periodical: Advanced Materials Research (Volume 445)
• Pages: 536-541
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.445.536
• Online since: January 2012
• Authors: Cemail Aksel, Tuba AKSOY
• Keywords: Composite, Corrosion, MgO, Refractory, Spinel, Y₂O₃, ZrSiO₄

References

[1] G.R. Eusner and D.H. Hubble: J. Am. Ceram. Soc. Vol. 43 (1960), p.292.

[2] C. Aksel and F.L. Riley: Magnesia-Spinel (MgAl2O4) Refractory Ceramic Composites, Ceramic Matrix Composites: Microstructure, Properties and Applications (Woodhead Publishing Limited and CRC Press LLC, USA 2006).

DOI: 10.1201/9781439823743.pt4

[3] H. Uchikawa, H. Hagiwara, M. Shirasaka and T. Watanabe: Interceram Special Issue Vol. 33 (1984), p.386.

[4] K. Tokunaga, H. Kozuka, T. Honda and F. Tanemura: Proc. UNITECR'91 Congress, Aachen, Germany (1991), p.431.

[5] V. Gabis and L. Graba: Euro Ceram II, Proc. 2nd European Ceram Soc Conf, Augsburg, Germany (1991), Vol. 3, p.2593.

[6] B. Moore, M. Frith and D. Evans: World Cement (1991), p.5.

[7] C. Aksel, F.L. Riley and F. Konieczny: Key Eng. Mater. Vols. 264-268 (2004), p.1803.

[8] S. Zhang and W.E. Lee: Int. Mater. Rev. Vol. 45 (2000), p.41.

[9] C. Aksel: Ceram. Int. Vol. 29 (2003), p.305.

[10] C. Aksel, M. Dexet, N. Logen, F. Porte, F.L. Riley and F. Konieczny: J. Eur. Ceram. Soc. Vol. 23 (2003), p. (2083).

[11] R. Sarkar, H.S. Tripathi and A. Ghosh: Mater. Lett. Vol. 58 (2004), p.2186.

[12] BS 7134: Methods for Determination of Density and Porosity (British Standard Testing of Engineering Ceramics, Part 1, Section 1. 2, 1989).

[13] R.A. McCauley: Corrosion Test Procedures, Corrosion of Ceramics (Marcel Dekker Inc, New York, USA 1995).

[14] J.H. Chesters: Testing, Refractories: Production and Properties (The Iron and Steel Institute, London 1973).
