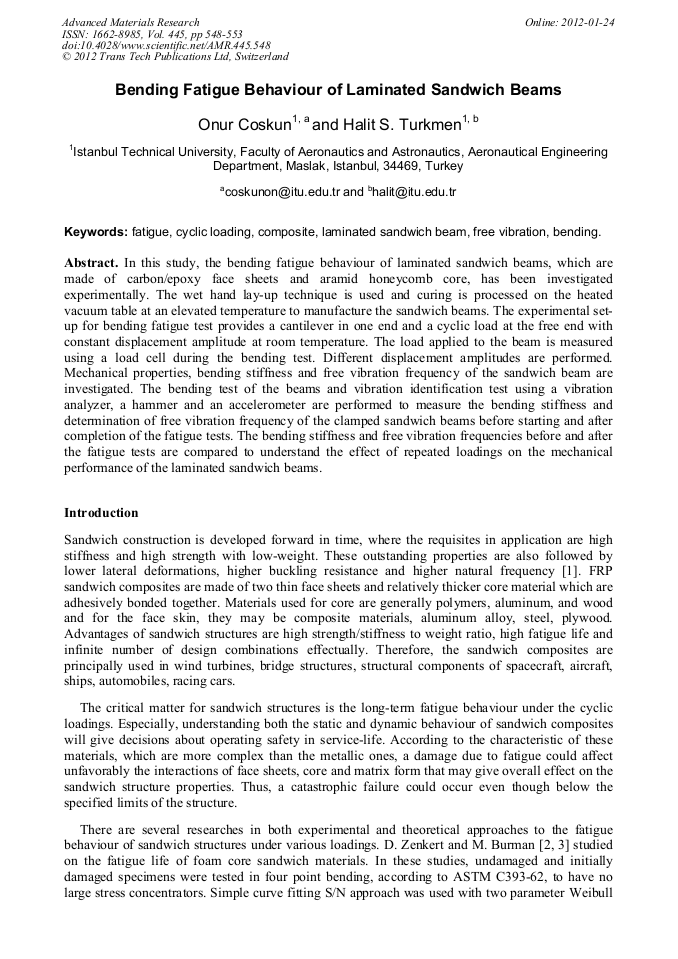

Bending Fatigue Behaviour of Laminated Sandwich Beams

Abstract:

In this study, the bending fatigue behaviour of laminated sandwich beams, which are made of carbon/epoxy face sheets and aramid honeycomb core, has been investigated experimentally. The wet hand lay-up technique is used and curing is processed on the heated vacuum table at an elevated temperature to manufacture the sandwich beams. The experimental set-up for bending fatigue test provides a cantilever in one end and a cyclic load at the free end with constant displacement amplitude at room temperature. The load applied to the beam is measured using a load cell during the bending test. Different displacement amplitudes are performed. Mechanical properties, bending stiffness and free vibration frequency of the sandwich beam are investigated. The bending test of the beams and vibration identification test using a vibration analyzer, a hammer and an accelerometer are performed to measure the bending stiffness and determination of free vibration frequency of the clamped sandwich beams before starting and after completion of the fatigue tests. The bending stiffness and free vibration frequencies before and after the fatigue tests are compared to understand the effect of repeated loadings on the mechanical performance of the laminated sandwich beams.

You might also be interested in these eBooks

Materials and Manufacturing Technologies XIV

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 445)

Pages:

548-553

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.445.548

Citation:

Cite this paper

Online since:

January 2012

Authors:

Onur Coskun, Halit S. Türkmen

Keywords:

Bending, Composite, Cyclic Loading, Fatigue, Free Vibration, Laminated Sandwich Beam

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J.R. Vinson: The Behavior of Sandwich Structures of Isotropic and Composite Materials, (Technomic Publictions, Lancaster 1999).

Google Scholar

[2] M. Burman and D. Zenkert: Fatigue of Foam Core Sandwich Beams - 1: Undamaged Specimens, Int. J. Fatigue Vol. 19 No. 7 (1997), p.551–561.

DOI: 10.1016/s0142-1123(97)00069-8

Google Scholar

[3] M. Burman and D. Zenkert: (1997). Fatigue of Foam Core Sandwich Beams - 2: Effect of Initial Damage, Int. J. Fatigue Vol. 19 No. 7 (1997), p.563–578.

DOI: 10.1016/s0142-1123(97)00068-6

Google Scholar

[4] M. Burman and D. Zenkert: Fatigue of Undamaged and Damaged Honeycomb Sandwich Beams, Journal of Sandwich Structures and Materials Vol. 2 (2000), pp.50-73.

DOI: 10.1177/109963620000200103

Google Scholar

[5] S.D. Clark, R.A. Shenoi and H.G. Allen: Modelling the fatigue behaviour of sandwich beams under monotonic, 2-step and block-loading regimes, Composites Science and Technology Vol. 59 (1999), pp.471-486.

DOI: 10.1016/s0266-3538(98)00088-8

Google Scholar

[6] A. Petras and M.P.F. Sutcliffe: Failure mode maps for honeycomb, Composite Structures Vol. 44 (1999), pp.237-252.

DOI: 10.1016/s0263-8223(98)00123-8

Google Scholar

[7] Jin Dai and H. Thomas Hahn: Fatigue Analysis of Sandwich Beams Using a Wear-out Model, Journal of Composite Materials Vol. 38 (2004), pp.581-589.

DOI: 10.1177/0021998304042398

Google Scholar

[8] A. El Mahi, M. Khawar Farooq, S. Sahraoui and A. Bezazi: Modelling the flexural behaviour of sandwich composite materials under cyclic fatigue, Materials and Design Vol. 25 (2004), pp.199-208.

DOI: 10.1016/j.matdes.2003.09.022

Google Scholar

[9] H. A. Whitworth: Evaluation of the residual strength degradation in composite laminates under fatigue loading, Composite Structures Vol. 48 (2000), pp.261-264.

DOI: 10.1016/s0263-8223(99)00113-0

Google Scholar

[10] K. Kanny and H. Mahfuz: Flexural fatigue characteristics of sandwich structures at different loading frequencies, Composite Structures Vol. 67 (2005), pp.403-410.

DOI: 10.1016/j.compstruct.2004.01.021

Google Scholar

[11] S. Belouettar, A. Abbadi, Z. Azari, R. Belouettar and P. Freres: Experimental investigation of static and fatigue behaviour of composites honeycomb materials using four point bending tests, Composite Structures Vol. 87 (2009), pp.265-273.

DOI: 10.1016/j.compstruct.2008.01.015

Google Scholar

[12] A. Abbadi, Z. Azari, S. Belouettar, J. Gilgert and P. Freres: Modelling the fatigue behaviour of composites honeycomb materials (aluminium/aramide fibre core) using four-point bending tests, International Journal of Fatigue Vol. 32 (2010).

DOI: 10.1016/j.ijfatigue.2010.01.005

Google Scholar
