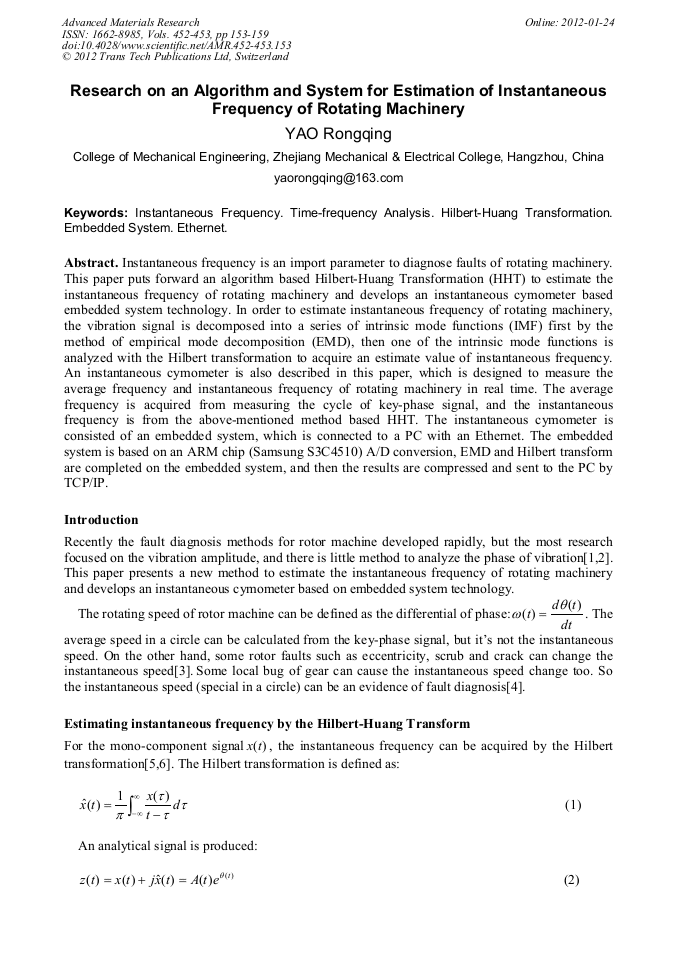

Research on an Algorithm and System for Estimation of Instantaneous Frequency of Rotating Machinery

Abstract:

Instantaneous frequency is an import parameter to diagnose faults of rotating machinery. This paper puts forward an algorithm based Hilbert-Huang Transformation (HHT) to estimate the instantaneous frequency of rotating machinery and develops an instantaneous cymometer based embedded system technology. In order to estimate instantaneous frequency of rotating machinery, the vibration signal is decomposed into a series of intrinsic mode functions (IMF) first by the method of empirical mode decomposition (EMD), then one of the intrinsic mode functions is analyzed with the Hilbert transformation to acquire an estimate value of instantaneous frequency. An instantaneous cymometer is also described in this paper, which is designed to measure the average frequency and instantaneous frequency of rotating machinery in real time. The average frequency is acquired from measuring the cycle of key-phase signal, and the instantaneous frequency is from the above-mentioned method based HHT. The instantaneous cymometer is consisted of an embedded system, which is connected to a PC with an Ethernet. The embedded system is based on an ARM chip (Samsung S3C4510) A/D conversion, EMD and Hilbert transform are completed on the embedded system, and then the results are compressed and sent to the PC by TCP/IP.

• Periodical: Advanced Materials Research (Volumes 452-453)
• Pages: 153-159
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.452-453.153
• Online since: January 2012
• Authors: Rong Qing Yao
• Keywords: Embedded System, Ethernet, Hilbert-Huang Transformation, Instantaneous Frequency, Time-Frequency Analysis

References

[1] Alfonso Carlosena, Carlos Macua, and Miroslav Zivanovic. Instrument for the Measurement of the Instantaneous Frequency. IEEE Transactions on Instrumentation and Measurement , Vol. 49, No. 4, (2000), p.783: 789.

DOI: 10.1109/19.863925

[2] Hu Jingsong, Yang Shixi. The Influence of Filter on the Vibration Signals' EMD In Rotation Machinery. Fengji Jishu, Vol. 4(2002), pp.57-59.

[3] Han Jie, Zhang Ruilin. The fault mechanism and diagnosis technology for Rotating machinery. Machinery Industry Press(1997).

[4] Liu Yegang, Chen Kexing. Gear Fault Diagnosis by Transient Frequency Fluctuation Analysis. Journal of University of Science and Technology Beijing, Vol. 11 No. 1, (1989), pp.57-62.

[5] L. Cron, Bai Juxian. Time-Frequency Analysis: Theory and Applications. Xi'an Jiaotong University Press(1998).

[6] Zhang Xianda, Bao Zheng. Non stationary signal analysis and processing. National Defence Industry Press(1998).

[7] Norden E. Huang, Zheng Shen, Steven R. Long, et al. The empirical mode decomposition and the Hilbert spectrum for nonlinear and non-stationary time series analysis. Proc. R. Soc. Lond. A, 1998, 454: 903-995.

DOI: 10.1098/rspa.1998.0193

[8] Zhong Youming, Qin Shuren, Tang Baoping. Study on a New Transform Method for Vibration Signal. Journal of Vibration Engineering, Vol. 15 No. 2, (2002), pp.233-238.

[9] Peng Z K, Tse P W, Chu F L. An improved Hilbert-Huang transform and its application in vibration signal analysis. Journal of Sound and Vibration, Vol. 286(1-2)(2005), pp.187-205.

DOI: 10.1016/j.jsv.2004.10.005

[10] Kacha A, Grenez F, Benmahammed K. Time-frequency analysis and instantaneous frequency estimation using tow-sided linear prediction. Signal Processing, Vol. 85(3) (2005), pp.491-503.

DOI: 10.1016/j.sigpro.2004.10.015
