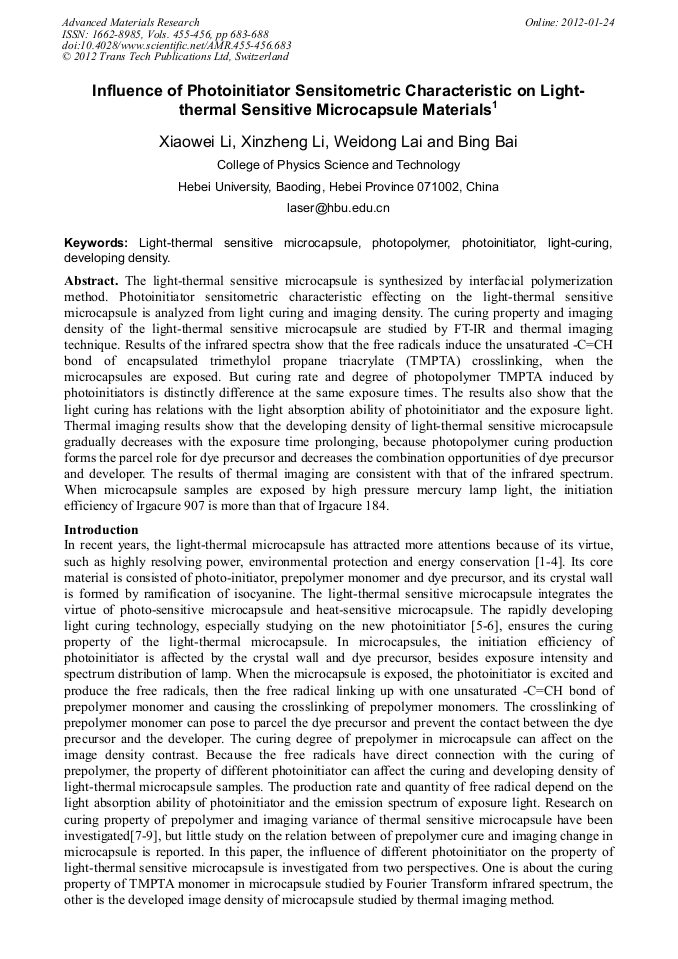

Influence of Photoinitiator Sensitometric Characteristic on Light-Thermal Sensitive Microcapsule Materials

Abstract:

The light-thermal sensitive microcapsule is synthesized by interfacial polymerization method. Photoinitiator sensitometric characteristic effecting on the light-thermal sensitive microcapsule is analyzed from light curing and imaging density. The curing property and imaging density of the light-thermal sensitive microcapsule are studied by FT-IR and thermal imaging technique. Results of the infrared spectra show that the free radicals induce the unsaturated-C=CH bond of encapsulated trimethylol propane triacrylate (TMPTA) crosslinking, when the microcapsules are exposed. But curing rate and degree of photopolymer TMPTA induced by photoinitiators is distinctly difference at the same exposure times. The results also show that the light curing has relations with the light absorption ability of photoinitiator and the exposure light. Thermal imaging results show that the developing density of light-thermal sensitive microcapsule gradually decreases with the exposure time prolonging, because photopolymer curing production forms the parcel role for dye precursor and decreases the combination opportunities of dye precursor and developer. The results of thermal imaging are consistent with that of the infrared spectrum. When microcapsule samples are exposed by high pressure mercury lamp light, the initiation efficiency of Irgacure 907 is more than that of Irgacure 184.

• Periodical: Advanced Materials Research (Volumes 455-456)
• Pages: 683-688
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.455-456.683
• Online since: January 2012
• Authors: Xiao Wei Li, Xin Zheng Li, Wei Dong Lai, Bing Bai
• Keywords: Developing Density, Light-Curing, Light-Thermal Sensitive Microcapsule, Photoinitiator, Photopolymer

References

[1] E N Brown, S R White, N R Sottos, Microcapsule induced toughening in a self-healing polymer composite, Journal of Materials Science, vol. 39, no. 5, pp.1703-1710, March (2004).

DOI: 10.1023/b:jmsc.0000016173.73733.dc

[2] X W Li, X L Jiang, W D Lai, et al, Investigation of a Light-thermal Sensitive Imaging System Based on the Microcapsule Technique, Journal of Imaging Science and Technology, Vol. 51, no. 2, pp.122-126, February (2007).

DOI: 10.2352/j.imagingsci.technol.(2007)51:2(122)

[3] G Q Li, J B Guo, X W, et al, Microencapsulation of a functional dye and its UV crosslinking controlled releasing behavior, Journal of Polymer Science Part A: Polymer Chemistry, vol. 47, no. 14, pp.3630-3639, July (2009).

DOI: 10.1002/pola.23434

[4] X Wang, G Q Li, J Wei, W W Guan, A novel method to control microcapsule release behavior via photo-crosslink polyurethane acrylate shells, Journal of Applied Polymer Science, vol. 113, no. 2, pp.1008-1016, July (2009).

DOI: 10.1002/app.29604

[5] X M Tan, H Q Xie, N Y Huang, Preparation and photosensitivity of water soluble phenolic resins containing acrryloyl and quaternary ammonium, Chinese Journal of Polymer Science, vol. 20, no. 2, pp.129-136, April (2002).

[6] T Xu, W Yuan, S J Wang, Synthesis of polyurethane modified bismaleimide(UBMI) and polyurethane-imide elastomer, Chinese Journal of Polymer Science, vol. 26, no. 1, pp.117-119, January (2008).

DOI: 10.1142/s0256767908002741

[7] X Y Hu, X Y Zhang, H F Sheng, et al, Separating TDI from polyurethane prepolymer with molecular distillation apparatus, Journal of Chemical Engineering of Chinese Universities, Vol. 19, no. 4, pp.197-201, April (2005).

[8] B W Huang, B F Huang, G P Du, et al, Synthesis of a novel UV-curable prepolymer polypropyleneglycol diglycidyl ether diacrylate, Journal of Wuhan University of Technology-Mater. Sci. Ed., vol. 23, no. 4, pp.495-498, December (2008).

DOI: 10.1007/s11595-006-4495-y

[9] Q W Song, Y Li, J W Xing, et al, ThermalsTableility of composite phase change material microcapsules incorporated with silver nano-particles, Polymer, Vol. 48, no 11, pp.3317-3323, May (2007).

DOI: 10.1016/j.polymer.2007.03.045
