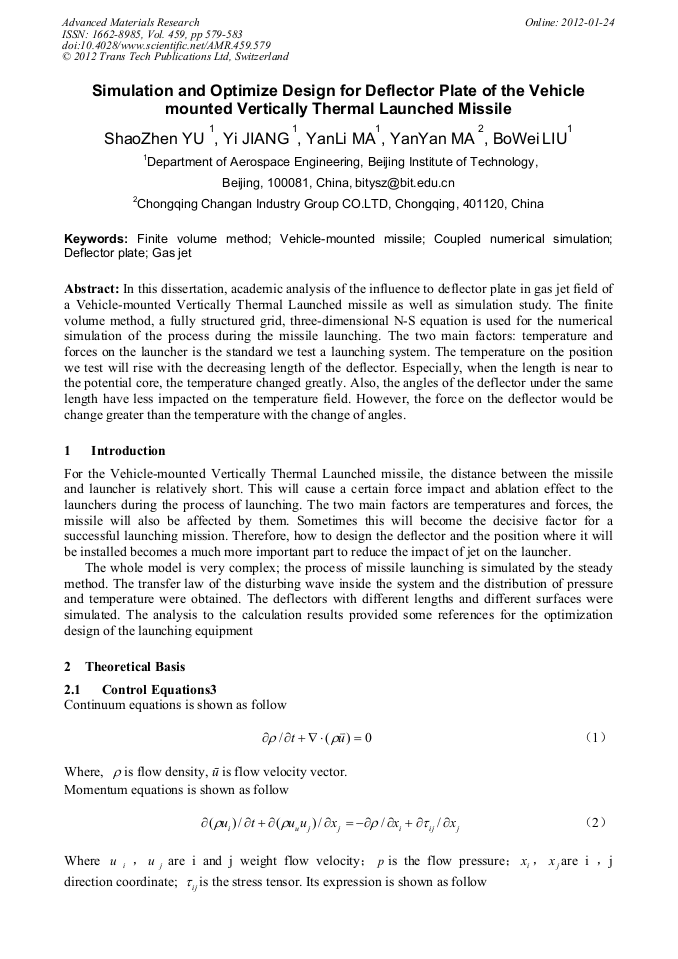

Simulation and Optimize Design for Deflector Plate of the Vehicle Mounted Vertically Thermal Launched Missile

Abstract:

In this dissertation, academic analysis of the influence to deflector plate in gas jet field of a Vehicle-mounted Vertically Thermal Launched missile as well as simulation study. The finite volume method, a fully structured grid, three-dimensional N-S equation is used for the numerical simulation of the process during the missile launching. The two main factors: temperature and forces on the launcher is the standard we test a launching system. The temperature on the position we test will rise with the decreasing length of the deflector. Especially, when the length is near to the potential core, the temperature changed greatly. Also, the angles of the deflector under the same length have less impacted on the temperature field. However, the force on the deflector would be change greater than the temperature with the change of angles

• Periodical: Advanced Materials Research (Volume 459)
• Pages: 579-583
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.459.579
• Online since: January 2012
• Authors: Shao Zhen Yu, Yi Jiang, Yan Li Ma, Yan Yan Ma, Bo Wei Liu
• Keywords: Coupled Numerical Simulation, Deflector Plate, Finite Volume Method (FVM), Gas Jet, Vehicle-Mounted Missile

References

[1] ZHAO Cheng-qing, JIANG Yi. "The Dynamics of the Jet Flow. The publishing company of the Beijing institute of the technology, in press.

[2] S. Armsfield and R. Street. The fractional-step method for the Navier-Stokes equations on staggered grids: accuracy of three variations. , Journal of Computational Physics, vol. 153, pp.660-665, (1999).

DOI: 10.1006/jcph.1999.6275

[3] WANG Fu-jun. "The computational fluid dynamic. The publishing company of the Tsinghua University, in press.

[4] LI Jun, CAO Cong-yong. XU Qiang. Numerical simulation the form and development of rocket gas near flow field., Journal of Propulsion Technology, vol. 24, no. 5, pp.410-413, (2003).

[5] ZHANG Fu-xiang "The Dynamics Of The Rocket Jet Flow. The publishing company of the Harbin Engineering University, in press.

[6] Yang Hongwei Ma Dawei Li Zhigang Le Guigao. Numerical Simulation Of Burning Gas Flow During Vertical Launch Of A Rocket, Journal of Propulsion Technology, vol. 19, no. 5, pp.61-65, (1998).

[7] Yans Yong; Zhans Fuxiang; Chao Chongyong; Li Jun, Numerical Simulation Of Rocket Jet Flow Impinging On An Oblique Plane , Journal of Ballistics, vol. 7 no. 3 pp.52-55, (1995).

[8] Yang Hongwei Ma Dawei Zhang Fuxiang. Numerical Simulation and Measure of Flow Field For Real Rocket Exhausted Plume, Experiments and MeasurentsIn Fluid Mechanics，vol. 12, no. 5, pp.82-86, (1998).

[9] Yu. N. Sadkov. Numerical Simulation of Supersonic Axisymmetric Gas Jets[J] Computational Mathematics and Modeling, 2004, 15, (4) . Appendix: Springer-Author Discount.

DOI: 10.1023/b:comi.0000047344.94959.bb
