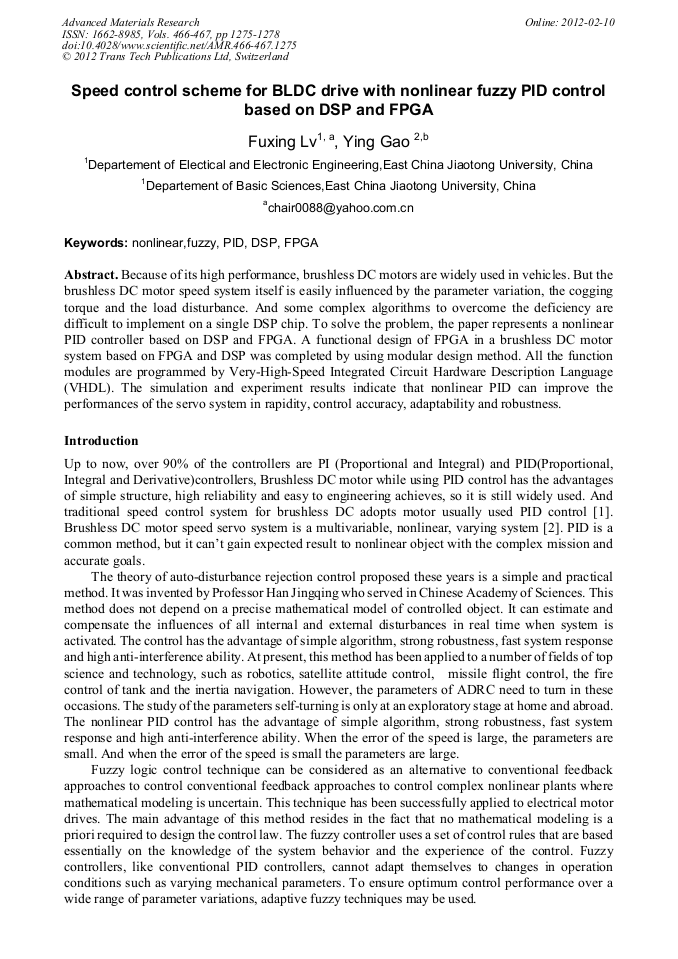

Speed Control Scheme for BLDC Drive with Nonlinear Fuzzy PID Control Based on DSP and FPGA

Abstract:

Because of its high performance, brushless DC motors are widely used in vehicles. But the brushless DC motor speed system itself is easily influenced by the parameter variation, the cogging torque and the load disturbance. And some complex algorithms to overcome the deficiency are difficult to implement on a single DSP chip. To solve the problem, the paper represents a nonlinear PID controller based on DSP and FPGA. A functional design of FPGA in a brushless DC motor system based on FPGA and DSP was completed by using modular design method. All the function modules are programmed by Very-High-Speed Integrated Circuit Hardware Description Language (VHDL). The simulation and experiment results indicate that nonlinear PID can improve the performances of the servo system in rapidity, control accuracy, adaptability and robustness.

• Periodical: Advanced Materials Research (Volumes 466-467)
• Pages: 1275-1278
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.466-467.1275
• Online since: February 2012
• Authors: Fu Xing Lv, Ying Gao
• Keywords: Digital Signal Processor (DSP), Field-Programmable Gate Array (FPGA), Fuzzy, Nonlinear, PID

References

[1] Suresh kumar. A, Subba Rao. M, Babu Y.S. K, Model reference linear adaptive control of DC motor using fuzzy controller, TENCON 2008-2008, TENCON 2008, IEEE Region 10 Conference, 19-21 Nov. 2008 Page(s): 1-5.

DOI: 10.1109/tencon.2008.4766484

[2] Buchnik. Y, Rabinovici. R, Speed and position estimation of brushless DC motor in very low speeds, Electrical and Electronics Engineers in Israel, 2004. Proceedings. 2004 23rd IEEE Convention. 2004, pp.317-230.

DOI: 10.1109/eeei.2004.1361155

[3] Limei Wang and Lorenz R D, Rotor position estimation for permanent magnet synchronous motor using saliency-tracking self-sensing methods, IEEE IAS Ammual Meeting, vol. 1 , pp.445-450, (2000).

DOI: 10.1109/ias.2000.881148

[4] Todd D. Batzel and Kwang Y. Lee, "Slotless permanent manet synchronous motor operaion without a high resolution rotor angle sensor, IEEE Trans. On Energy Conversion, vol. 15, no. 4, pp.366-371, (2000).

DOI: 10.1109/60.900494

[5] Tong cui, Fengxiang Wang , Zhonghua LIANG, and , Kai Li. Current harmunics reduction of square wave inverter by using adjustable filter for high speed motor power supply, The 11th International Conference on electrical Machines and Systems, 2008, p.408.
