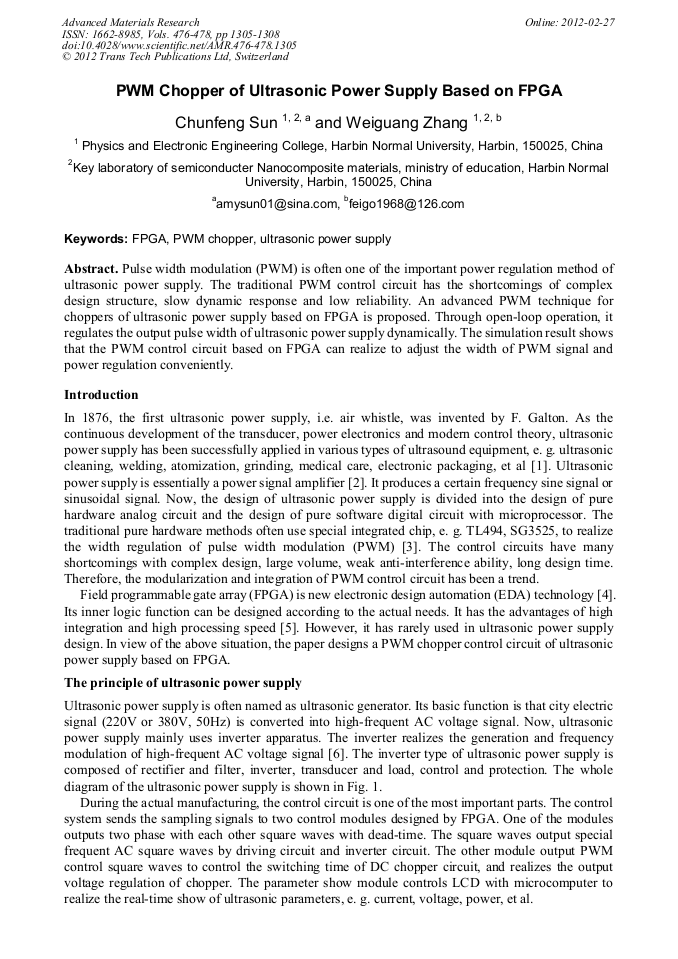

PWM Chopper of Ultrasonic Power Supply Based on FPGA

Abstract:

Pulse width modulation (PWM) is often one of the important power regulation method of ultrasonic power supply. The traditional PWM control circuit has the shortcomings of complex design structure, slow dynamic response and low reliability. An advanced PWM technique for choppers of ultrasonic power supply based on FPGA is proposed. Through open-loop operation, it regulates the output pulse width of ultrasonic power supply dynamically. The simulation result shows that the PWM control circuit based on FPGA can realize to adjust the width of PWM signal and power regulation conveniently.

• Periodical: Advanced Materials Research (Volumes 476-478)
• Pages: 1305-1308
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.476-478.1305
• Online since: February 2012
• Authors: Chun Feng Sun, Wei Guang Zhang
• Keywords: Field-Programmable Gate Array (FPGA), PWM Chopper, Ultrasonic Power Supply

References

[1] L. Jiang, H. Y. Li and F. L. Wang. Piezoelectectrics & Acoustooptics, Vol. 31, Issue 5, (2009), pp.357-359, 363 (in Chinese)

[2] Q. M. Li, L. Zhu, F. L. Wang. International Symposium on High Density Packaging and Microsystem Integration (2007), pp.1-4

[3] M. Monfared, H. Rastegar, H. M. Kojabadi. Energy Conversion and Management, Vol. 51, Issue 5, (2010), pp.947-954

DOI: 10.1016/j.enconman.2009.11.034

[4] R. Marzotto, et al. Computer Vision and Image Understanding, Vol. 114, Issue 11, (2010), pp.1164-1179

[5] Y. F. Gu, T. Vancourt, M. C. Herbordt. Parallel Computing, Vol. 34, Issue 4-5, (2008), pp.261-277

[6] J. L. Pei, P. Zhou and B. C. Che. Pipeline Technique and Equipment, Vol. 2 (2008), pp.51-52 (in Chinese)
