Thermal Oxidation Behavior of TiAlCrSiN and AlCrTiN Films on HastelloyX

K. Tuchida; Kessaraporn Wathanyu; S. Surinphong

doi:10.4028/www.scientific.net/AMR.486.400

Paper Titles

Properties of Porous Asphalt Mixture Made with Styrene Butadiene Styrene under Long Term Oven Ageing
p.378

Study on the Dyeing Properties of Poly(Lactic Acid) and Silk Yarns with Natural Dyes
p.384

Preparation of the Novel Nanocomposite Biurea/Montmorillonite via In Situ Synthesis
p.388

Combined Effects between Functionalized Multi-Walled Carbon Nanotubes and Cigarette Smoke on Human Bronchial Epithelial Cells
p.394

Thermal Oxidation Behavior of TiAlCrSiN and AlCrTiN Films on HastelloyX
p.400

Polylactic Acid/Impact Modifier Blends
p.406

Synthesis of FePt Nanocubes Using Mo(Co)₆ as a Reducing Agent and their Magnetic Properties
p.412

Preparation and Properties of Multiferroic La-Doped BiFeO₃ Thin Film
p.417

Effect of Nano Biphasic Calcium Phosphate Bioceramics on Periodontal Regeneration in the Treatment of Alveolar Defects
p.422

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 486Thermal Oxidation Behavior of TiAlCrSiN and...

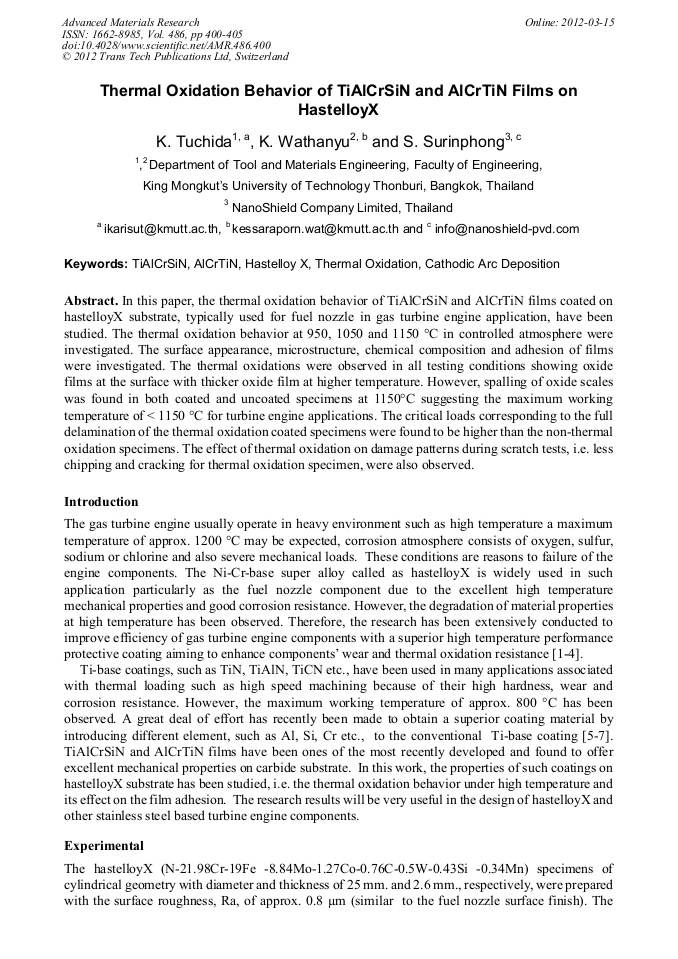

Thermal Oxidation Behavior of TiAlCrSiN and AlCrTiN Films on HastelloyX

Abstract:

In this paper, the thermal oxidation behavior of TiAlCrSiN and AlCrTiN films coated on hastelloyX substrate, typically used for fuel nozzle in gas turbine engine application, have been studied. The thermal oxidation behavior at 950, 1050 and 1150 °C in controlled atmosphere were investigated. The surface appearance, microstructure, chemical composition and adhesion of films were investigated. The thermal oxidations were observed in all testing conditions showing oxide films at the surface with thicker oxide film at higher temperature. However, spalling of oxide scales was found in both coated and uncoated specimens at 1150°C suggesting the maximum working temperature of < 1150 °C for turbine engine applications. The critical loads corresponding to the full delamination of the thermal oxidation coated specimens were found to be higher than the non-thermal oxidation specimens. The effect of thermal oxidation on damage patterns during scratch tests, i.e. less chipping and cracking for thermal oxidation specimen, were also observed.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 486)

Pages:

400-405

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.486.400

Citation:

Cite this paper

Online since:

March 2012

Authors:

K. Tuchida, Kessaraporn Wathanyu, S. Surinphong

Keywords:

AlCrTiN, Cathodic Arc Deposition, Hastelloy X, Thermal Oxidation, TiAlCrSiN

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] W.Z. Friend : Corrosion of Nickel and Nickel-Base Alloys, John Wiley & Sons, Inc. (1980).

Google Scholar

[2] M. Hetmanczyk, L. Swadzba and B. Mendala : Journal of Achievements in Materials and Manufacturing Engineering Vol. 24 Issue 1(2007), pp.372-381.

Google Scholar

[3] R.A. Mahesh, R. Jayaganthan and S. Prakash : Journal of Materias Processing Technology 09 (2009), pp.3501-3510.

Google Scholar

[4] N. Eliaz, G. Shemesh and R.M. Latanision : Engineering Failure Analysis 9 (2002), pp.31-43.

Google Scholar

[5] C.L. Chang, J.W. Lee and M.D. Tseng : Thin Solid Films 517 (2009), pp.5231-5236.

Google Scholar

[6] Y.Y. Chang, C.P. Chang, D.Y. Wang, S.M. Yang and W. Wu : Journal of Alloy and Compounds 461 (2008), pp.361-341.

Google Scholar

[7] T.D. Nguyen, S.K. Kim and D.B. Lee : Surface & Coating Technology 204 (2009), pp.697-704.

Google Scholar

[8] H. Cho, D.M. Lee, J.H. Lee, K.H. Bang and B.W. Lee : Surface & Coating Technoogy 202 (2008), pp.5625-5628.

Google Scholar

[9] P.R. Roberge : Corrosion Engineering Principles and Practice, MC Graw Hill (2008).

Google Scholar
