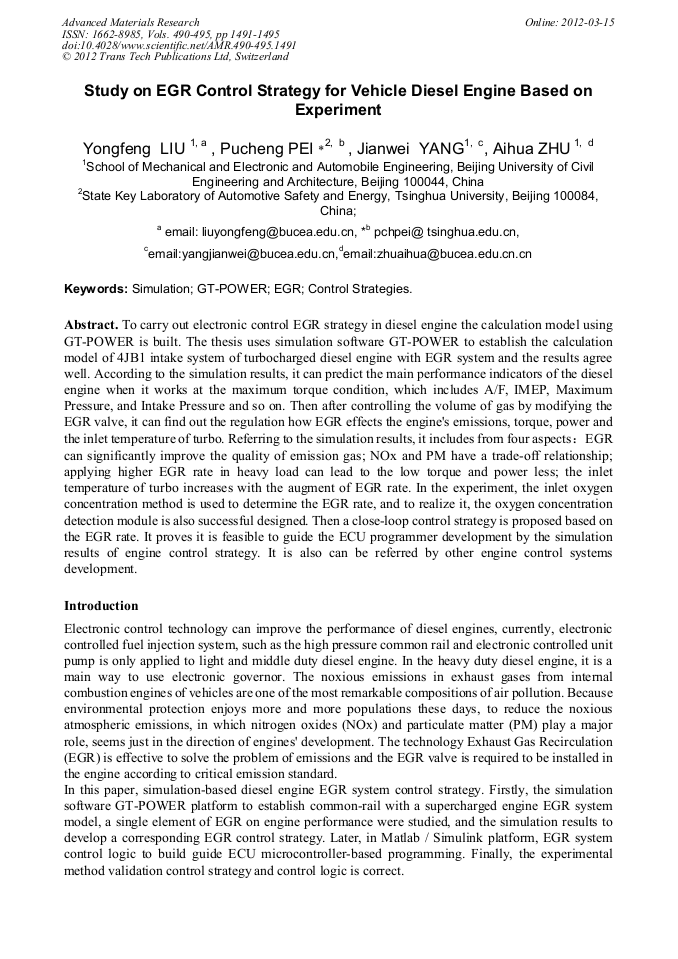

Study on EGR Control Strategy for Vehicle Diesel Engine Based on Experiment

Abstract:

To carry out electronic control EGR strategy in diesel engine the calculation model using GT-POWER is built. The thesis uses simulation software GT-POWER to establish the calculation model of 4JB1 intake system of turbocharged diesel engine with EGR system and the results agree well. According to the simulation results, it can predict the main performance indicators of the diesel engine when it works at the maximum torque condition, which includes A/F, IMEP, Maximum Pressure, and Intake Pressure and so on. Then after controlling the volume of gas by modifying the EGR valve, it can find out the regulation how EGR effects the engine's emissions, torque, power and the inlet temperature of turbo. Referring to the simulation results, it includes from four aspects：EGR can significantly improve the quality of emission gas; NOx and PM have a trade-off relationship; applying higher EGR rate in heavy load can lead to the low torque and power less; the inlet temperature of turbo increases with the augment of EGR rate. In the experiment, the inlet oxygen concentration method is used to determine the EGR rate, and to realize it, the oxygen concentration detection module is also successful designed. Then a close-loop control strategy is proposed based on the EGR rate. It proves it is feasible to guide the ECU programmer development by the simulation results of engine control strategy. It is also can be referred by other engine control systems development.

• Periodical: Advanced Materials Research (Volumes 490-495)
• Pages: 1491-1495
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.490-495.1491
• Online since: March 2012
• Authors: Yong Feng Liu, Pu Cheng Pei, Jian Wei Yang, Ai Hua Zhu
• Keywords: Control Strategy, EGR, GT-Power, Simulation

References

[1] LIU Yongfeng，Study on 3-D Computer Aided Design for the Small Bore Directed-injection Engine Combustion System，MACE 2011，2011. 7，704-706.

[2] Dirk Grosschmidt, Peter Habisreuther and Henning Bockhorn， Calculation of the size distribution function of soot particles in turbulent diffusion flames，Proceeding of the combustion institute 31 (2007), 657-665.

DOI: 10.1016/j.proci.2006.07.213

[3] Feng Tao, David E. Foster and Rolf D. Reitz , Characterization of soot particle distribution in conventional, non-premixed DI diesel flame using a multi-step phenomenological soot model, Proceeding of the combustion institute 31(2007), 2991-2998.

DOI: 10.1016/j.proci.2006.08.005

[4] LIU Yongfeng PEI Pucheng, Analysis on Ignition and Extinction of n-Heptane in Homogeneous Systems, Science in China[J], 2005. 10; 556～569.

[5] K. Verbiezen, R.J.H. Klein-Douwel, A.P. van Vliet, A.J. Donkerbroek, W.L. Meerts, N.J. Dam and J.J. ter Meulen, Quantitative laser-induced fluorescence measurements of nitric oxide in a heavy-duty Diesel engine, Proceeding of the combustion institute 31 (2007).

DOI: 10.1016/j.proci.2006.07.061

[6] LIU Yongfeng，A Phenomenological Model for Prediction Auto-Ignition and Soot Formation of Turbulent Diffusion Combustion in a High Pressure Common Rail Diesel Engine, Energies, VOL 4, 2011. 6，894-912.

DOI: 10.3390/en4060894

[7] Yongfeng LIU, Optimization research for a high pressure common rail diesel engine based on simulation, International Journal of Automotive Technology, Vol. 11, No. 5: 625-636, (2010).

DOI: 10.1007/s12239-010-0075-4
