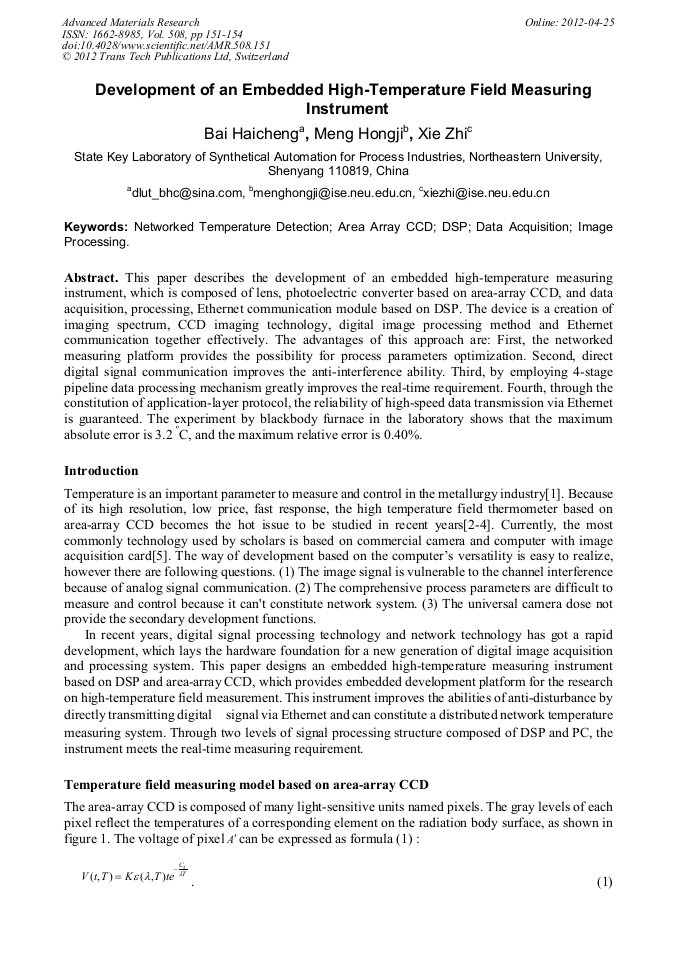

Development of an Embedded High-Temperature Field Measuring Instrument

Abstract:

This paper describes the development of an embedded high-temperature measuring instrument, which is composed of lens, photoelectric converter based on area-array CCD, and data acquisition, processing, Ethernet communication module based on DSP. The device is a creation of imaging spectrum, CCD imaging technology, digital image processing method and Ethernet communication together effectively. The advantages of this approach are: First, the networked measuring platform provides the possibility for process parameters optimization. Second, direct digital signal communication improves the anti-interference ability. Third, by employing 4-stage pipeline data processing mechanism greatly improves the real-time requirement. Fourth, through the constitution of application-layer protocol, the reliability of high-speed data transmission via Ethernet is guaranteed. The experiment by blackbody furnace in the laboratory shows that the maximum absolute error is 3.2 ^ºC, and the maximum relative error is 0.40%.

• Periodical: Advanced Materials Research (Volume 508)
• Pages: 151-154
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.508.151
• Online since: April 2012
• Authors: Hai Cheng Bai, Hong Ji Meng, Zhi Xie
• Keywords: Area Array CCD, Data Acquisition, Digital Signal Processor (DSP), Image Processing, Networked Temperature Detection

References

[1] E. Renier, F. Meriaudeau. P. Suzeau. F. Truchetet, CCD temperature imaging applications in steel industry. Industrial Electronics, Control, and Instrumentation, Proceedings of the 1996 IEEE IECON 22rd International Conference, Vol. 2, 1996, pp.1295-1300.

DOI: 10.1109/iecon.1996.566066

[2] G. Sutter, L. Faure, A. Molinari, et al, An experimental technique for the measurement of temperature fields for the orthogonal cutting in high speed machining. International Journal of Machine Tools and Manufacture, Vol. 43 (7), 2003, pp.671-678.

DOI: 10.1016/s0890-6955(03)00037-3

[3] X. Q. Peng, J. Yan, Y. Sun, Design and Implementation of high-temperature field measuring instrumentation based on CCD image sensor. Chinese Journal of Sensors and Actuators, Vol. 23 (3), 2010, pp.354-358.

[4] X. F. Cheng, Y. Zhao, Design of a high temperature field measurement system using color inversion method. Chinese Journal of Scientific Instrument, Vol. 28 (1), 2007, pp.176-180.

[5] Y. Q. Ou, L. M. Zhao, D. F. Chen, CCD radiation temperature measurement method for hot continuous casting billet surface. Journal of Chongqing University, Vol. 34 (5), 2011, pp.59-64.

[6] Texas Instruments TMS320C600 CPU and Instruction Set Reference Guide (2000).

[7] X. Liang, SH. D. Xiong, Embedded Ethernet interface development with DM642. Computer Engineering, Vol. 33 (16), 2007, pp.277-279.
