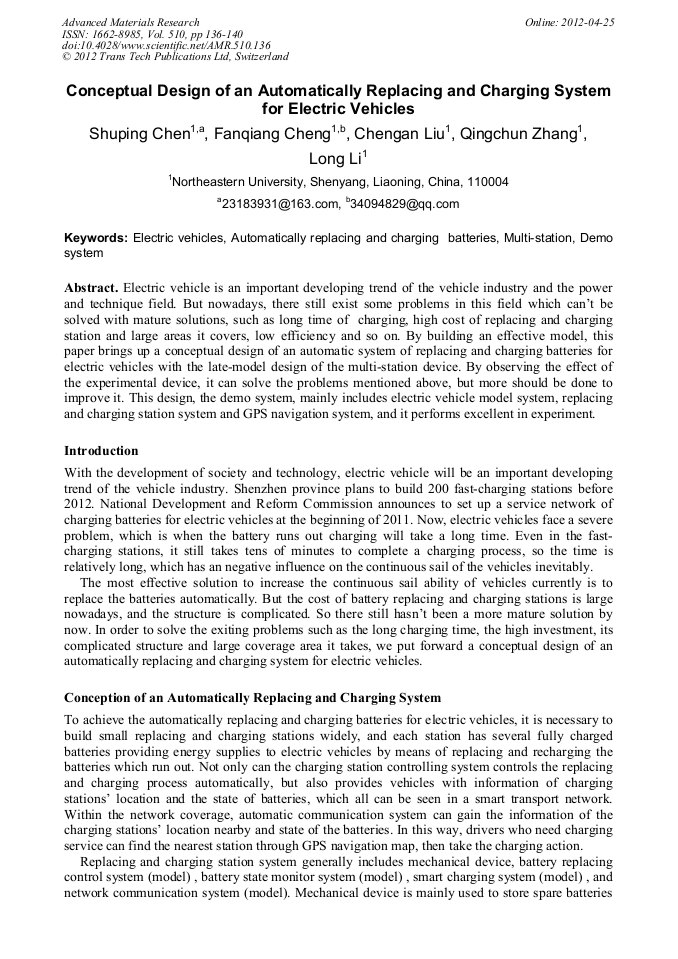

Conceptual Design of an Automatically Replacing and Charging System for Electric Vehicles

Abstract:

Electric vehicle is an important developing trend of the vehicle industry and the power and technique field. But nowadays, there still exist some problems in this field which cant be solved with mature solutions, such as long time of charging, high cost of replacing and charging station and large areas it covers, low efficiency and so on. By building an effective model, this paper brings up a conceptual design of an automatic system of replacing and charging batteries for electric vehicles with the late-model design of the multi-station device. By observing the effect of the experimental device, it can solve the problems mentioned above, but more should be done to improve it. This design, the demo system, mainly includes electric vehicle model system, replacing and charging station system and GPS navigation system, and it performs excellent in experiment.

• Periodical: Advanced Materials Research (Volume 510)
• Pages: 136-140
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.510.136
• Online since: April 2012
• Authors: Shu Ping Chen, Fan Qiang Cheng, Chen Gan Liu, Qing Chun Zhang, Long Li
• Keywords: Automatically Charging Batteries, Automatically Replacing Batteries, Demo System, Electric Vehicle (EV), Multi-Station

References

[1] D.X. Cheng: Handbook of Mechanical Design. Chemical Industry Press, Beijing (2007).

[2] Z.L. Sun, X.G. Ma: Machine Design. Northeastern University Press, Shenyang (2008).

[3] S.J. Li: Machine Theory of Machines and Mechanisms. Northeastern University Press, Shenyang (2000).

[4] S.L. Sun, Z.Q. Ma: Research on Gray-level Image Binarization Algorithms. Value Engineering. 9, 32-37 (2010).

[5] Y.J. Wang, J.H. Li: Digital Logic and Digital System. Electronic Industry Press, Beijing (2004).

[6] B.B. Shao: SCM online exploitation methods for embedded applications. Tsinghua University Press, Beijing (2007).
