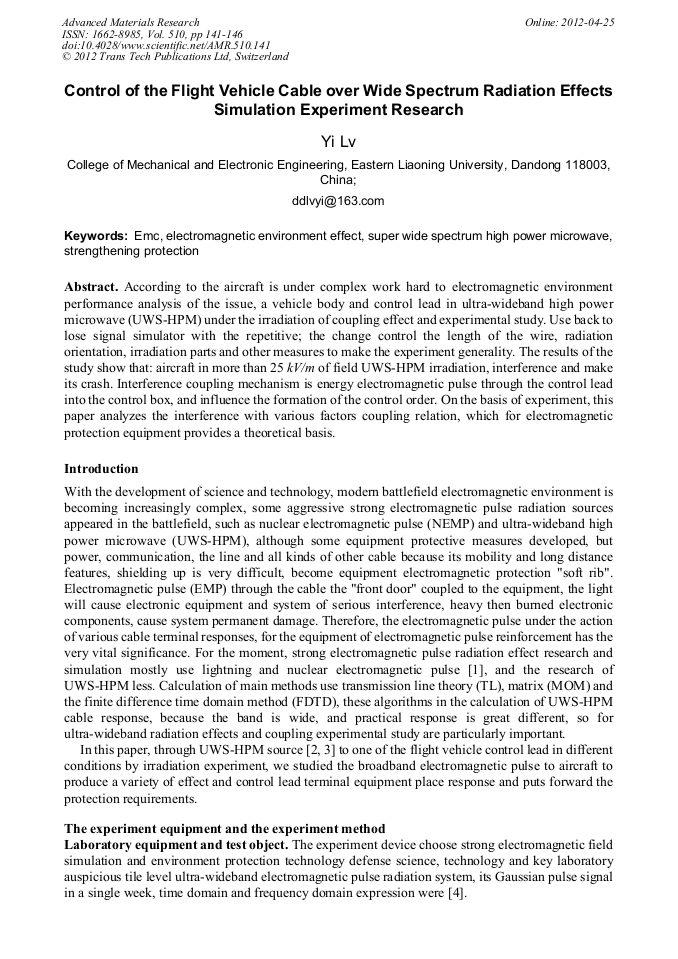

Control of the Flight Vehicle Cable over Wide Spectrum Radiation Effects Simulation Experiment Research

Abstract:

According to the aircraft is under complex work hard to electromagnetic environment performance analysis of the issue, a vehicle body and control lead in ultra-wideband high power microwave (UWS-HPM) under the irradiation of coupling effect and experimental study. Use back to lose signal simulator with the repetitive; the change control the length of the wire, radiation orientation, irradiation parts and other measures to make the experiment generality. The results of the study show that: aircraft in more than 25 kV/m of field UWS-HPM irradiation, interference and make its crash. Interference coupling mechanism is energy electromagnetic pulse through the control lead into the control box, and influence the formation of the control order. On the basis of experiment, this paper analyzes the interference with various factors coupling relation, which for electromagnetic protection equipment provides a theoretical basis.

• Periodical: Advanced Materials Research (Volume 510)
• Pages: 141-146
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.510.141
• Online since: April 2012
• Authors: Yi Lv
• Keywords: Electromagnetic Environment Effect, EMC, Strengthening Protection, Super Wide Spectrum High Power Microwave

References

[1] Greetsai V N. Response of long lines to nuclear high-altitude EM pulse [J]. IEEE Trans on EMC, 1998, 40(3): 348-354.

DOI: 10.1109/15.736221

[2] Andreev Y A, Gubanov V P, Eframon A M, et al. High-power ultra wideband electromagnetic pulse source [J]. IEEE Trans on Plasma Science, 2003, 17(3): 1458-1461.

[3] Wang Shaoguang, Wei Guanghui, Chen Yazhou, et al. Experiment research on the radiation effect of the UWS-HPM to radio fuze[J]. High Voltage Engineering, 2006, 32(11): 78-80.

[4] Zhao Jing, Zheng Jiyu, Lin Jiming, et al. UWB pulse signals and their interference on narrowband communication systems[J]. Journal of System Simulation, 2004, 16(2): 2872.

[5] Wang Shaoguang. Ultra-wideband radio fuze radiation effects and strengthening protection [D]. Shijiazhuang: Ordnance Engineering College, (2007).

[6] Zhang Yongqiang, Wei Guanghui, Sun Guozhi. Coupling effects of the EFT to aircraft's control line and protection approaches [J]. Journal of Ordnance Engineering College, 2008, 20(2): 36-38. (in Chinese).

[7] Jing Wentao. Missile cable aloft a nuclear blast electromagnetic pulse coupling effect research [D]. Changsha: National University of Defense Technology, (2004).
