A Detection System of Tool Condition Based on Image Processing Technology

Abstract:

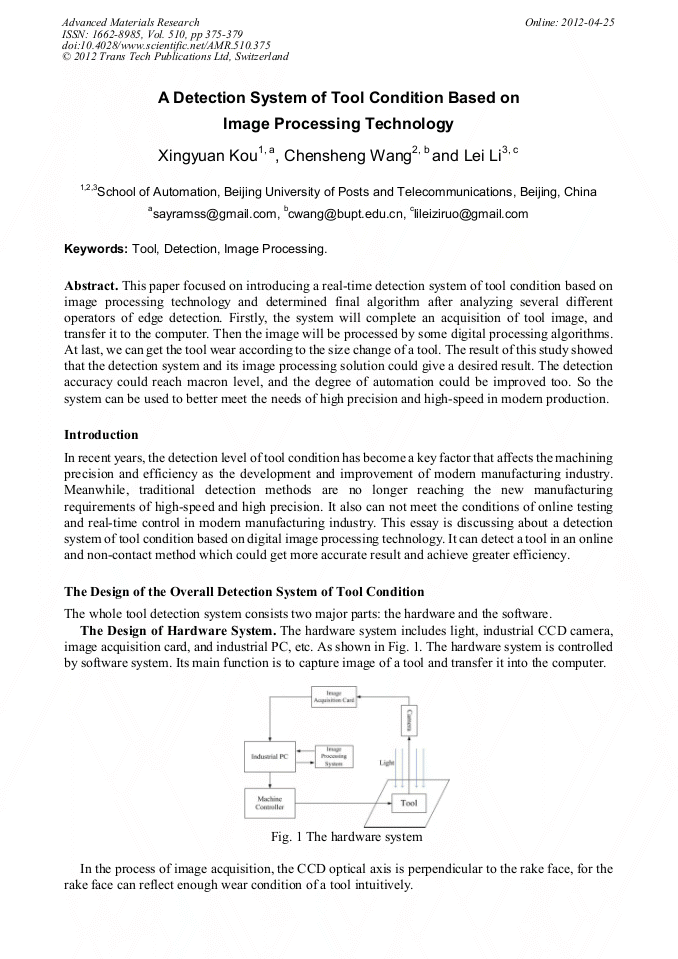

This paper focused on introducing a real-time detection system of tool condition based on image processing technology and determined final algorithm after analyzing several different operators of edge detection. Firstly, the system will complete an acquisition of tool image, and transfer it to the computer. Then the image will be processed by some digital processing algorithms. At last, we can get the tool wear according to the size change of a tool. The result of this study showed that the detection system and its image processing solution could give a desired result. The detection accuracy could reach macron level, and the degree of automation could be improved too. So the system can be used to better meet the needs of high precision and high-speed in modern production.
