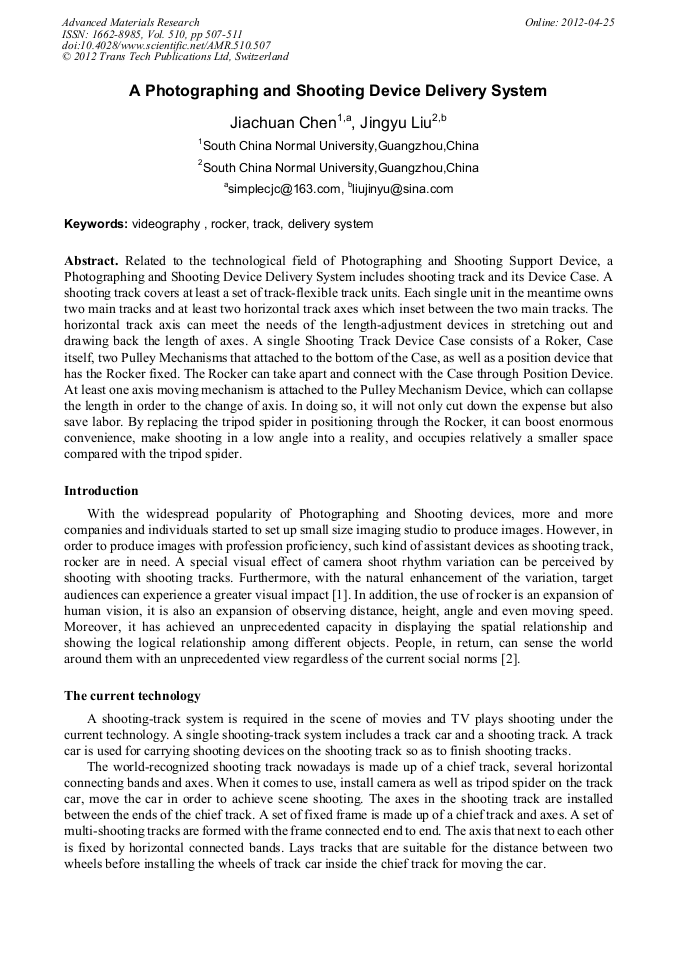

A Photographing and Shooting Device Delivery System

Abstract:

Related to the technological field of Photographing and Shooting Support Device, a Photographing and Shooting Device Delivery System includes shooting track and its Device Case. A shooting track covers at least a set of track-flexible track units. Each single unit in the meantime owns two main tracks and at least two horizontal track axes which inset between the two main tracks. The horizontal track axis can meet the needs of the length-adjustment devices in stretching out and drawing back the length of axes. A single Shooting Track Device Case consists of a Roker, Case itself, two Pulley Mechanisms that attached to the bottom of the Case, as well as a position device that has the Rocker fixed. The Rocker can take apart and connect with the Case through Position Device. At least one axis moving mechanism is attached to the Pulley Mechanism Device, which can collapse the length in order to the change of axis. In doing so, it will not only cut down the expense but also save labor. By replacing the tripod spider in positioning through the Rocker, it can boost enormous convenience, make shooting in a low angle into a reality, and occupies relatively a smaller space compared with the tripod spider.

• Periodical: Advanced Materials Research (Volume 510)
• Pages: 507-511
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.510.507
• Online since: April 2012
• Authors: Jia Chuan Chen, Jing Yu Liu
• Keywords: Delivery System, Rocker, Track, Videography

References

[1] Lv Ou: Videographic Techniques on Documentary Film. TV Research. (1997. 12), P. 51.

[2] Chen Hezhang, Chen Zhuo and Wan Xiangzhi: Study of Rocker Arm Videography. China Newspaper Industry. (2011. 07), P. 37.

[3] Chen Tianrong: The Principles of Industrial Products Design. Art Panorama. (2009. 10), P. 209.

[4] Wang Jinfeng, Li Zheng: The Fittingness Principle of Product Design. Art and Design (2011. 02), P. 208.
